Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LXD63S600A

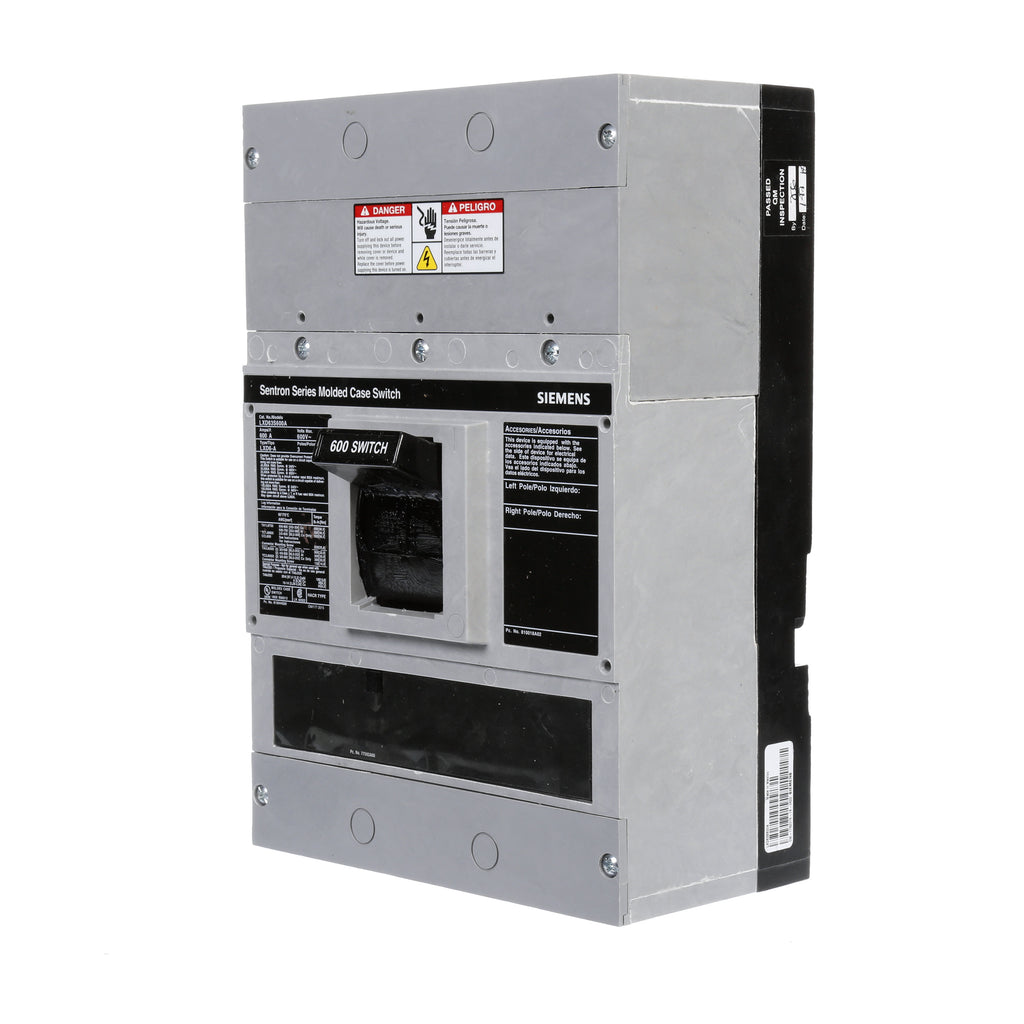

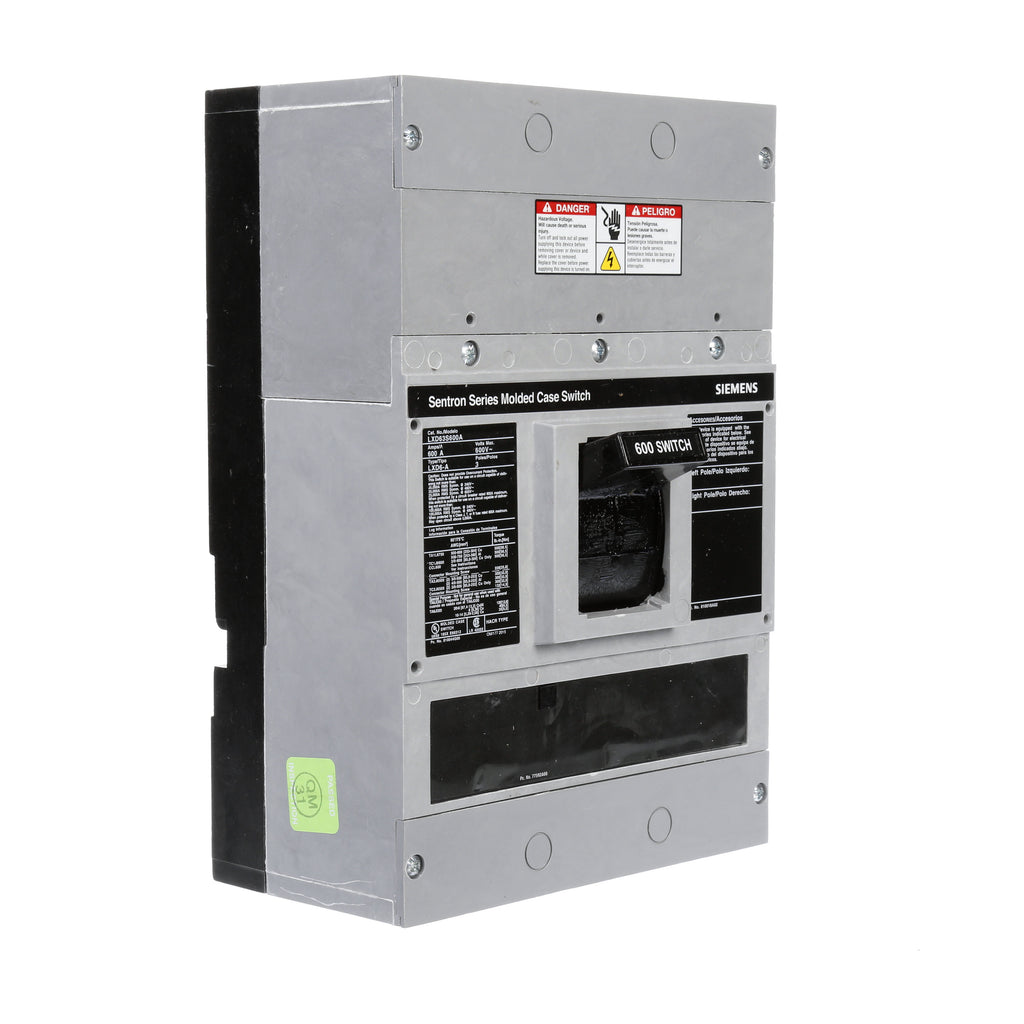

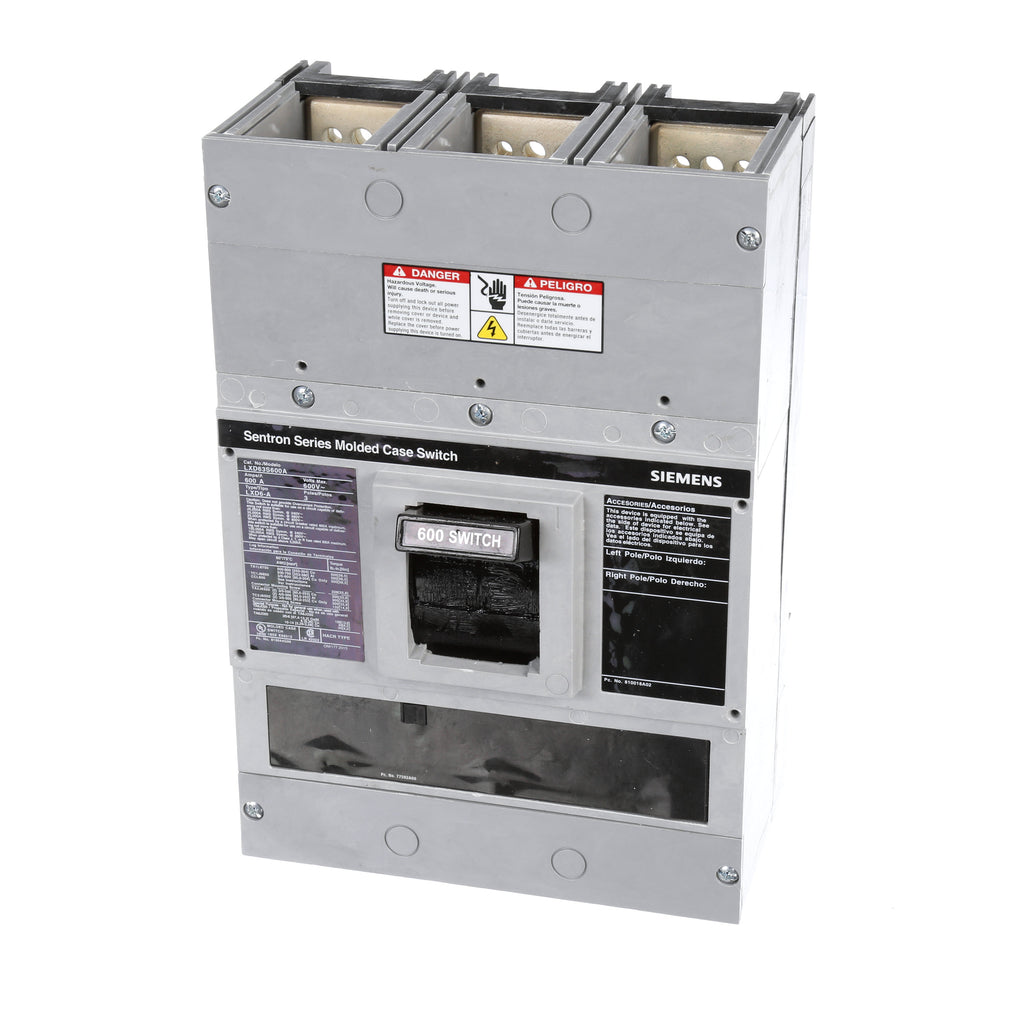

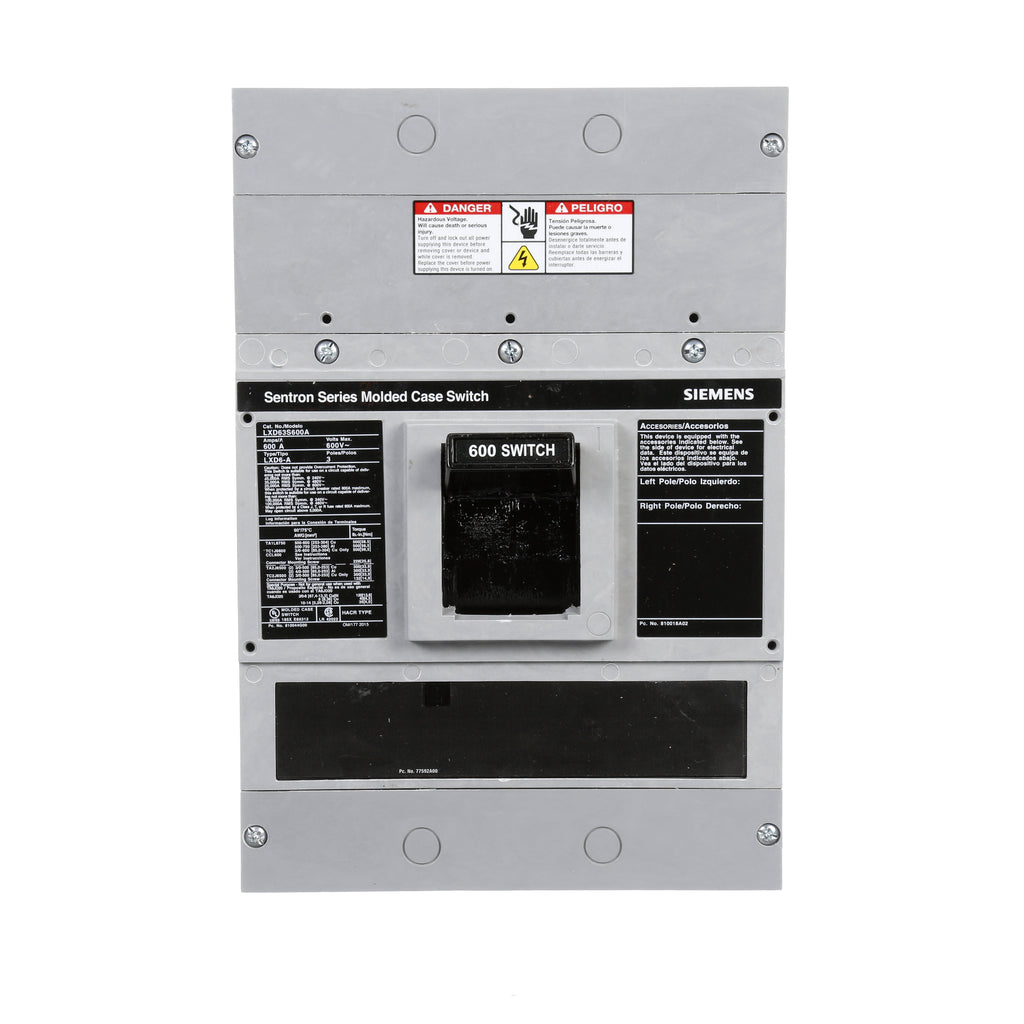

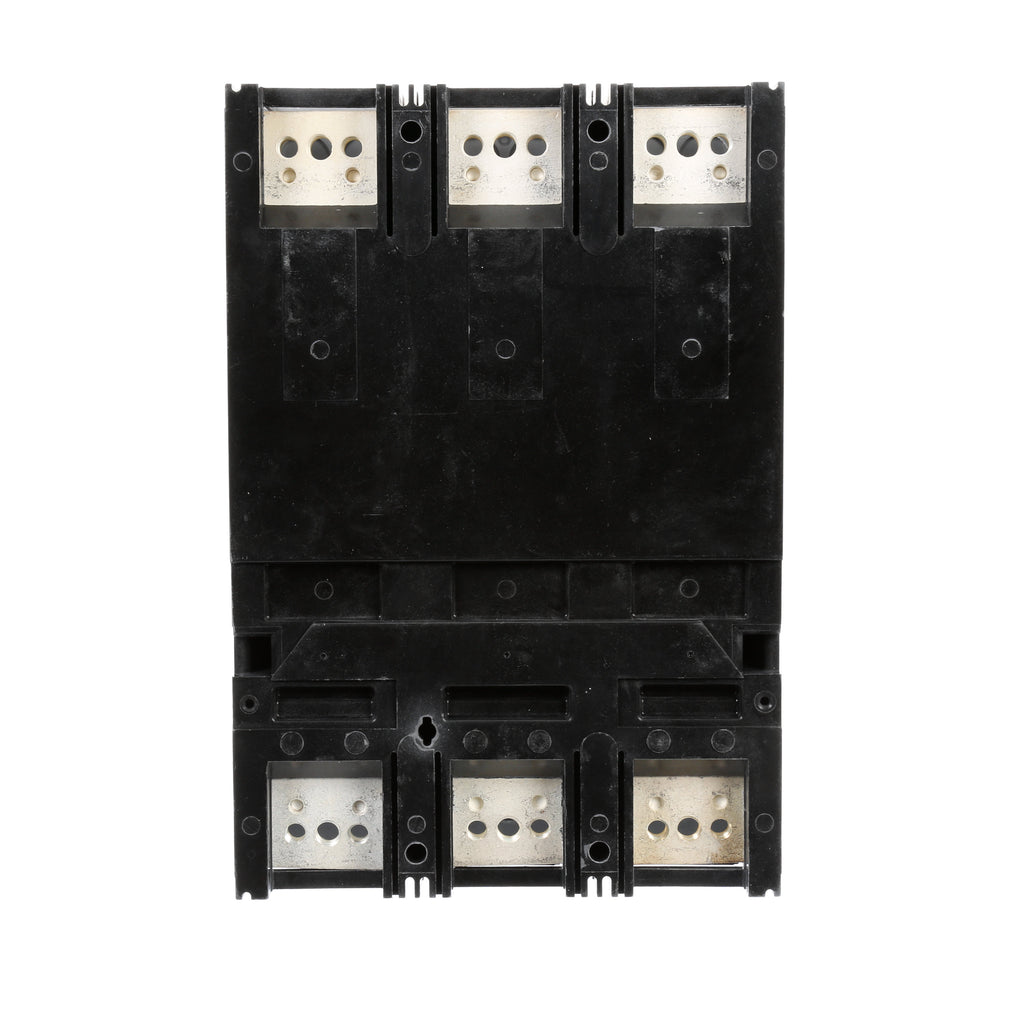

LXD63S600A is a Siemens Sentron series molded case circuit breaker designed for reliable low voltage power distribution.
This 3-pole, bolt-on circuit breaker is rated for 600A at 600VAC, featuring a 25 kA interrupting capacity and a long-time inverse (LI)/thermal magnetic trip unit. It is part of the LXD6 frame series, engineered for robust performance in commercial and industrial applications.
Key Specifications
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kA
- Series/Frame: LXD6
- Trip Unit: LI/Thermal Magnetic
- Certifications: Not specified in available data
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LXD63S600A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LXD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : LD Frame
- Temp Rating : -13¡F-158¡F
- Protection : Non-Automatic
Product Data
- UPC : 783643214378
- GTIN : 00783643214378
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.721
- Weight : 18.307
- Certification : Ul Listed
