LXD63L600 - Siemens 600A 600V 3-Pole Bolt-On Molded Case Circuit Breaker, LXD Frame, 35kAIC @ 480V, Meets UL 489 / IEC 60947-2

LXD63L600

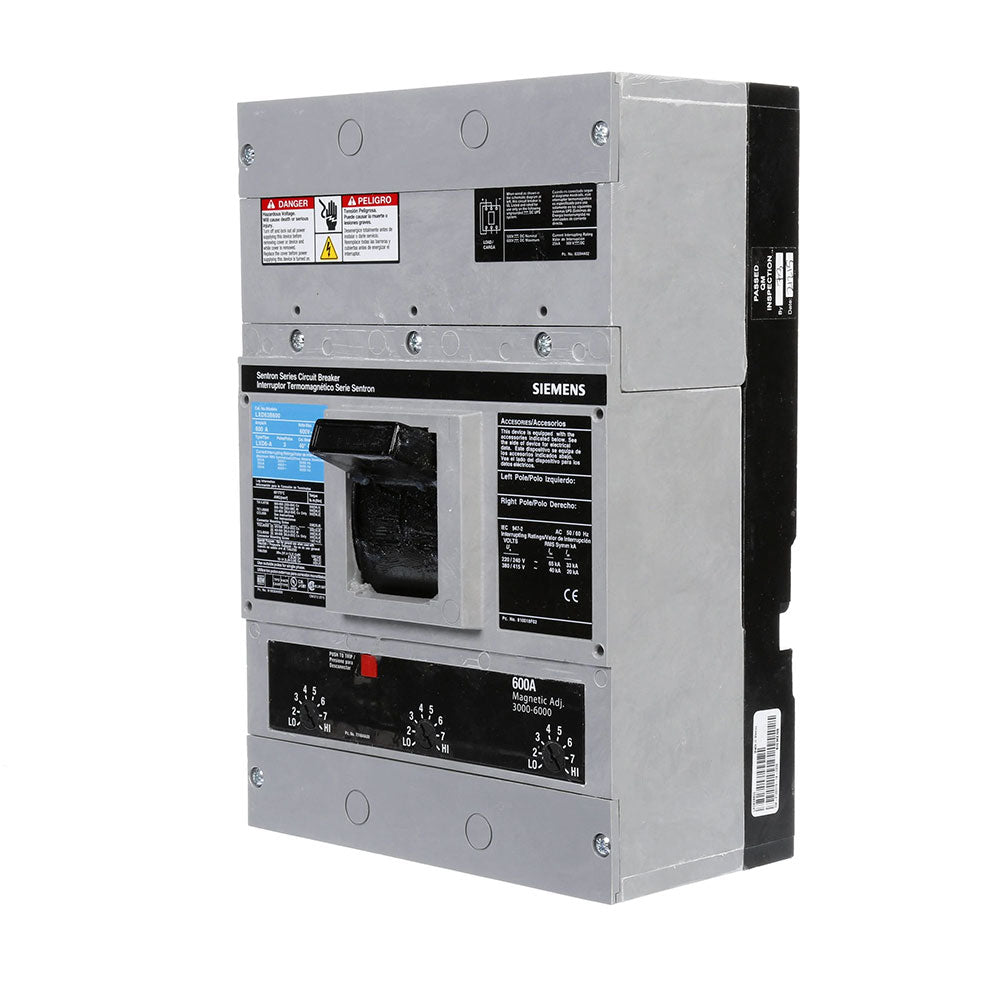

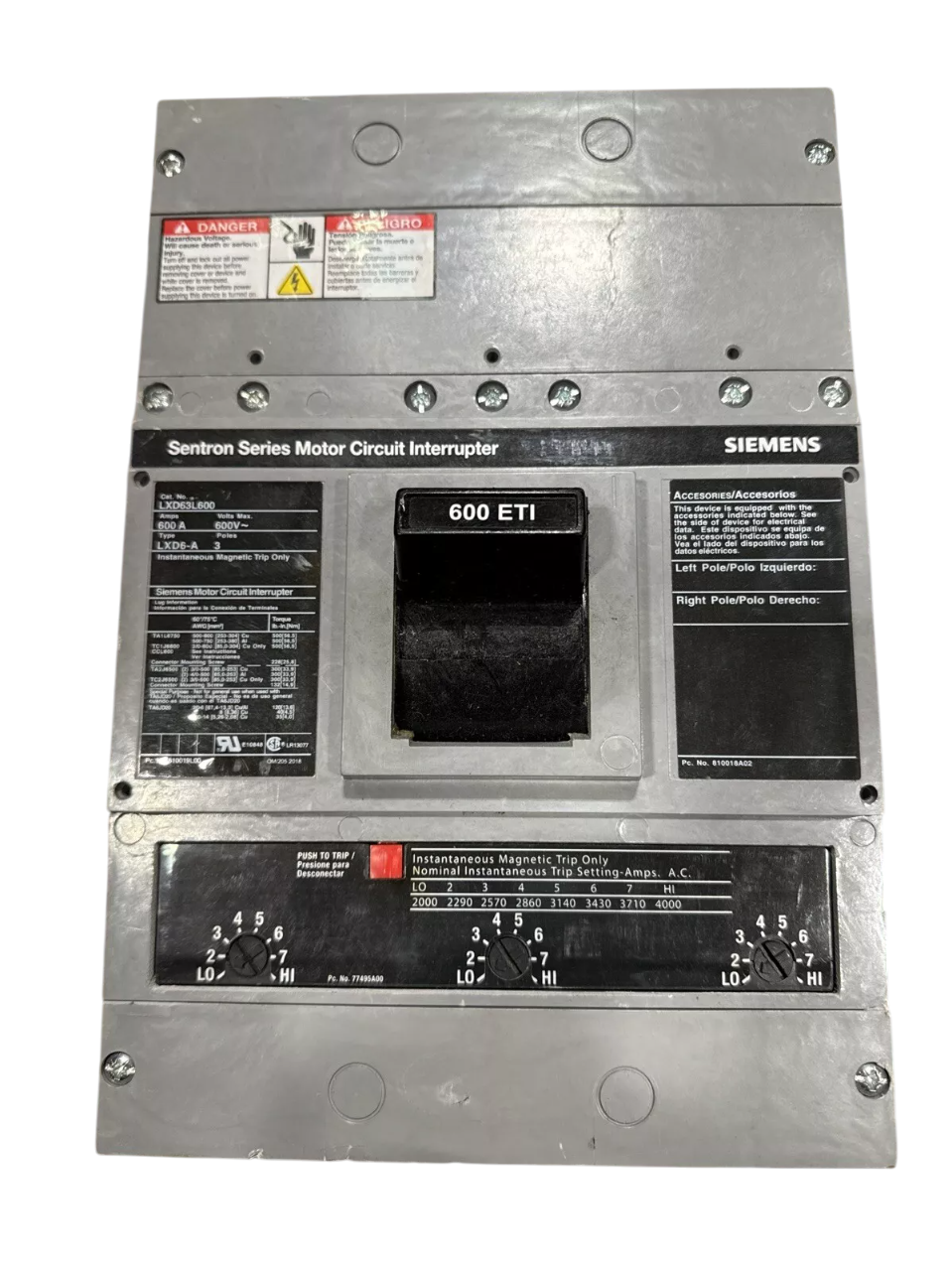

LXD63L600 is a Siemens 600A, 600V, 3-pole bolt-on molded case circuit breaker designed for robust power distribution applications.

This circuit breaker features a low instantaneous range ETI trip unit, non-interchangeable trip, and meets UL 489 and IEC 60947-2 standards for safety and performance. It is suitable for industrial and commercial installations requiring reliable overcurrent protection.

Key Specifications
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kAIC @ 480V, 25kAIC @ 600V
• Series/Frame: LXD
• Trip Unit: Low instantaneous range ETI, non-interchangeable
• Certifications: UL 489, IEC 60947-2
• Connection: Line and load side lugs (TA2J6500)
• Wire Range: 3/0 AWG to 500 kcmil
• Application: Industrial, commercial power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LXD63L600
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LXD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : LD Frame
• Temp Rating : -13¡F-158¡F
• Protection : Magnetic Only

Product Data

• UPC : 783643214316
• GTIN : 00783643214316
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.716
• Weight : 15.201
• Certification : Ul Listed
