LXD63B450 - Siemens 450 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker

LXD63B450

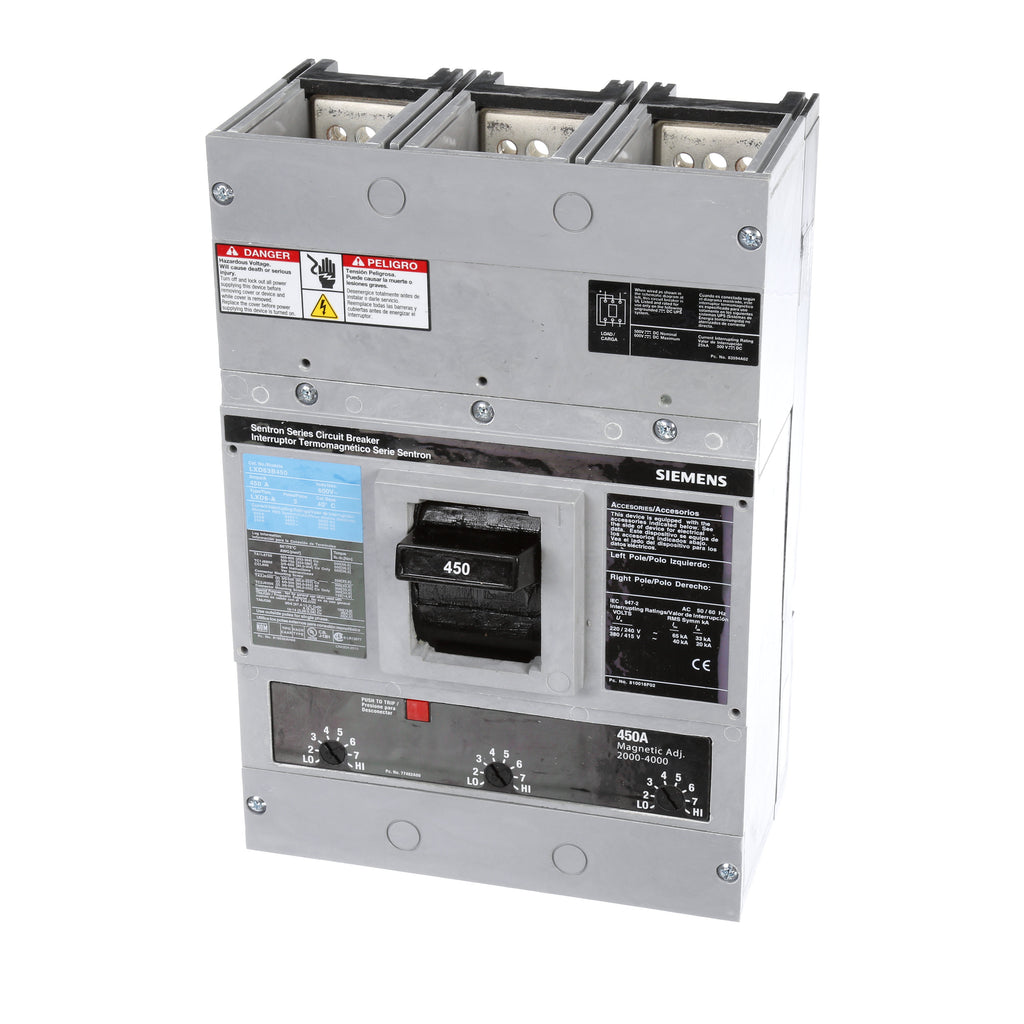

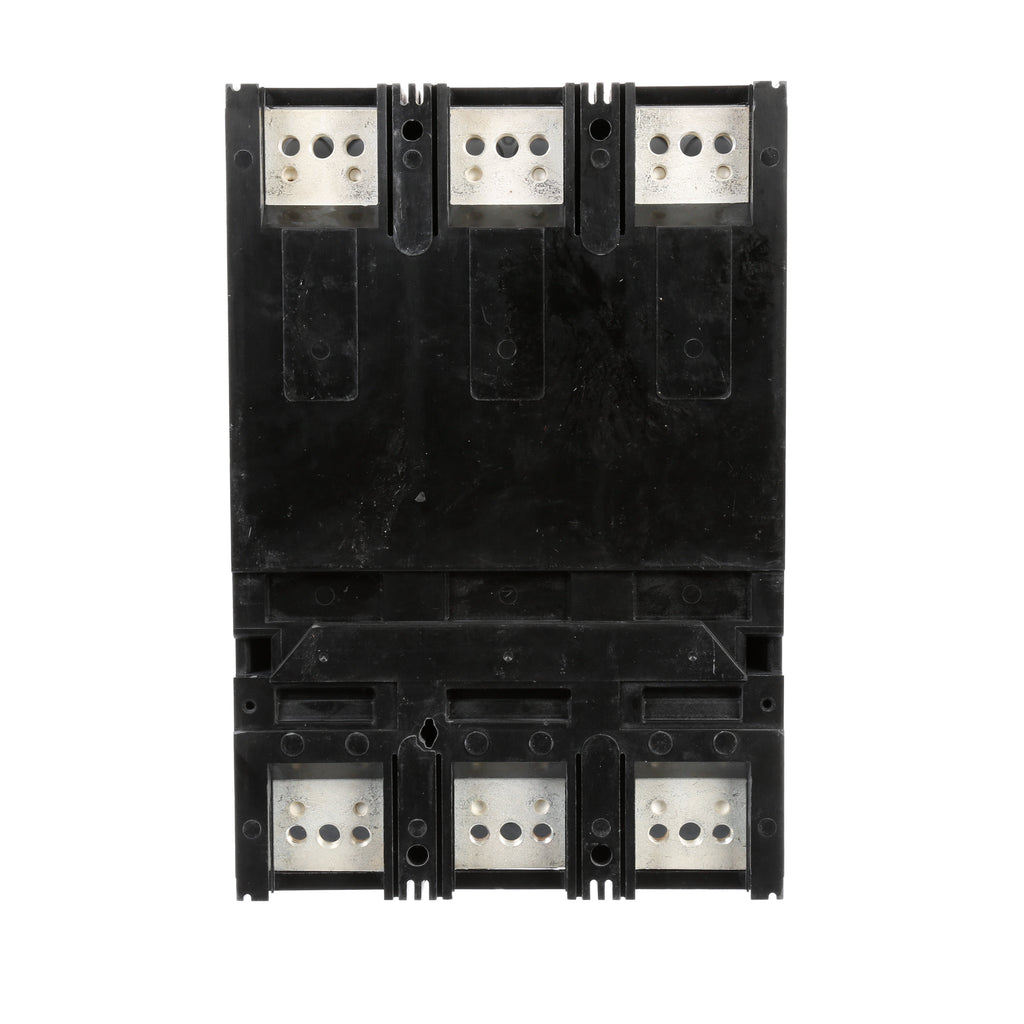

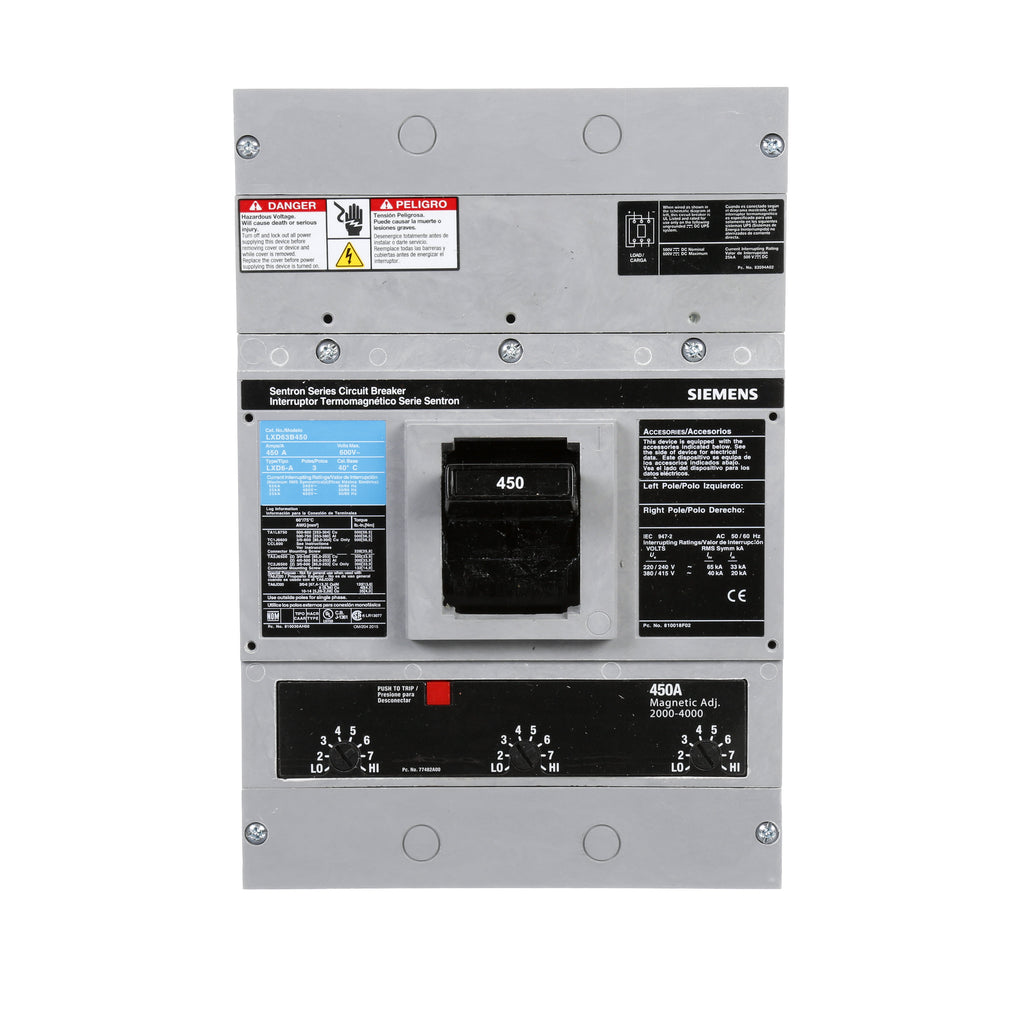

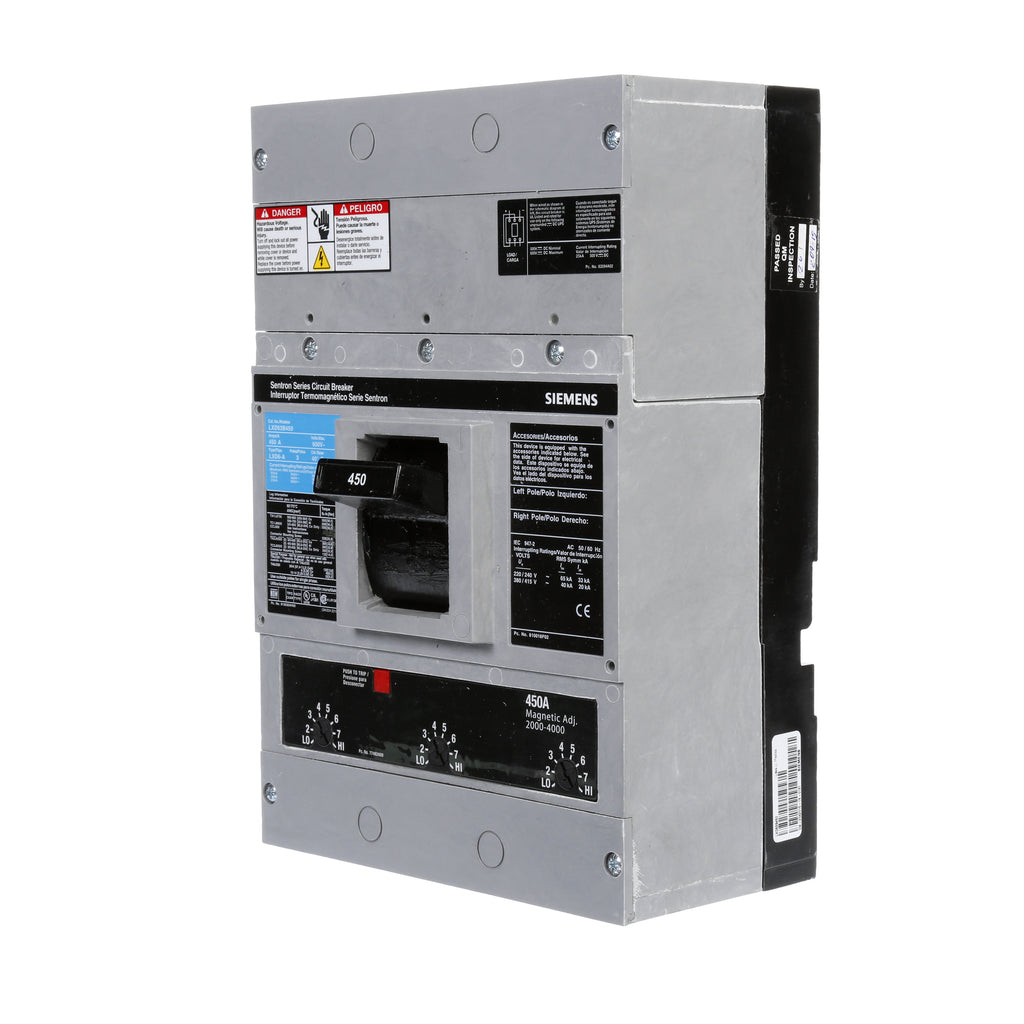

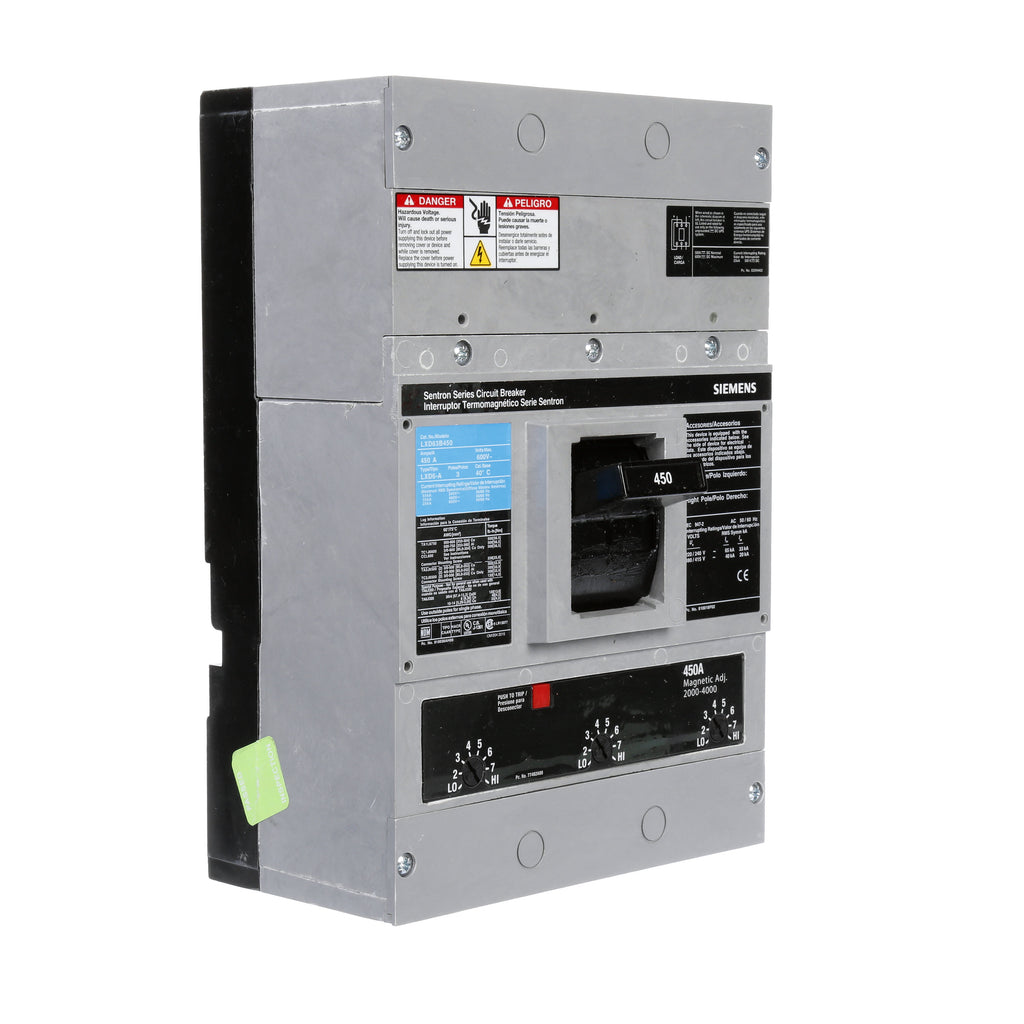

LXD63B450 is a Siemens 3 pole thermal magnetic molded case circuit breaker rated for 450 Amps and 600 Volts AC.This Siemens Sentron Type LXD6 breaker features a bolt-on mounting type with a 25 kA interrupt rating at 600 VAC and 35 kA at 480 VAC. It includes long-time and instantaneous trip functions with a non-interchangeable trip unit. The breaker meets UL 489 and IEC 60947-2 standards and is UL listed for reverse fed applications.

Key Specifications
• Amperage: 450 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 25 kA @ 600 VAC, 35 kA @ 480 VAC
• Series/Frame: Sentron LXD6 / LD Frame
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous
• Certifications: UL 489, IEC 60947-2, UL Listed for reverse feed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: LXD63B450
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LXD
• Voltage : 600
• Amperage : 450
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time and Instantaneous Trip
• Frame Size : LD Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic



Product Data

• UPC : 783643213746
• GTIN : 00783643213746
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.701
• Weight : 15.247
• Certification : Ul Listed
