Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Magnetic Coil
Description
LXD3T7

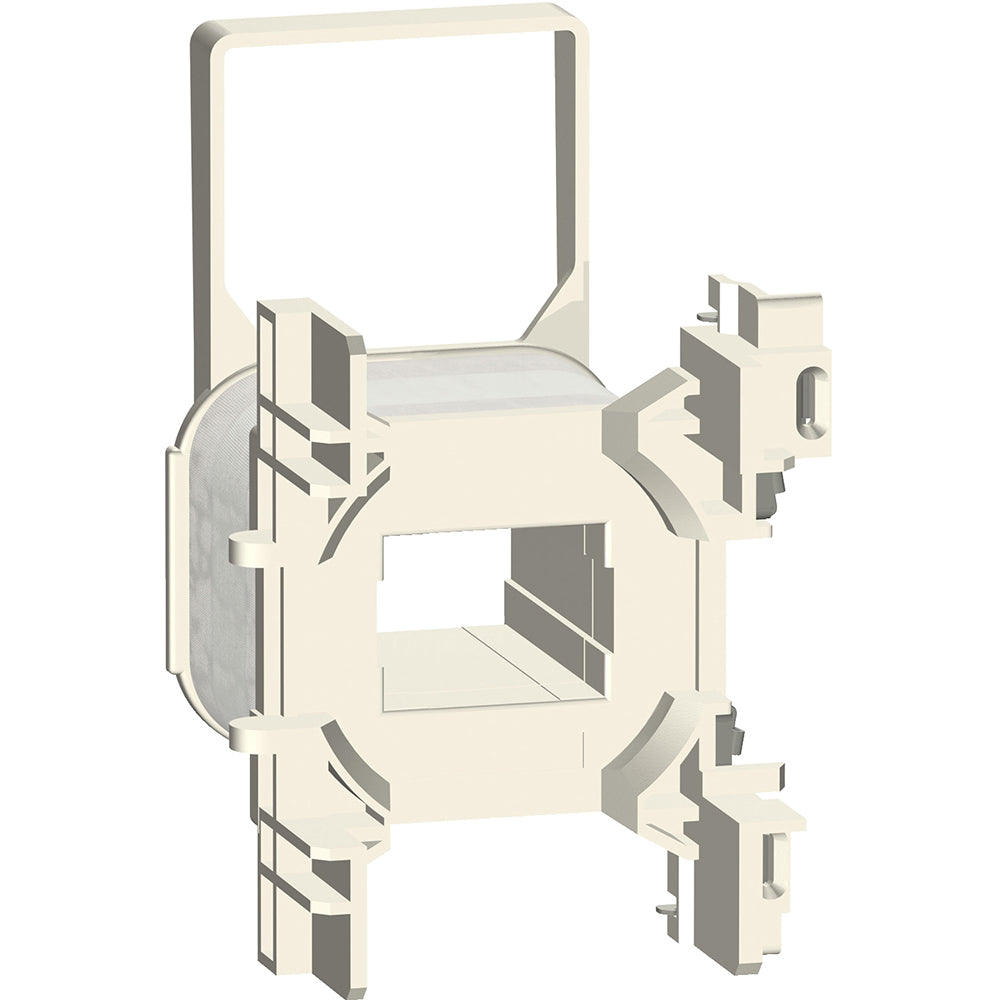

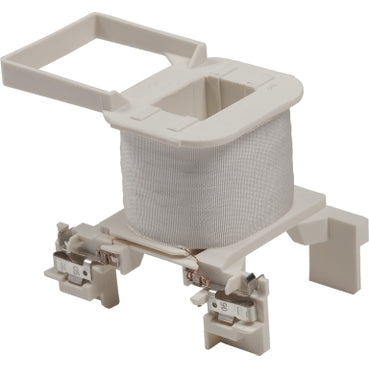

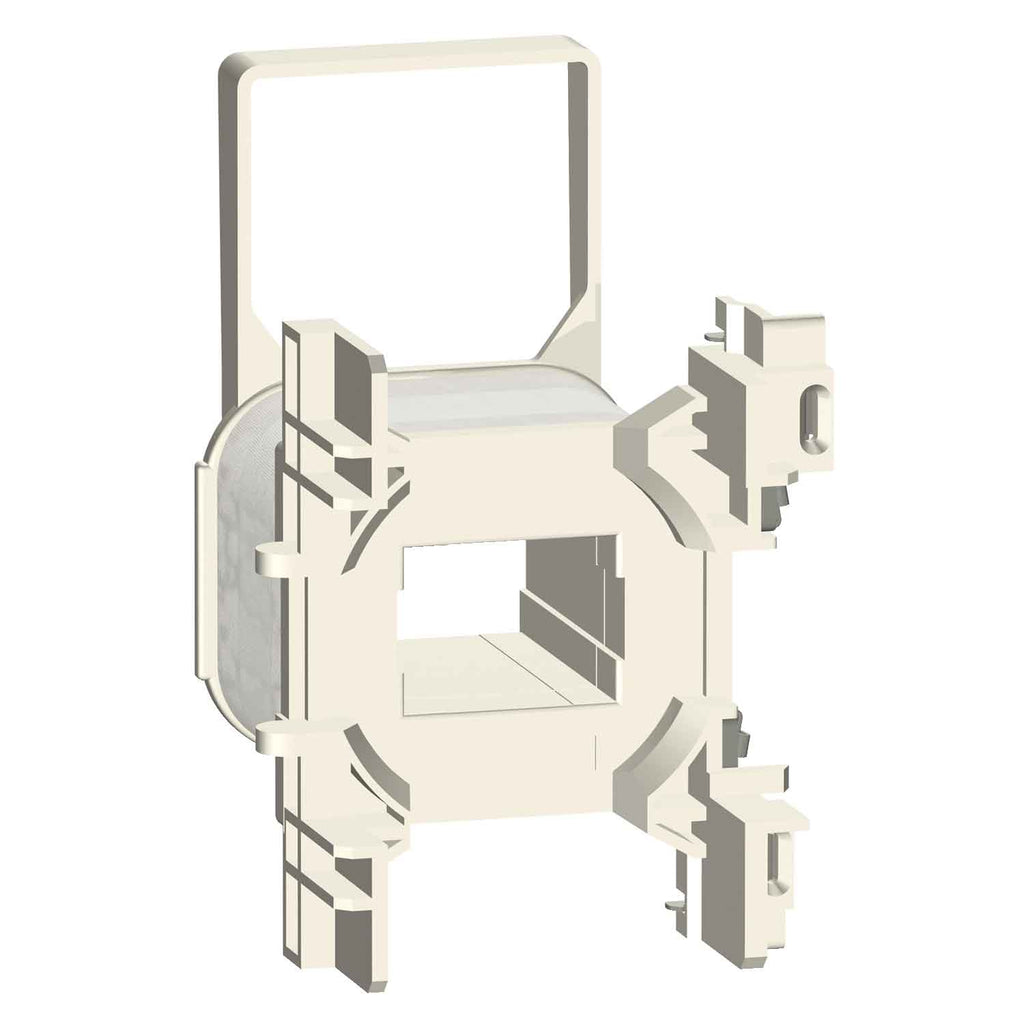

LXD3T7 is a replacement magnetic coil designed for Schneider Electric TeSys D series contactors. This coil provides reliable operation at 480V AC, 60Hz for industrial motor control applications. The LXD3T7 coil is compatible with TeSys D40A, D50A, D65A, DT60A, and DT80A contactors. It features a nominal coil voltage of 480V AC at 60Hz, inrush power of 160 VA, and is built for high mechanical durability. The coil is engineered for use in demanding environments and supports frequent switching cycles.
- Part Number: LXD3T7
- Manufacturer: Schneider Electric
- Coil Voltage: 480V AC
- Frequency: 50/60 Hz
- Coil Power: 160 VA
- Compatible Contactors: TeSys D40A, D50A, D65A, DT60A, DT80A
- Inductance: 33.1 H
- Mounting Type: Standard TeSys D frame
- Operating Rate: 3600 cycles/hour
- Mechanical Durability: 6 million cycles
- Country of Origin: France
- Weight: 0.09 kg
Specifications
- Part Number: LXD3T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Family : TeSys D
- Type : LXD3
- Voltage : 480
- Coil Voltage Maximum : 480 VAC
Product Data
- UPC : 785901811398
- GTIN : 03389119410496
- Country of Origin : France
- Weight : 0.353
