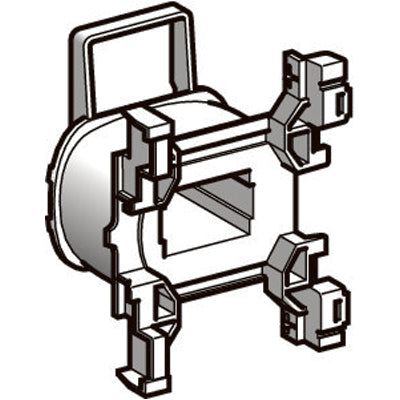

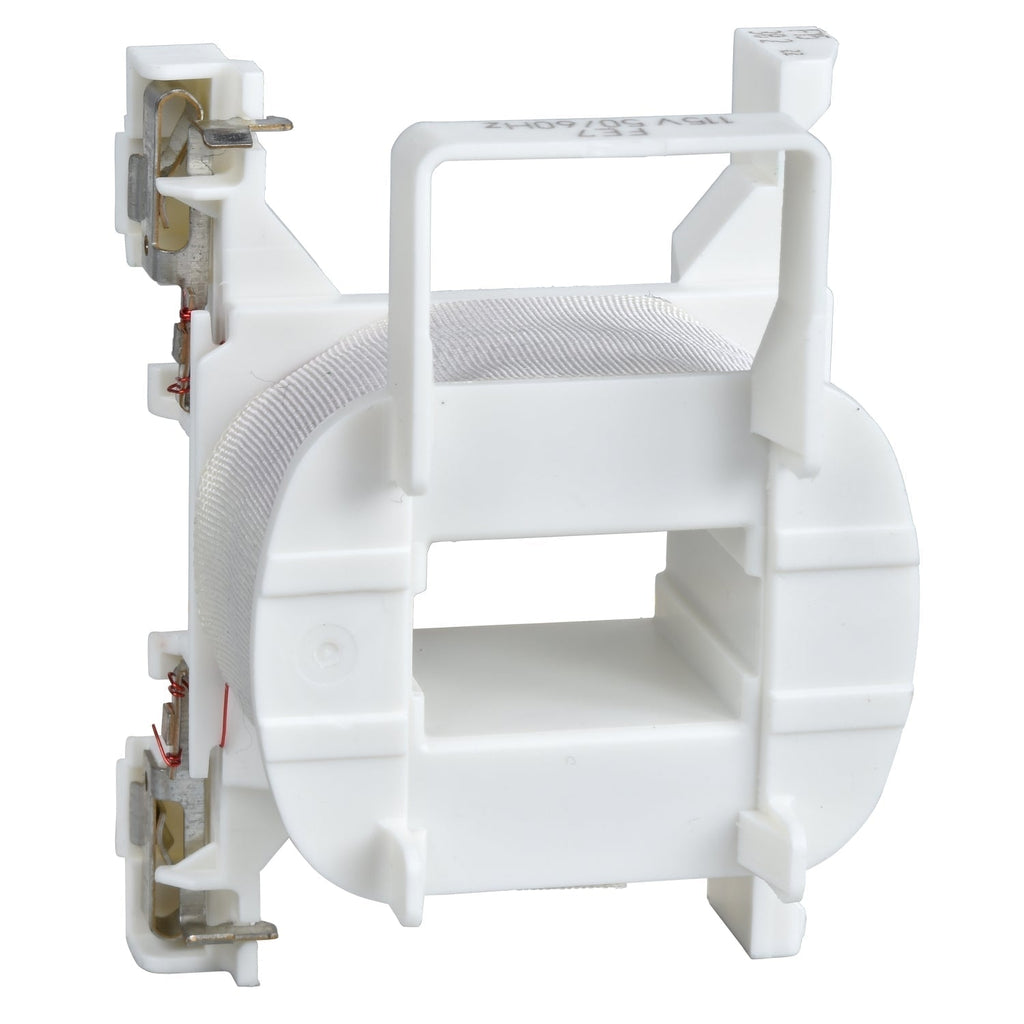

LXD1P7 - Square D / Telemecanique / Schneider Electric TeSys D Contactor Coil, 230V AC, 50/60Hz, For LC1D09 to LC1D38 Series, 9–38A, 3/4-Pole, DIN Rail or Panel Mount

LXD1P7

LXD1P7 is a genuine Square D, Telemecanique, and Schneider Electric replacement coil for TeSys D series contactors, designed for reliable motor control applications.

This 230V AC, 50/60Hz coil is compatible with LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38 contactors, covering a current range of 9 to 38A. It is suitable for both 3-pole and 4-pole configurations and can be mounted on DIN rail or directly to the panel. The coil operates within a voltage range of 0.8–1.1 Uc (50Hz) and 0.85–1.1 Uc (60Hz), and is rated for environments up to 60°C. The product is Green Premium compliant, meeting RoHS and REACH standards, and is designed for easy installation without a built-in suppressor module.

Key Specifications
• Part Number: LXD1P7
• Manufacturer: Square D / Telemecanique / Schneider Electric
• Category: Motor Control
• Coil Voltage: 230V AC, 50/60Hz
• Amperage Range: 9–38A
• Poles: 3-pole and 4-pole compatible
• Mounting Type: DIN Rail or Panel Mount
• Series/Frame: TeSys D (LC1D09 to LC1D38)
• Interrupt Rating: Not specified
• Trip Unit: Not applicable (coil only)
• Certifications: Green Premium, RoHS, REACH compliant
• Country of Origin: France, Singapore
• UPC/GTIN: 00785901580195

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LXD1P7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Family : TeSys D
• Type : LXD1
• Voltage : 230
• Coil Voltage Maximum : 230 VAC

Product Data

• UPC : 038911046791
• GTIN : 03389110467918
• Country of Origin : Indonesia
• Weight : 0.154
