Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Magnetic Coil
Description
LXD1B7

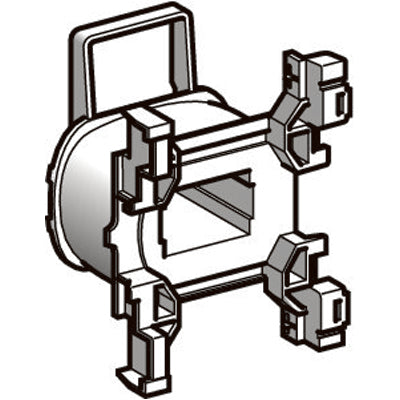

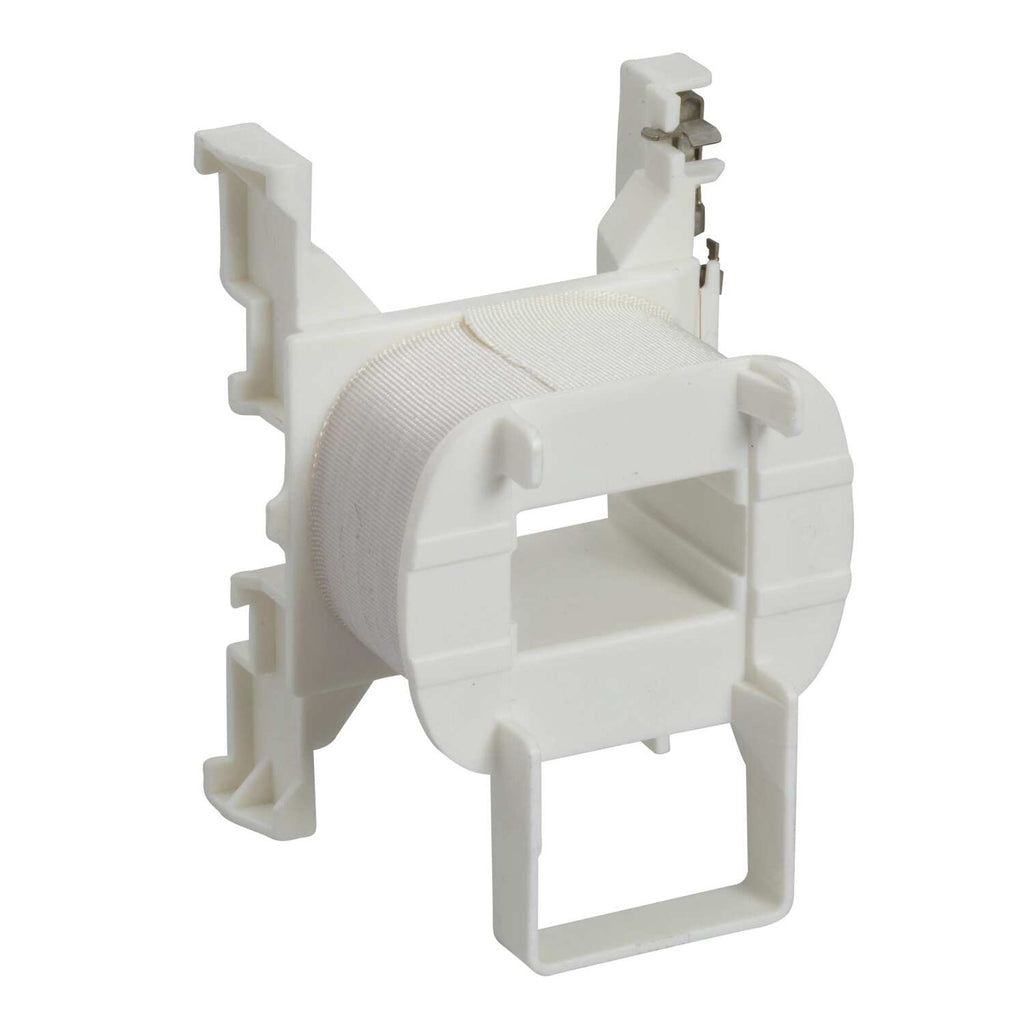

LXD1B7 is a Square D, Schneider Electric, and Telemecanique 24VAC contactor coil designed for motor control applications.
This replacement coil is compatible with the TeSys D series, specifically fitting LC1D09 to LC1D38 and LC1DT20, DT40 contactors. It features a 70VA inrush rating, operates at 50/60Hz, and is rated for up to 3600 cycles per hour. The coil is designed for easy installation without removing the contactor from the panel, making it a cost-effective solution for maintenance and repair.
-
Key Specifications
- Part Number: LXD1B7
- Manufacturer: Square D, Schneider Electric, Telemecanique
- Voltage: 24VAC, 50/60Hz
- VA Rating: 70VA inrush
- Series/Frame: TeSys D, LC1D09 to D38, LC1DT20, DT40
- Mounting Type: Front-mount (no removal required for replacement)
- Operating Temperature: -5°C to 60°C (23°F to 140°F)
- Operating Cycles: Up to 3600 cycles/hour
- Poles: For use with 3 and 4-pole contactors
- Certifications: IEC rated
- Heat Dissipation: 2–3W at 50/60Hz
- Sealed Consumption: 7VA at 20°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LXD1B7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Family : TeSys D
- Type : LXD1
- Voltage : 24
- Coil Voltage Maximum : 24 VAC
Product Data
- UPC : 785901467694
- GTIN : 03389110467697
- Country of Origin : Indonesia
- Weight : 0.146
