Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Magnetic Coil
Description

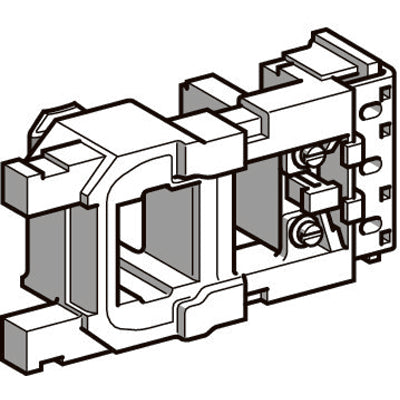

LX1FF220
LX1FF220 is a TeSys F contactor coil designed for use with LC1F and CJX2 series contactors, providing reliable voltage control in industrial motor control applications.
This contactor coil operates at a control circuit voltage of 220-230V AC at 50Hz, with a rated voltage range of 265-277V AC at 60Hz. The coil features an average resistance of 28.1 ohms at 20°C and an inductance of 3.44H when closed. It is engineered without a built-in suppressor module and complies with IEC standards for industrial electrical equipment.
- Control Circuit Voltage: 220-230V AC 50Hz
- Rated Voltage (60Hz): 265-277V AC
- Coil Resistance: 28.1 ohms at 20°C
- Inductance: 3.44H (closed)
- Drop-out Voltage: 0.35-0.55 Uc at 50/60Hz (55°C)
- Coil Technology: Standard (no built-in suppressor)
- Compatible Series: LC1F, CJX2, NC2
- Standards: IEC Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LX1FF220
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Family : TeSys F
- Type : LX1FF
- Voltage : 277
Product Data
- Weight : 1.088
