LX1D6B6 - Square D 24V AC Coil for TeSys D Motor Control Contactor

LX1D6B6

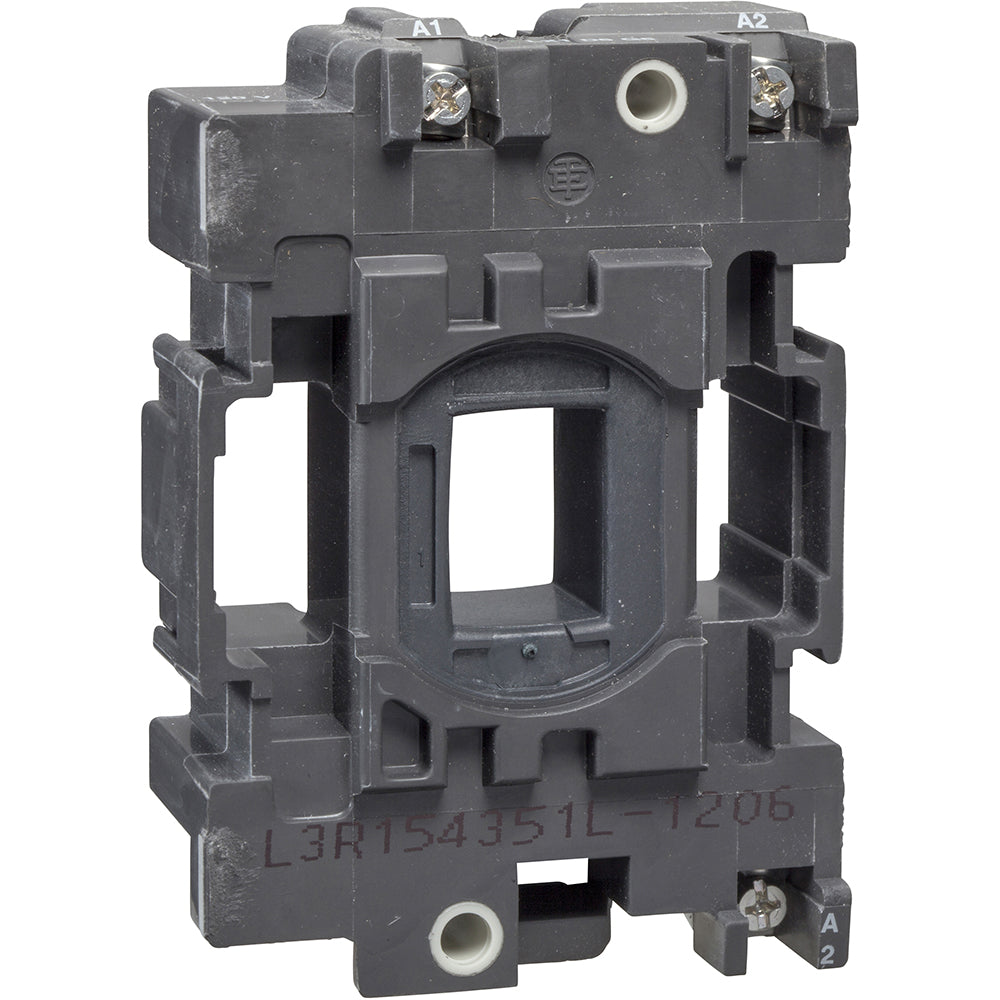

LX1D6B6 is a 24V AC coil designed for Square D TeSys D motor control contactors, providing reliable operation in industrial applications.This coil operates at 24 volts AC, 50/60 Hz, and is compatible with TeSys D contactor series such as LC1D95 and LC1D80. It features precise control circuit voltage limits with drop-out between 0.3 and 0.6 Uc at 50/60 Hz and is rated for use up to 131°F (55°C). The coil is manufactured in the Czech Republic and is a direct replacement part ensuring optimal motor control performance.

Key Specifications
• Part Number: LX1D6B6
• Manufacturer: Square D
• Coil Voltage: 24V AC, 50/60 Hz
• Compatible Contactor Series: TeSys D (LC1D95, LC1D80)
• Control Circuit Voltage Limits: Drop-out 0.3–0.6 Uc
• Operating Temperature: Up to 131°F (55°C)
• Country of Origin: Czech Republic
• Application: Motor Control Coil
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LX1D6B6
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Voltage : 24
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Protection : Solid State



Product Data

• UPC : 3389110208450
• GTIN : 03389110208450
• Country of Origin : Czechia
• Weight : 0.705
