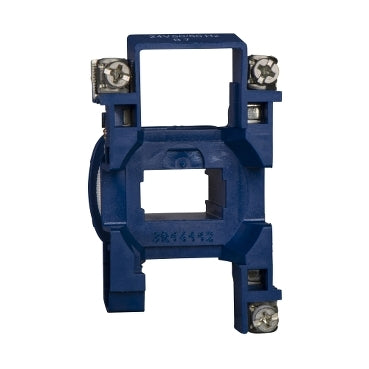

LX1D2F6 - Schneider Electric TeSys Deca Contactor Coil 110 V AC 60 Hz for 9 to 18 A Contactor

LX1D2F6

LX1D2F6 is a Schneider Electric TeSys Deca contactor coil designed for use with 9 to 18 A contactors operating at 110 V AC 60 Hz.This coil operates within 0.8 to 1.1 times the rated voltage at 60 Hz and has an average power consumption of 70 VA at 60 Hz with a power factor of 0.75. It is compatible with LC1D09 to LC1D18 contactors and weighs approximately 1.5 lb (US). The coil features an average resistance of 116.6 Ohms at 20 °C and an inductance of 4.5 H in the closed circuit.

Key Specifications
• Voltage: 110 V AC, 60 Hz
• Current Range: For 9 to 18 A contactors
• Power Consumption: 70 VA at 60 Hz, cos phi 0.75
• Operational Voltage Range: 0.8 to 1.1 Uc at 60 Hz
• Average Resistance: 116.6 Ohms at 20 °C
• Inductance: 4.5 H (closed circuit)
• Weight: 1.5 lb (US)
• Compatible Contactors: LC1D09 to LC1D18 series
• Mounting Type: Designed for TeSys Deca contactors
• Certifications: UL listed (implied by product family standards)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LX1D2F6
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Family : Old D2 Style
• Type : LX1D2
• Voltage : 110



Product Data

• Country of Origin : France
• Weight : 1
