Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV431752

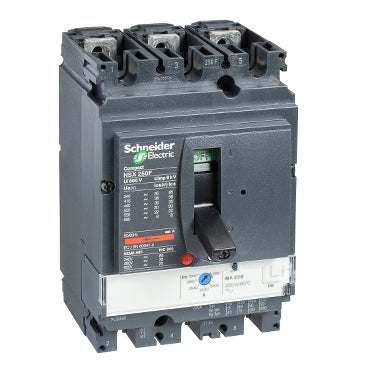

LV431752 is a Compact NSX250N molded case circuit breaker designed for motor protection applications with a rated current of 220 A at 65°C and operational voltage of 690 V AC 50/60 Hz. This 3-pole circuit breaker features a magnetic (MA) trip unit and delivers a breaking capacity of 50 kA at 415 V AC, with additional interrupt ratings of 85 kA at 240 V AC, 10 kA at 660/690 V AC, and 35 kA at 525 V AC. The breaker is suitable for isolation and conforms to EN/IEC 60947-2 Category A standards with CCC, Marine, and EAC certifications.
- Rated Current: 220 A at 65°C
- Rated Voltage: 690 V AC 50/60 Hz
- Number of Poles: 3 poles
- Breaking Capacity: 50 kA at 415 V AC
- Trip Unit: Magnetic (MA)
- Series: Compact NSX250N
- Mounting: Fixed
- Overvoltage Category: Class II
- Pollution Degree: 3
- IP Rating: IP40
- Operating Temperature: -25 to 70°C
- Altitude Rating: 0 to 2000 m without derating
Specifications
- Part Number: LV431752
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact NSX
- Type : LV4
- Voltage : 690
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 50kA@415V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Protection : Magnetic Only
- Trip Type : MA
Product Data
- UPC : 606480014751
- GTIN : 03606480014758
- Weight : 4.29
- Standards : EN/IEC 60947
