Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429677

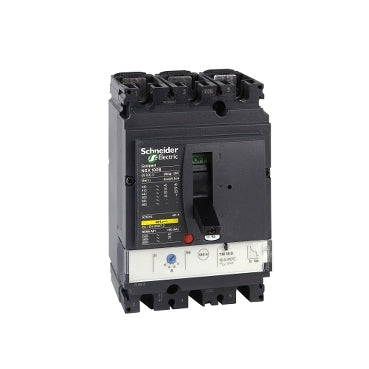

LV429677 is a Compact NSX100H molded case circuit breaker designed for industrial power distribution and motor protection applications. This 3-pole circuit breaker features a TMD trip unit with thermal and magnetic protection, rated at 16 amperes with a 70 kA breaking capacity at 415 VAC. The breaker operates at 690 VAC 50/60 Hz and meets international safety standards for reliable overcurrent and short-circuit protection in demanding electrical systems.
- Amperage Rating: 16 A
- Poles: 3-pole
- Series/Frame: Compact NSX100H
- Trip Unit: TMD (Thermal-Magnetic)
- Breaking Capacity (Icu): 70 kA at 415 VAC 50/60 Hz
- Operational Voltage: 690 VAC 50/60 Hz
- Certifications: EN/IEC 60947-2 Category A
- UL Ratings: 10 kA at 600 V AC, 85 kA at 240 V AC, 65 kA at 480 V AC
- Width: 105 mm
- Depth: 86 mm
- Product Weight: 2.05 kg
Specifications
- Part Number: LV429677
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 70kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- UPC : 785901420149
- GTIN : 03606480009082
- Country of Origin : United States
- Weight : 4.107
- Standards : EN/IEC 60947
