Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429675

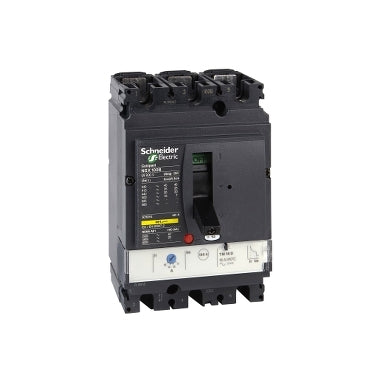

LV429675 is a 3 pole, 690 Volt, 100 amp rated circuit breaker from the Compact NSX100H series, designed for reliable protection in industrial and commercial applications. This breaker features a TMD trip unit with a 32A adjustable thermal-magnetic setting and is rated for 70kA interrupt capacity at 415V. The LV429675 is a bolt-on style circuit breaker, making installation and replacement fast and secure. It is built to meet international standards for safety and performance, with a robust design suitable for demanding environments. The TMD trip unit provides both overload and short-circuit protection, and the breaker is compatible with a wide range of accessories for flexible system integration.
- Part Number: LV429675
- Manufacturer: Schneider Electric
- Series/Frame: Compact NSX100H
- Amperage: 100A
- Voltage: 690V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 70kA @ 415V
- Trip Unit: TMD (32A Adjustable)
- Standards: EN/IEC 60947-2, UL 508
- Width: 105 mm
- Depth: 86 mm
- Weight: 2.05 kg
Specifications
- Part Number: LV429675
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 70kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- UPC : 785901225041
- GTIN : 03606480009068
- Country of Origin : United States
- Weight : 4.107
- Standards : EN/IEC 60947
