Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429673

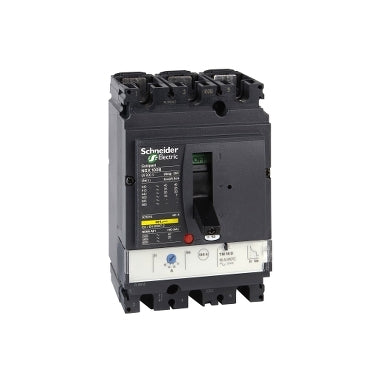

LV429673 is a Schneider Electric Compact NSX100H circuit breaker rated for 100 amps, 690 volts, and 3 poles with a TMD trip unit.
This circuit breaker features a 70kA interrupt rating at 415V AC and complies with IEC 60947-2 standards. It includes a thermal-magnetic trip unit rated at 50 amps and supports operational voltages up to 690V AC at 50/60 Hz. The device has an 8 kV impulse withstand voltage and is designed for bolt-on mounting. This model is discontinued and has no direct replacement.
- Amperage: 100A
- Voltage: 690V AC
- Poles: 3
- Interrupt Rating: 70kA at 415V AC
- Trip Unit: Thermal-Magnetic (TMD), 50A rating
- Mounting Type: Bolt-On
- Impulse Withstand Voltage: 8 kV
- Standards: IEC 60947-2
- Series/Frame: Compact NSX100H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LV429673
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 70kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- GTIN : 03606480009044
- Weight : 4.076
- Standards : EN/IEC 60947
