Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429671

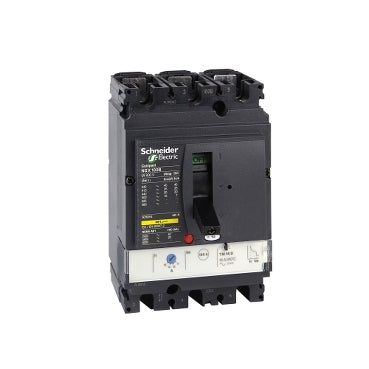

LV429671 is a molded case circuit breaker (MCCB) from Schneider Electric's ComPact NSX100H series, rated for 80A at 415VAC with a 70kA interrupt capacity and TMD thermal-magnetic trip unit. This 3-pole breaker is designed for industrial power distribution applications requiring reliable overload and short-circuit protection with adjustable thermal and magnetic trip settings. The TMD trip unit provides both thermal protection for overload conditions and magnetic protection for short-circuit events, with adjustable characteristics to match specific circuit requirements.
- Part Number: LV429671
- Manufacturer: Schneider Electric
- Series: ComPact NSX100H
- Type: Molded Case Circuit Breaker (MCCB)
- Amperage Rating: 80A
- Voltage Rating: 415VAC
- Poles: 3
- Interrupt Rating: 70kA at 415VAC
- Trip Unit: TMD (Thermal-Magnetic)
- Width: 105mm
- Depth: 86mm
- Weight: 2.05kg
Specifications
- Part Number: LV429671
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 70kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- UPC : 785901160342
- GTIN : 03606480009020
- Country of Origin : United States
- Weight : 3.929
- Standards : EN/IEC 60947
