Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429670

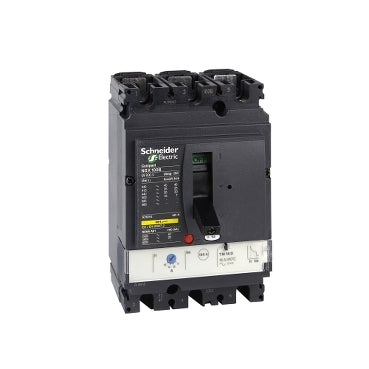

LV429670 is a Schneider Electric Compact NSX100H circuit breaker rated for 100 amps and 690 volts with 3 poles and a TMD trip unit.This circuit breaker features a thermal-magnetic (TMD) trip unit providing adjustable thermal and magnetic protection. It has a breaking capacity of 70kA at 415VAC and operates at 50/60 Hz frequency. The device complies with IEC 60947-2 standards and is designed for reliable circuit protection in industrial and commercial applications.
- Key Specifications
- Amperage: 100A
- Voltage Rating: 690V AC
- Poles: 3
- Trip Unit: Thermal-Magnetic (TMD)
- Interrupt Rating: 70kA at 415VAC
- Series/Frame: Compact NSX100H
- Frequency: 50/60 Hz
- Standards: IEC 60947-2
- Part Number: LV429670
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 70kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
- UPC : 785901160632
- GTIN : 03606480009013
- Country of Origin : United States
- Weight : 3.918
- Standards : EN/IEC 60947
