Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429632

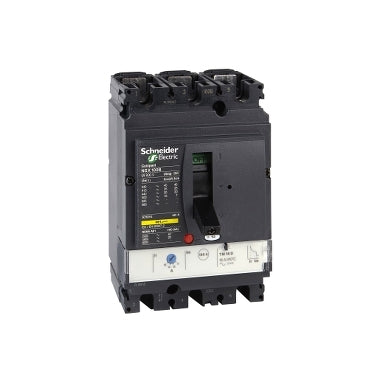

LV429632 is a Schneider Electric Compact NSX100F 3-pole circuit breaker with a 63A TMD thermal-magnetic trip unit, designed for reliable protection in standard and specific applications. This fixed-mount breaker offers a high breaking capacity and compact design for optimized space utilization. The Compact NSX100F series features a 36kA interrupt rating at 415VAC, 690VAC operational voltage, and adjustable thermal overload protection with fixed magnetic protection. It is suitable for industrial and commercial distribution networks and complies with international standards including IEC 60947, CCC, and EAC.
- Part Number: LV429632
- Manufacturer: Schneider Electric
- Series/Frame: Compact NSX100F
- Amperage: 63A
- Rated Current: 100A
- Voltage: 690VAC operational, 800VAC insulation
- Poles: 3
- Mounting Type: Fixed
- Interrupt Rating: 36kA at 415VAC
- Trip Unit: TMD (Thermal-Magnetic)
- Protection Type: Overload (thermal), Short Circuit (magnetic)
- Certifications: IEC 60947, CCC, EAC
Specifications
- Part Number: LV429632
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact NSX
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 36kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- UPC : 606480008781
- GTIN : 03606480000000
- Weight : 3.907
- Standards : EN/IEC 60947
