Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LV429630

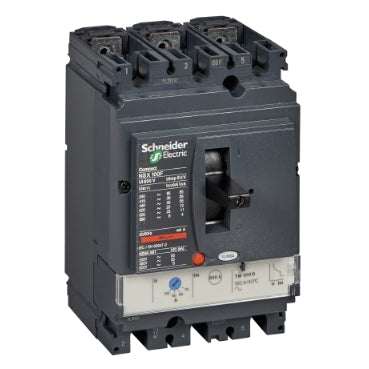

LV429630 is a 3-pole, fixed-mount circuit breaker from the Schneider Electric Compact NSX100F series, featuring a 100A TMD thermal-magnetic trip unit and a 36kA interrupt rating at 415VAC. Designed for reliable protection in industrial and commercial power distribution systems, this breaker offers robust performance and compliance with international standards. This circuit breaker is engineered for easy integration into panelboards and switchgear, supporting a rated operational voltage of 690VAC. It is suitable for applications requiring dependable overcurrent and short-circuit protection.
- Part Number: LV429630
- Manufacturer: Schneider Electric
- Series/Frame: Compact NSX100F
- Amperage: 100A
- Number of Poles: 3
- Mounting Type: Fixed
- Interrupt Rating: 36kA at 415VAC
- Rated Operational Voltage: 690VAC
- Trip Unit: TMD (Thermal-Magnetic)
- Standards: EN/IEC 60947-2, UL 508
- Category: Category A
- Dimensions: 105mm x 161mm x 86mm
Specifications
- Part Number: LV429630
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Compact NSX
- Type : LV4
- Voltage : 690
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 36kA@415V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Trip Type : TM-D
Product Data
- UPC : 606480008767
- Weight : 3.893
- Standards : EN/IEC 60947
