LV429135 - Schneider Electric Compact NSX 100A 4P4D Micrologic 6.2A Electronic Trip Unit

LV429135

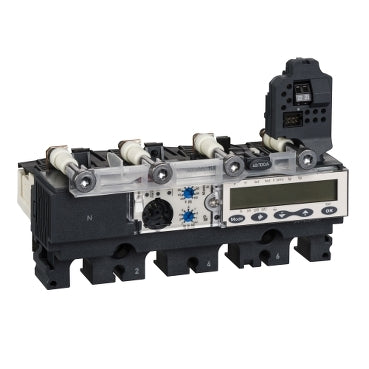

LV429135 is a Schneider Electric Micrologic 6.2A electronic trip unit designed for Compact NSX 100/160/250 circuit breakers, providing reliable protection and monitoring for industrial and commercial power distribution systems.This 4-pole, 4-digital trip unit offers advanced LSIG protection (Long-time, Short-time, Instantaneous, Ground fault) and features an integrated ammeter for real-time current monitoring. The unit is compatible with Compact NSX 100, 160, and 250 frames, supporting a 100A rating and 690V maximum voltage. Its electronic design ensures precise trip settings and improved system reliability.

• Manufacturer: Schneider Electric
• Series: Compact NSX
• Frame Compatibility: NSX 100/160/250
• Amperage Rating: 100A
• Number of Poles: 4
• Mounting Type: 4P4D (4 Pole, 4 Digital)
• Voltage Rating: 690V
• Protection Type: LSIG (Long-time, Short-time, Instantaneous, Ground fault)
• Features: Micrologic 6.2A, Integrated Ammeter
• Application: Circuit Breaker Trip Unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV429135
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 4
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 100
• Amperage Minimum : 100
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 A

Product Data

• GTIN : 03606480016622
• Dimensions : Depth 33.35 in (84.7 cm) Width 20.51 in (52.1 cm) Height 58.46 in (148.5 cm)
• Weight : 1.469
• Standards : UL 508, EN/IEC 60947-2
