LV429115 - Schneider Electric Micrologic 6.2 E Electronic Trip Unit 100A 3 Poles Compact NSX 100/160/250

LV429115

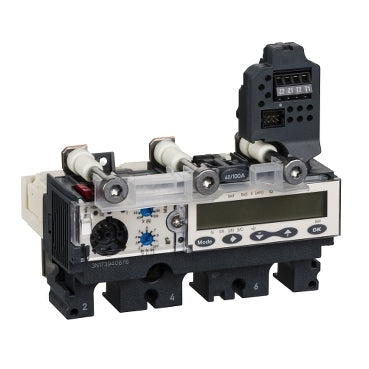

LV429115 is a Schneider Electric Micrologic 6.2 E electronic trip unit designed for Compact NSX 100, 160, and 250 circuit breakers.

This trip unit features a 100 ampere rating and protects 3 poles with 3d protection. It operates at up to 690 V AC and is compatible with Compact NSX frames 100, 160, and 250 A. The Micrologic 6.2 E provides advanced electronic trip functions for precise circuit protection and energy management. This product has been discontinued and replaced by the new ComPacT range.

• Manufacturer: Schneider Electric
• Part Number: LV429115
• Type: Electronic Trip Unit
• Trip Unit Series: Micrologic 6.2 E
• Rated Current: 100 A
• Poles: 3
• Voltage Rating: 690 V AC
• Compatible Frame: Compact NSX 100/160/250
• Trip Unit Technology: Electronic
• Discontinued: Yes, replaced by new ComPacT range

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV429115
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 100
• Amperage Minimum : 100
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 E

Product Data

• UPC : 606480017066
• GTIN : 03606480017063
• Dimensions : Depth 33.35 in (84.7 cm) Width 20.51 in (52.1 cm) Height 58.46 in (148.5 cm)
• Weight : 1.263
• Standards : UL 508, EN/IEC 60947-2
