LV429111 - Schneider Electric 40A 690V 3-Pole Electronic Trip Unit for Compact NSX 100/160/250 Circuit Breakers

LV429111

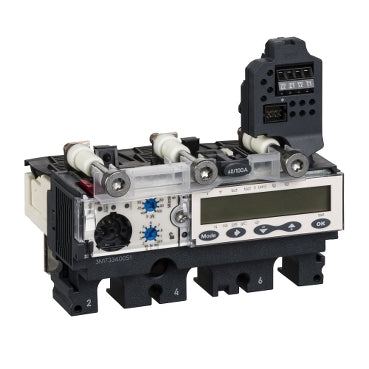

LV429111 is a Schneider Electric electronic trip unit designed for Compact NSX 100/160/250 circuit breakers, providing precise protection and control.This Micrologic 6.2 A trip unit features a 40 ampere rating and operates at up to 690 volts with 3 poles and 3d protection. It is an electronic solid-state trip unit compatible with Compact NSX frames 100, 160, and 250 A, offering advanced protection functions for reliable circuit breaker performance.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LV429111
• Trip Unit Type: Micrologic 6.2 A Electronic
• Amperage Rating: 40 A
• Voltage Rating: 690 V
• Poles: 3
• Frame Compatibility: Compact NSX 100/160/250
• Protection Type: Solid State
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LV429111
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 40
• Amperage Minimum : 40
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 A



Product Data

• GTIN : 03606480016615
• Dimensions : Depth 33.35 in (84.7 cm) Width 20.51 in (52.1 cm) Height 58.46 in (148.5 cm)
• Weight : 2
• Standards : UL 508, EN/IEC 60947-2
