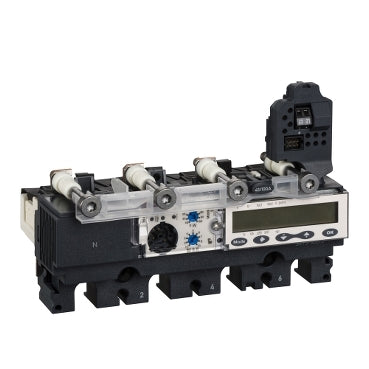

LV429105 - Schneider Electric Micrologic 5.2 E Trip Unit 100A 4 Poles

LV429105

LV429105 is a Micrologic 5.2 E electronic trip unit designed for Compact NSX 100/160/250 circuit breakers with a 100A rating and 4 poles 4d configuration.

This electronic trip unit is engineered to provide advanced protection and coordination capabilities for medium-voltage power distribution systems. The Micrologic 5.2 E series delivers precise overcurrent and earth-fault protection with energy management features, making it ideal for industrial and commercial applications requiring reliable circuit protection.

• Trip Unit Type: Micrologic 5.2 E Electronic
• Amperage Rating: 100A
• Pole Configuration: 4 Poles 4d
• Compatible Breaker Frame: Compact NSX 100/160/250
• Protection Type: Overcurrent and Earth-Fault
• Manufacturer: Schneider Electric
• Part Number: LV429105

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV429105
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 4
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 100
• Amperage Minimum : 100
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 5.2 E

Product Data

• UPC : 606480017004
• GTIN : 03606480017001
• Dimensions : Depth 33.35 in (84.7 cm) Width 20.51 in (52.1 cm) Height 58.46 in (148.5 cm)
• Weight : 1.5
• Standards : EN/IEC 60947-2, UL 508
