LV429080 - Schneider Electric Micrologic 2.2 Trip Unit 100A 4P4D for Compact NSX 100/160/250 Circuit Breakers

LV429080

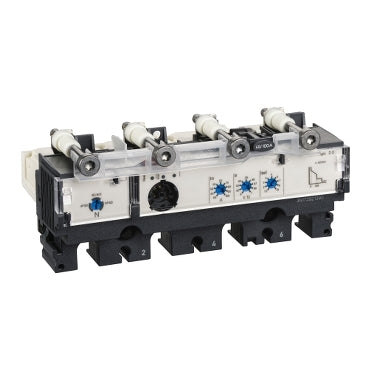

LV429080 is a Micrologic 2.2 electronic trip unit designed for Compact NSX 100/160/250 circuit breakers, providing reliable protection and control for electrical systems. This trip unit is rated at 100A and features a 4-pole, 4D configuration for comprehensive circuit protection. The LV429080 trip unit is compatible with the Compact NSX 100/160/250 series, offering advanced electronic trip technology for precise overload and short-circuit protection. Its 4-pole, 4D design ensures all poles are protected, making it suitable for a wide range of industrial and commercial applications.

• Part Number: LV429080
• Manufacturer: Schneider Electric
• Series/Frame: Compact NSX 100/160/250
• Amperage Rating: 100A
• Poles: 4P
• Protected Poles: 4D
• Mounting Type: Plug-in
• Trip Unit: Micrologic 2.2
• Trip Unit Technology: Electronic
• Application: Circuit Breaker Protection
• Compatible Breaker Series: Compact NSX 100/160/250
• Function: Overload and Short-Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV429080
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 4
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 100
• Amperage Minimum : 100
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 2.2

Product Data

• UPC : 060648001619
• GTIN : 03606480016196
• Dimensions : Depth 33.35 in (84.7 cm) Width 2.05 in (52.1 mm) Height 58.46 in (148.5 cm)
• Weight : 1.256
• Standards : UL 508, EN/IEC 60947-2
