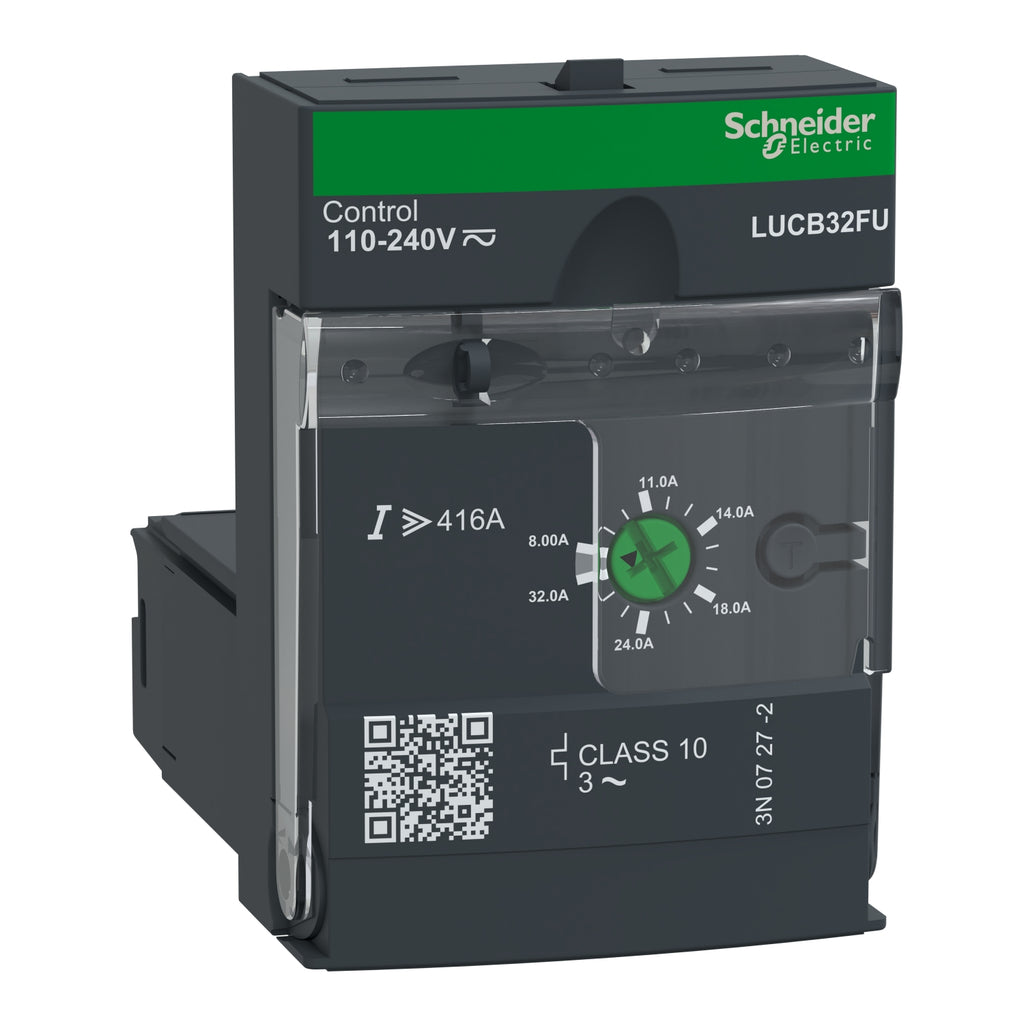

LUCB32FU - Square D 8-32A 110-240V 3-Pole Advanced Motor Control Unit Class 10 TeSys U

LUCB32FU

LUCB32FU is an advanced motor control unit by Square D designed for 3-phase motor protection and diagnostics with adjustable current from 8 to 32 amps.LUCB32FU features a 110-240V AC/DC coil voltage, 3 poles, and Class 10 thermal overload protection. It integrates with TeSys U power bases (LUB320, LUB380) to provide full motor protection including overload, short circuit, phase loss, and insulation fault detection. Certified to IEC, UL, CSA, CCC, EAC, and Marine standards when used with compatible power bases.

Key Specifications
• Amperage: 8-32A adjustable
• Voltage: 110-240V AC/DC coil
• Poles: 3
• Mounting Type: TeSys U power base compatible (LUB320, LUB380)
• Interrupt Rating: Short circuit protection at 13 x Irmax
• Series/Frame: TeSys U
• Trip Unit: Solid state, Class 10 thermal overload
• Frequency: 40-60 Hz
• Operating Temperature: -25 to 70 °C (-13 to 158 °F)
• Certifications: IEC 60947-6-2, UL 508, CSA C22-2, CCC, EAC, Marine

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCB32FU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 110-240 AC/110-220 DC
• Amperage : 32
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LIG - Long-Time, Instantaneous and Ground Fault
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110364453
• GTIN : 03389110364453
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.284
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
