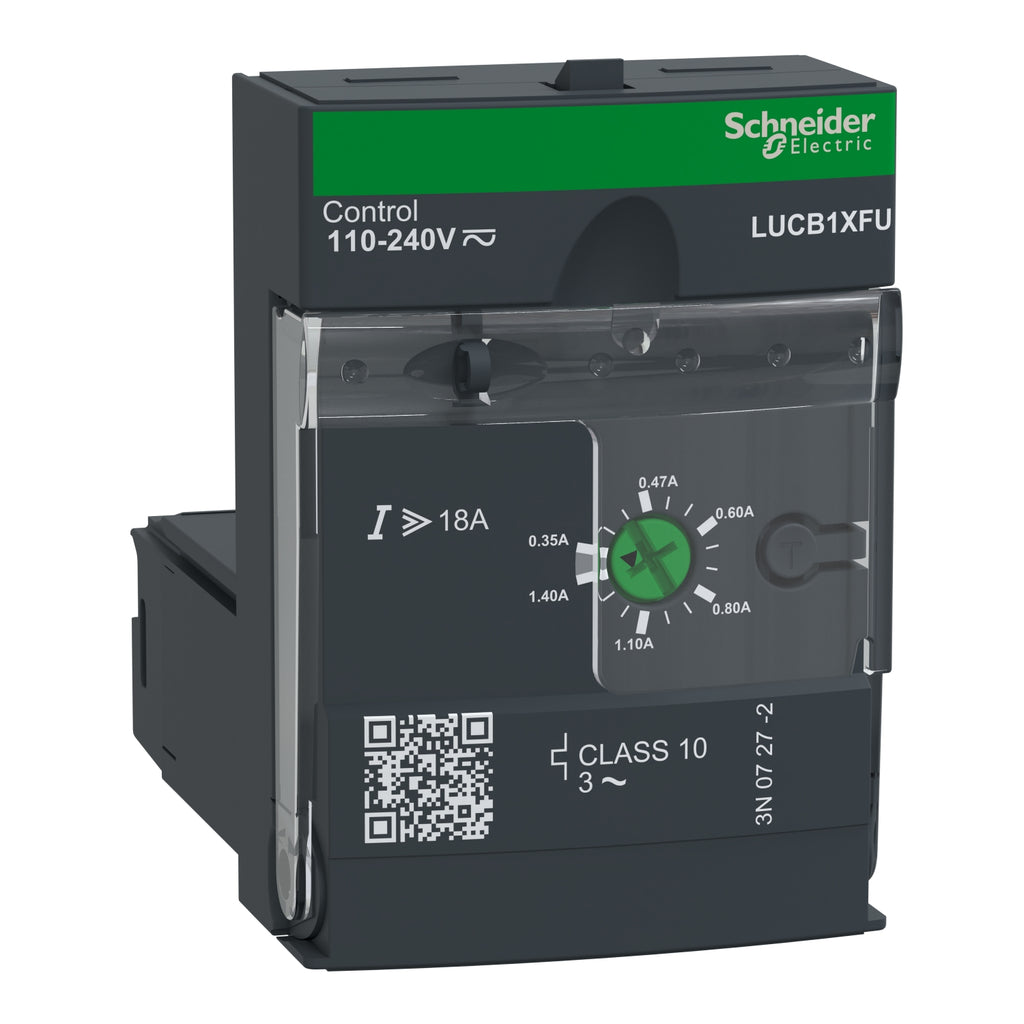

LUCB1XFU - Square D LUCB Series 3-Pole Advanced Control Unit 0.35-1.4A 110-240VAC/DC Class 10

LUCB1XFU

LUCB1XFU is a Square D LUCB Series advanced control unit designed for 3-phase motor protection and diagnostics with a 0.35-1.4A current rating and 110-240VAC/DC coil voltage. This advanced control unit provides reliable protection for 3-pole motors, featuring overload, short-circuit, phase failure, and earth fault protection. It is suitable for a wide range of industrial applications and offers plug-in mounting for easy installation.

• Part Number: LUCB1XFU
• Manufacturer: Square D
• Series: LUCB
• Number of Poles: 3
• Amperage Rating: 0.35-1.4A
• Coil Voltage: 110-240VAC/DC
• Mounting Type: Plug-in
• Protection Features: Overload, Short-Circuit, Phase Failure, Earth Fault
• Operating Temperature: -25 to 70°C
• Storage Temperature: -40 to 85°C
• Approvals: UL, CSA C22.2, GL, ATEX, ABS, CCC, BV, GOST
• Motor Power: 0.25kW at 400-440VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCB1XFU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 110-240 AC/110-220 DC
• Amperage : 1
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110364255
• GTIN : 03389110364255
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.278
• Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
