LUCB18FU - Square D TeSys U Advanced Control Unit 18A 600V 3-Phase Plug-In Class 10

SKU: LUCB18FU-New
Condition: New
Price:
$202.70
Stock:
10 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

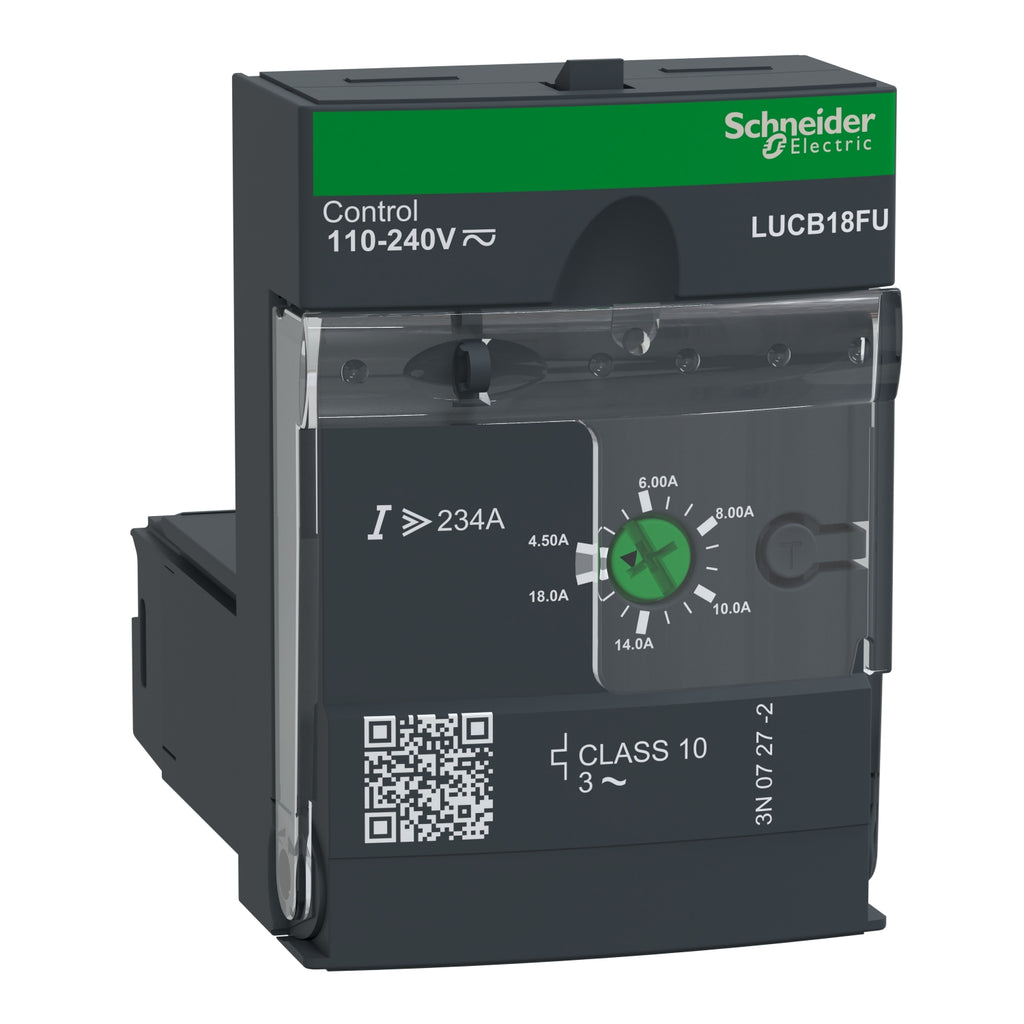

LUCB18FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 18A 110V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LUCB18FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 18A 110V coil - Essential Electric Supply

Description

LUCB18FU


LUCB18FU is a Square D TeSys U advanced control unit designed for 3-phase motor protection with a thermal overload class 10 rating.This control unit supports a current range of 4.5 to 18 amps, operates at 600 VAC for 3-phase motors, and features a plug-in front side mounting. It includes advanced motor protection and diagnostic functions, with coil voltage compatibility of 110-240 VAC or 110-220 VDC. The device offers protection against overload, phase failure, phase imbalance, and earth faults, with manual reset capability. It is self-cooled and rated for IP20 and IP40 degree of protection.
    Key Specifications
    • Amperage Range: 4.5-18 A
    • Voltage Rating: 600 VAC, 3-Phase
    • Control Coil Voltage: 110-240 VAC / 110-220 VDC
    • Number of Poles: 3
    • Mounting Type: Front side plug-in
    • Thermal Overload Class: Class 10
    • Protection Features: Overload, phase failure, phase imbalance, earth fault
    • Degree of Protection: IP20 front panel, IP40 outside connection zone
    • Series: TeSys U (LUCB series)
    • Certifications: UL 508, CSA C22-2, IEC/EN compliant
    • Operating Frequency: 50/60 Hz
    • Cooling: Self-cooled
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LUCB18FU
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Voltage : 110-240 AC/110-220 DC
  • Amperage : 18
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Functions : LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault
  • Coil Voltage Maximum : 110-220 VDC
  • Coil Voltage Minimum : 110
  • Nema Rating : 1
  • Protection : Solid State

Product Data

  • UPC : 3389110364446
  • GTIN : 03389110364446
  • Country of Origin : France
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
  • Weight : 0.28
  • Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
