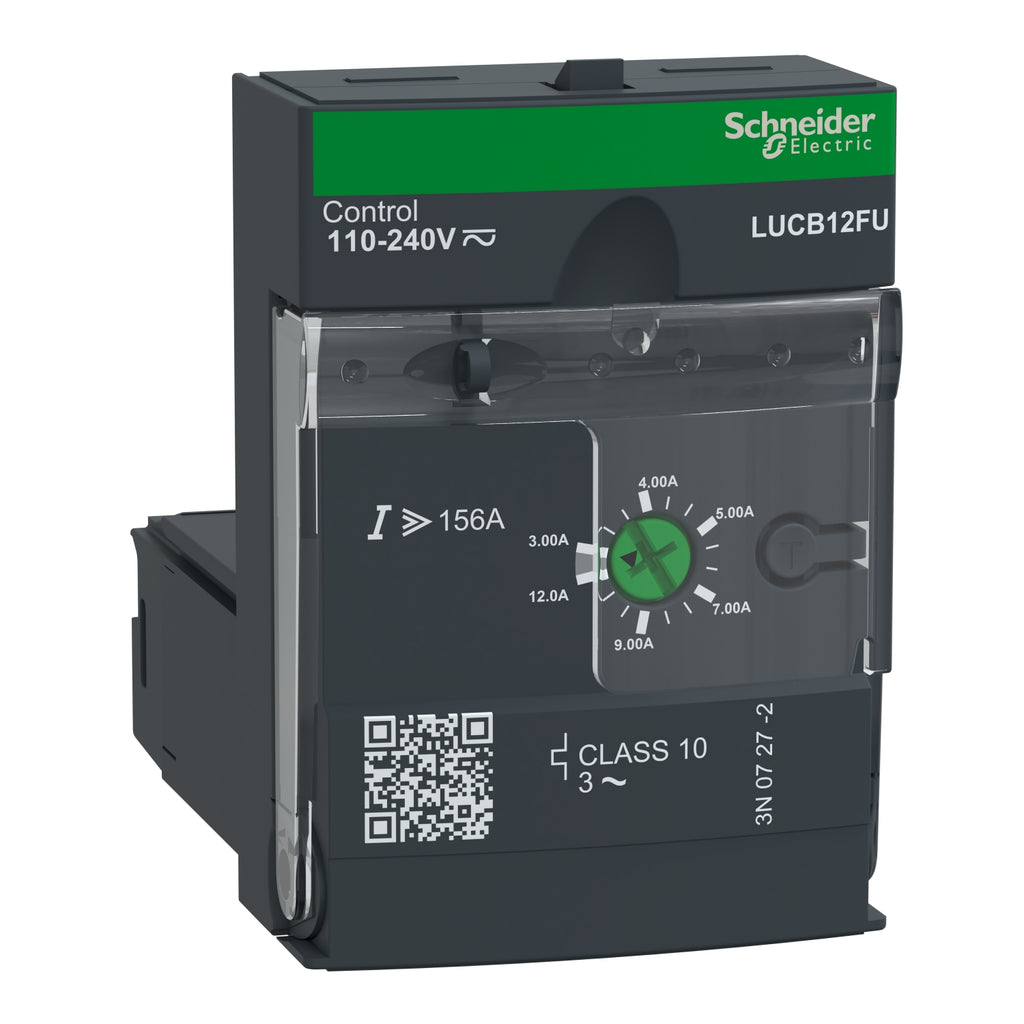

LUCB12FU - Square D 3-Phase Advanced Control Unit 12A 600VAC Plug-In Mount Class 10 Thermal Overload

SKU: LUCB12FU-New
Condition: New
Price:
$202.70
Stock:
7 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LUCB12FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 12A 110V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LUCB12FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 12A 110V coil - Essential Electric Supply

Description

LUCB12FU


LUCB12FU is a Square D advanced control unit designed for 3-phase motor protection with a 12 amp rating and 600 VAC voltage capacity.This control unit features a Class 10 thermal overload protection with an adjustable current range from 3 to 12 amps. It supports 3-phase motors and operates with a control coil voltage of 110 to 240 VAC or 110 to 220 VDC. The unit mounts via a front side plug-in system and includes earth fault protection, manual reset, and protection against overload, short circuit, phase failure, and phase imbalance. It is compatible with TeSys U series accessories and communication modules and meets UL 508, CSA C22-2, and IEC/EN standards.
    Key Specifications
    • Manufacturer: Square D (Schneider Electric)
    • Part Number: LUCB12FU
    • Amperage: 3 to 12 A adjustable
    • Voltage: 600 VAC, 3-phase motor supply
    • Control Coil Voltage: 110-240 VAC / 110-220 VDC
    • Number of Poles: 3
    • Mounting Type: Front side plug-in
    • Thermal Overload Class: Class 10
    • Protection Features: Overload, short circuit, earth fault, phase failure, phase imbalance
    • Series/Frame: TeSys U LUCB series
    • Certifications: UL 508, CSA C22-2, IEC/EN
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LUCB12FU
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Voltage : 110-240 AC/110-220 DC
  • Amperage : 12
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Functions : LSH - Long-Time, Short-Time and High-Range Instantaneous
  • Coil Voltage Maximum : 110-220 VDC
  • Coil Voltage Minimum : 110
  • Nema Rating : 1
  • Protection : Solid State

Product Data

  • UPC : 3389110364439
  • GTIN : 03389110364439
  • Country of Origin : France
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
  • Weight : 0.284
  • Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
