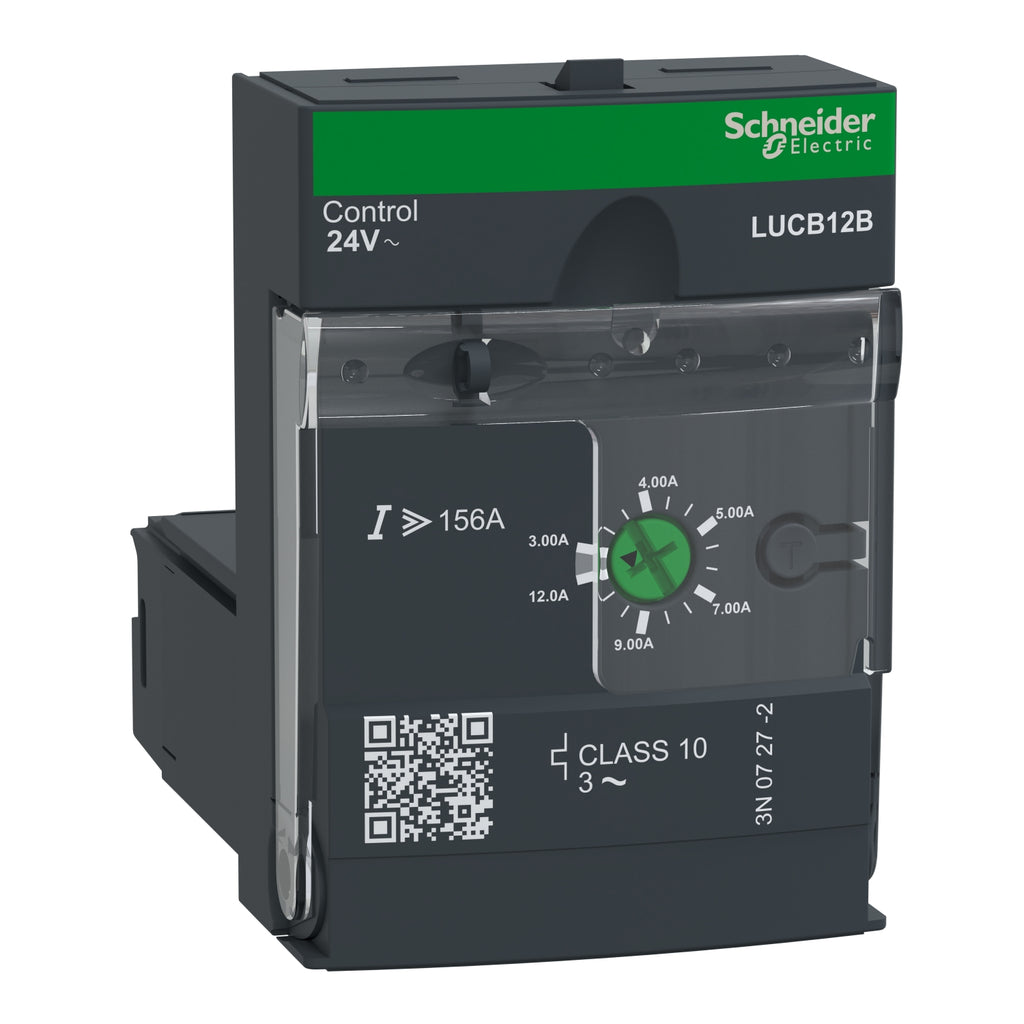

LUCB12B - Square D 3 Pole Motor Starter 12A 600V 24V Coil TeSys Ultra Advanced Control Unit

LUCB12B

LUCB12B is a Square D advanced control unit designed for motor protection and diagnostics with a 3-pole configuration and adjustable current range from 3A to 12A.This TeSys Ultra control unit provides full motor protection including overload and short-circuit protection with a class 10 thermal overload trip. It features a 24V AC coil voltage, supports 3-phase motors up to 600V, and includes electronic components with a current adjustment dial for precise settings. The modular plug-and-play design allows for quick maintenance and reliable operation.

• Amperage range: 3A to 12A adjustable
• Voltage rating: 600V
• Poles: 3-pole
• Coil voltage: 24V AC
• Thermal overload class: 10
• Motor phase: 3-phase
• Protection: Overload and short-circuit
• Series: TeSys Ultra
• Mounting type: Modular plug & play
• Diagnostic features included
• Standards: IEC 60947-6-2, UL 508

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCB12B
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 24 VAC
• Coil Voltage Minimum : 24
• Nema Rating : 1

Product Data

• UPC : 785901222101
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.271
• Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
