LUCB05FU - Square D TeSys U Advanced Control Unit 1.25-5A, 3 Pole, 110-240V AC/DC Coil, Class 10 Thermal Overload

SKU: LUCB05FU-New
Condition: New
Price:
$202.70
Stock:
9 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

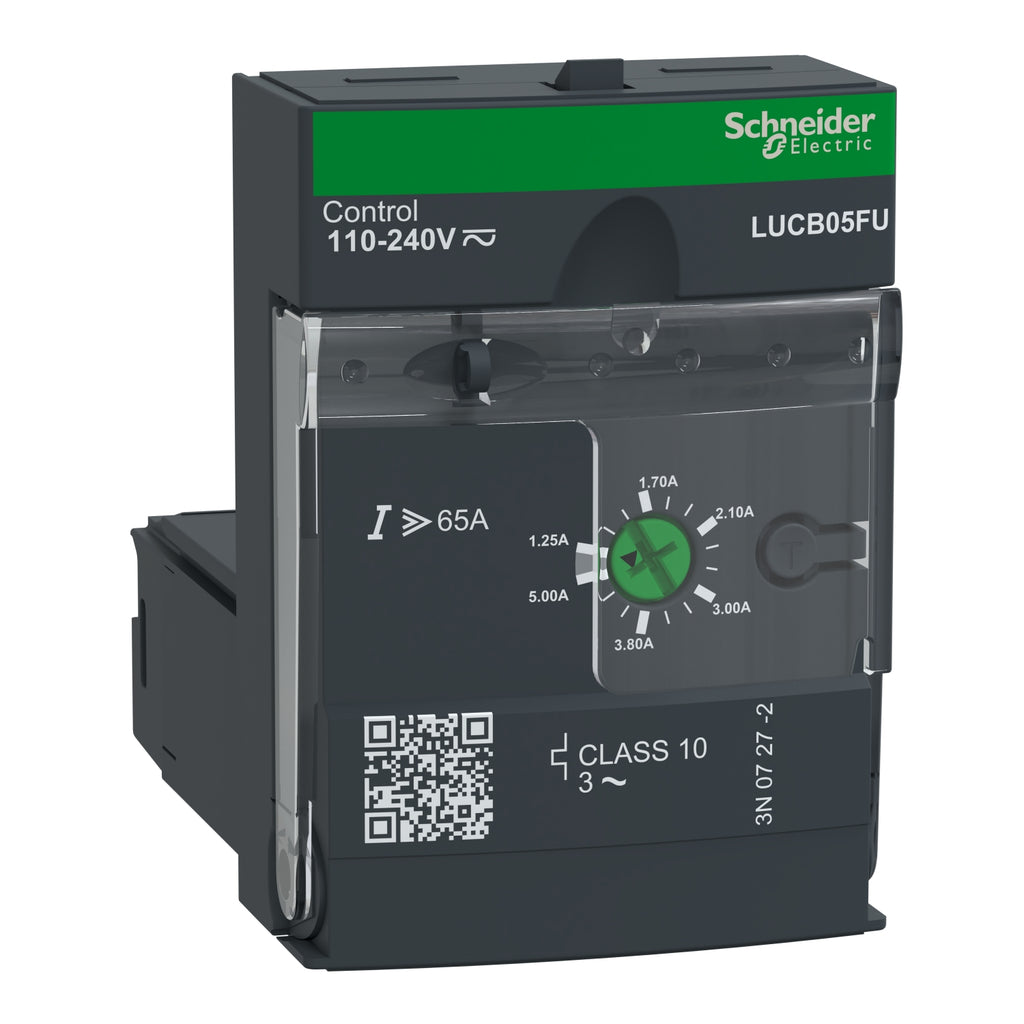

LUCB05FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 5A 110V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LUCB05FU Square D Motor Starter 3 pole 3 phase 110-240V AC/110-220V DCV 5A 110V coil - Essential Electric Supply

Description

LUCB05FU


LUCB05FU is a Square D TeSys U advanced control unit designed for 3-phase motor protection with adjustable current from 1.25 to 5 amps and a 110-240V AC/DC coil.This control unit provides full motor protection including thermal overload (Class 10), short circuit, phase loss, and insulation fault diagnostics. It mounts front side plug-in style on TeSys U power bases (LUB120, LUB320, LUB380) and supports motors up to 1.5 kW at 400V. The unit features solid state technology, manual reset, and complies with IEC, UL, CSA, CCC, and EAC certifications. It is Green Premium compliant (RoHS/REACh) and suitable for use with various communication modules.
    Key Specifications
    • Amperage: 1.25 to 5 A adjustable
    • Voltage: 110-240 V AC/DC coil
    • Poles: 3
    • Mounting Type: Front side plug-in
    • Interrupt Rating: Short circuit protection at 13 x Ir max
    • Series/Frame: TeSys U LUCB
    • Trip Unit: Thermal overload Class 10
    • Motor Power: Up to 1.5 kW at 400 V
    • Certifications: IEC, UL 508, CSA, CCC, EAC, RoHS/REACh
    • Protection: Overload, short circuit, phase loss, insulation fault
    • Operating Frequency: 50/60 Hz
    • Operating Temperature: -25 to 70 °C
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: LUCB05FU
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Motor Control
    • Item Subcategory : Motor Starter
    • Voltage : 110-240 AC/110-220 DC
    • Amperage : 5
    • Phase : 3
    • Poles : 3
    • AIC rating : 65kA@480V
    • Connection : Bolt-On
    • Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
    • Coil Voltage Maximum : 110-220 VDC
    • Coil Voltage Minimum : 110
    • Nema Rating : 1
    • Protection : Solid State

    Product Data

    • UPC : 3389110364262
    • GTIN : 03389110364262
    • Country of Origin : France
    • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
    • Weight : 0.262
    • Certification : ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
