LUCA32FU - Schneider Electric TeSys U Standard Control Unit, 3P, 8-32A, 690VAC, Class 10, Plug-In, Front Mount, Motor Protection

LUCA32FU

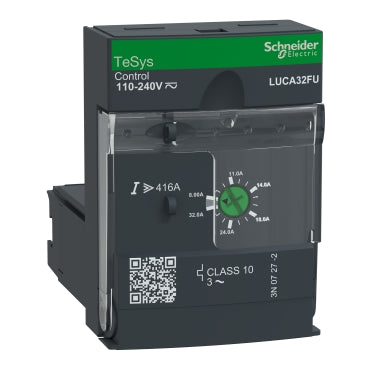

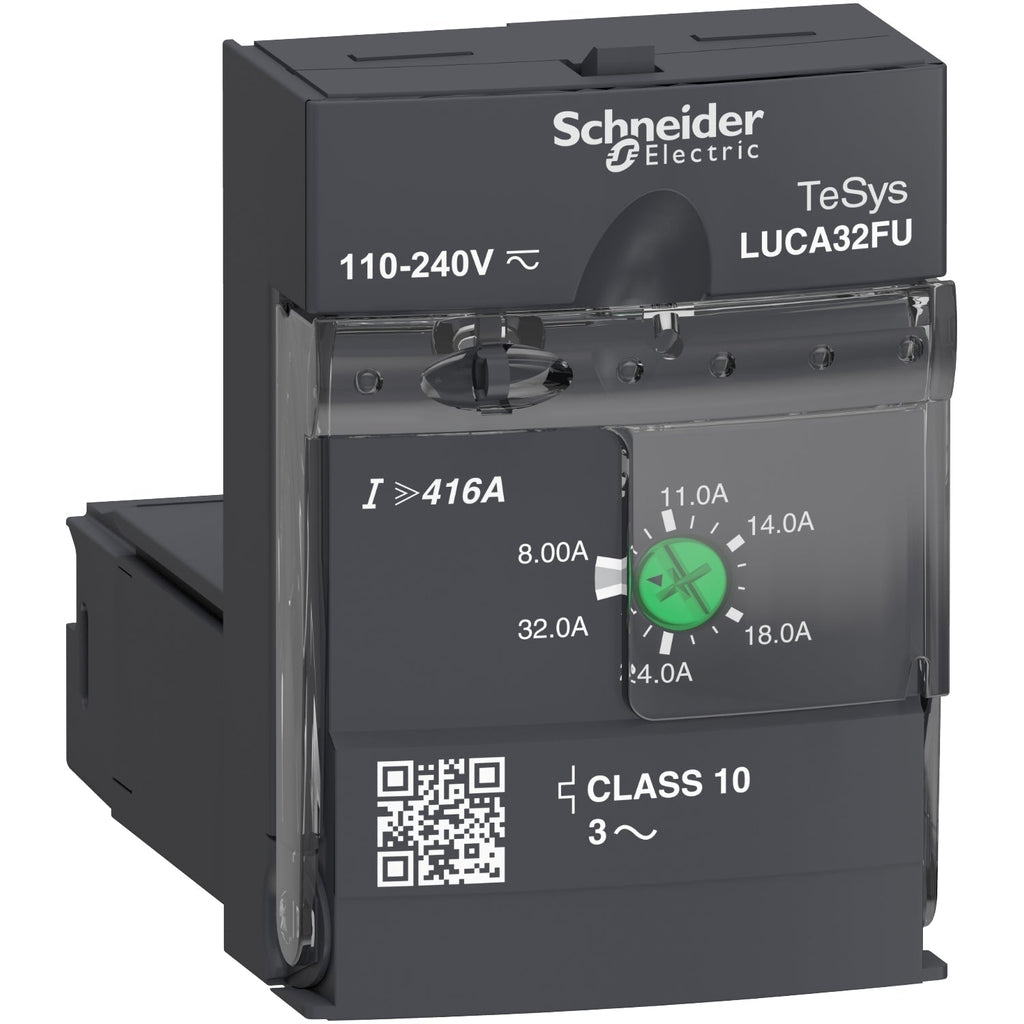

LUCA32FU is a Schneider Electric TeSys U standard control unit designed for reliable motor protection in industrial applications.

This 3-phase, plug-in control unit provides overload and short-circuit protection for motors up to 18.5 kW at 690VAC, with adjustable thermal protection and manual reset. It features front-side, plug-in mounting for easy installation and maintenance, and is compatible with LUFC00 and LUFN communication modules. The unit is suitable for AC-41, AC-43, and AC-44 utilization categories and includes earth fault, phase failure, and phase imbalance protection.

Key Specifications
• Amperage: 8–32A adjustable
• Voltage: 690VAC, 3-phase; control circuit 110–240VAC/DC
• Poles: 3
• Mounting Type: Front-side, plug-in
• Interrupt Rating: Short-circuit protection at 13 x Irmax, overcurrent at 14 x Irmax
• Series/Frame: TeSys U, LUCA series
• Trip Unit: Class 10 thermal overload (Class 20 optional), electronic trip unit with current adjustment dial
• Certifications: Conforms to IEC 60947-6-2 and UL 508
• Motor Power: Up to 15 kW (400–500VAC), 18.5 kW (690VAC)
• Operating Temperature: -25 to 70°C
• Altitude: Up to 2000m
• Environmental: RoHS compliant, carbon footprint 20 kg CO2 eq

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCA32FU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys U
• Type : LUC
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1

Product Data

• UPC : 038911036405
• GTIN : 03389110364057
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.282
• Certification : EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier
