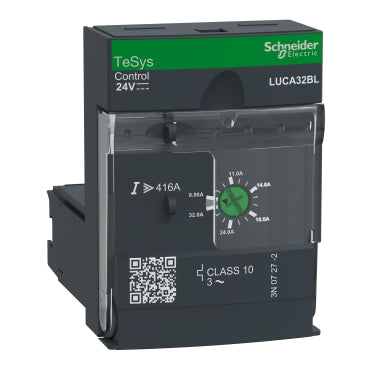

LUCA32BL - Square D 32A 600VAC 3-Pole Motor Control Standard Control Unit 24VDC Coil

LUCA32BL

LUCA32BL is a Square D motor control standard control unit designed for 3-phase motors with a 32 ampere rating and 600 VAC voltage. It features a 24 VDC coil and 3 poles for reliable motor protection.This control unit belongs to the TeSys U series and provides thermal magnetic protection with Class 10 trip characteristics. It supports full load currents from 8 to 32 A and is suitable for use with ASILUFC5, ASILUFC51, LUFC00, and LUFN communication modules. The unit mounts via front side plug-in and offers earth fault protection, manual reset, and protection against overload, short circuit, phase failure, and phase imbalance. It is UL 508, CSA C22-2, and IEC/EN approved.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Part Number: LUCA32BL
• Amperage: 32 A (8 to 32 A full load current range)
• Voltage: 600 VAC, 3-phase
• Poles: 3
• Coil Voltage: 24 VDC
• Series: TeSys U (LUCA series)
• Mounting Type: Front side plug-in
• Interrupt Rating: Thermal magnetic protection, Class 10
• Protection Features: Overload, short circuit, earth fault, phase failure, phase imbalance
• Certifications: UL 508, CSA C22-2, IEC/EN
• Operating Temperature: -25 to 70 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LUCA32BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : LUCA
• Voltage : 600
• Amperage : 32
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 785901222224
• GTIN : 00389110000000
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.269
• Temp Rating : -13–158 °F (-25–70 °C)
