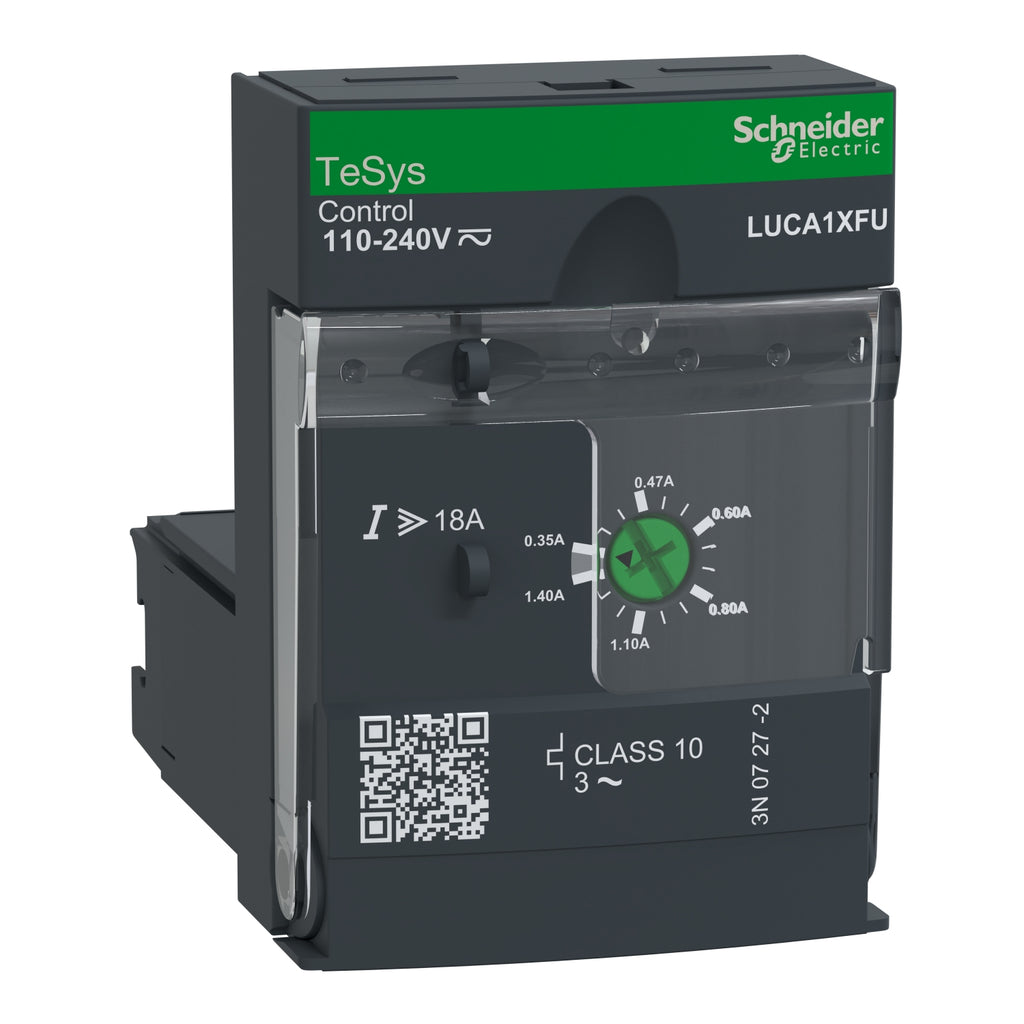

LUCA1XFU - Square D 3-Pole Motor Control Standard Control Unit 0.35-1.4A 110-240V AC/DC Class 10 Thermal

LUCA1XFU

LUCA1XFU is a Square D standard control unit designed for 3-phase motor protection with adjustable current from 0.35 to 1.4 amps and coil voltage of 110-240V AC/DC.LUCA1XFU provides thermal magnetic protection with Class 10 overload tripping, short circuit protection at 13 times rated current, and phase failure and imbalance detection. It features a modular plug-in design for front side mounting and is compatible with LUFC00 and LUFN communication modules. The unit operates within -25 to 70 degrees Celsius and meets IEC 60947-1 IP20/IP40 standards.

Key Specifications
• Amperage: 0.35 to 1.4 A adjustable
• Voltage: 110-240 V AC/DC coil voltage
• Poles: 3
• Mounting Type: Front side plug-in
• Interrupt Rating: 13 x Irmax short circuit protection
• Series/Frame: LUCA, TeSys U
• Trip Unit: Thermal magnetic, Class 10
• Operating Temperature: -25 to 70 °C
• Protection: Overload, short circuit, phase failure, phase imbalance, earth fault
• Certifications: UL 508, CSA C22-2, IEC/EN approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCA1XFU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 1
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110364019
• GTIN : 03389110364019
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.271
• Certification : CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
