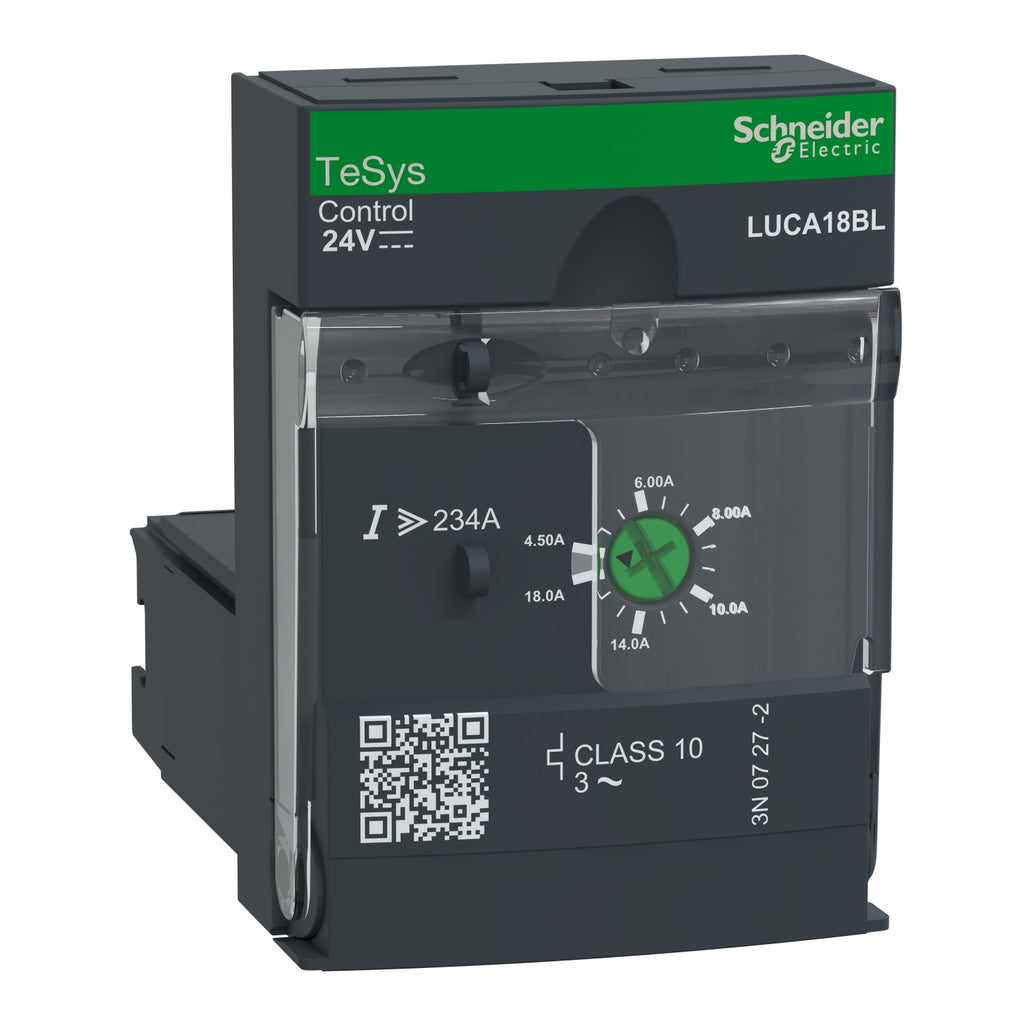

LUCA18BL - Square D 18A 600V 3 Pole Motor Starter Control Unit, 24VDC Coil, TeSys U Series

LUCA18BL

LUCA18BL is a Square D TeSys U standard motor starter control unit designed for 3-phase motors with a 3-pole configuration and 18 ampere rating.This control unit supports a voltage rating of 600 VAC (3 phase) and operates with a 24 VDC coil. It features thermal magnetic protection with a Class 10 trip unit, suitable for motor full load currents from 4.5 to 18 amps. The unit is front side mountable and plug-in type, compatible with ASILUFC5, ASILUFC51, LUFC00, and LUFN communication modules. It is self-cooled and meets IEC 60947-6-2 and UL 508 certifications.

• Manufacturer: Square D (Schneider Electric)
• Part Number: LUCA18BL
• Amperage: 4.5 to 18 A full load current
• Voltage: 600 VAC, 3 phase
• Poles: 3
• Coil Voltage: 24 VDC
• Trip Unit: Thermal magnetic, Class 10
• Mounting Type: Front side mount, plug-in
• Series/Frame: TeSys U (LUCA series)
• Interrupt Rating: Standard for motor control
• Certifications: IEC 60947-6-2, UL 508
• Compatible Modules: ASILUFC5, ASILUFC51, LUFC00, LUFN

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCA18BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 24 VDC
• Coil Voltage Minimum : 24
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110363852
• GTIN : 03389110363852
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.269
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
