LUCA12FU - Square D 12A 3 Pole 3-Phase Motor Starter 690V AC 110-240V Coil TeSys U Series

LUCA12FU

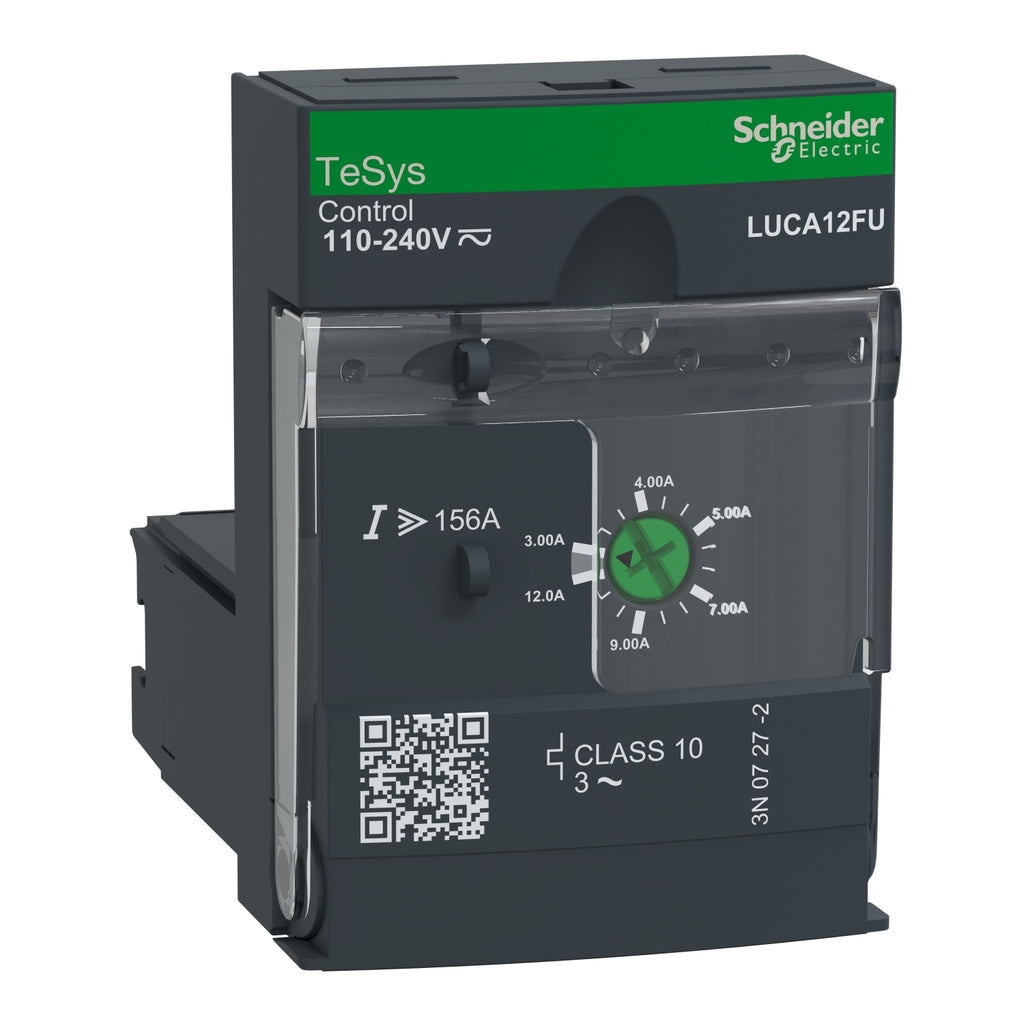

LUCA12FU is a Square D TeSys U standard control unit designed for motor protection and control in 3-phase applications.LUCA12FU features a 3-pole design with a 12 ampere rating, suitable for use with 690 V AC motors. It includes a 110-240 V AC/DC coil voltage and supports a full load current adjustment range from 3 to 12 A. The unit is front side mountable and plug-in type, providing easy installation and maintenance. It offers thermal overload protection with class 10 trip characteristics and short circuit protection, compliant with UL 508, CSA, and IEC/EN standards.

Key Specifications
• Amperage: 12 A adjustable (3-12 A range)
• Voltage: 690 V AC motor rating
• Coil Voltage: 110-240 V AC/DC
• Poles: 3
• Mounting Type: Front side mount, plug-in
• Interrupt Rating: Class 10 thermal overload trip
• Series/Frame: TeSys U LUCA series
• Trip Unit: Electronic thermal overload
• Certifications: UL 508, CSA C22.2, IEC/EN
• Operating Temperature: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCA12FU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110364033
• GTIN : 03389110364033
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.282
• Certification : CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
