LUCA05FU - Square D TeSys U 3-Phase 1.25-5A 110-240VAC Standard Control Unit Class 10 Trip

LUCA05FU

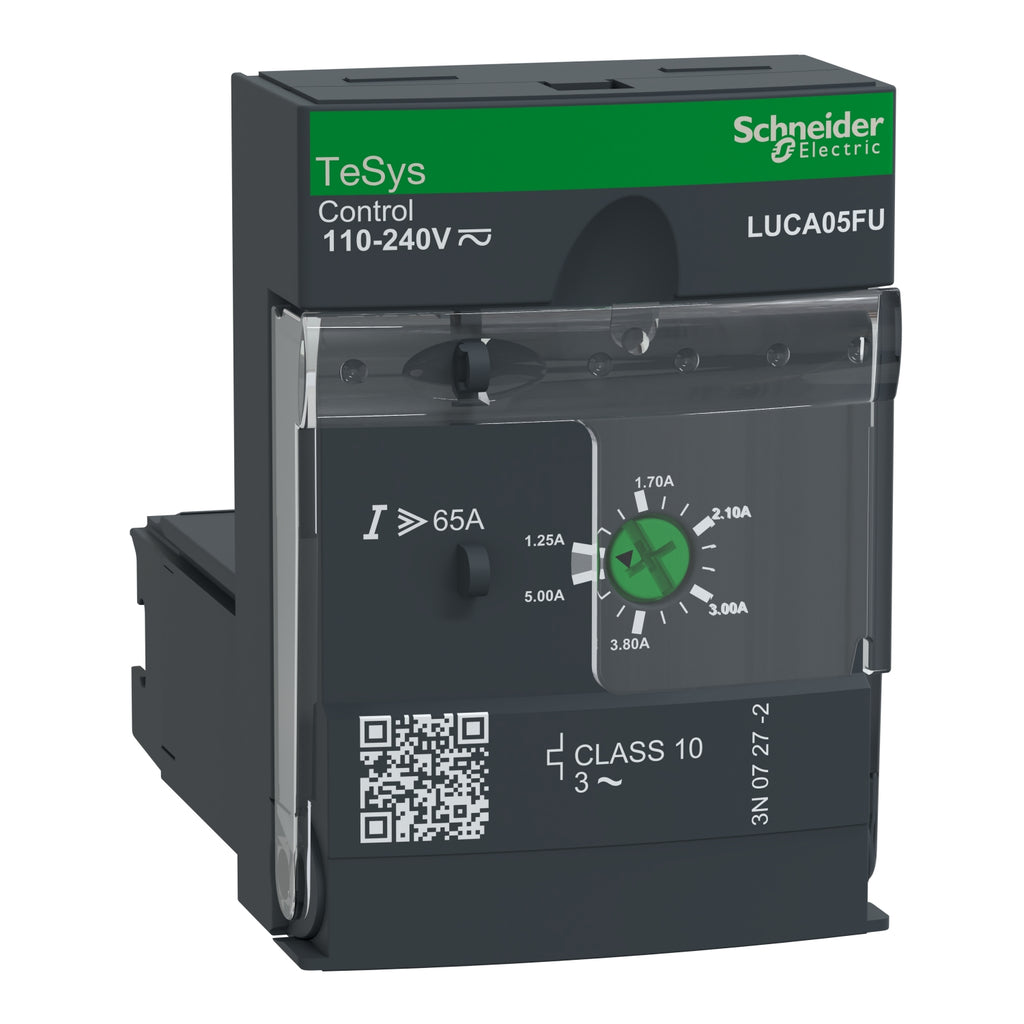

LUCA05FU is a Square D TeSys U standard control unit designed for reliable motor protection in three-phase applications. This solid-state control unit provides manual reset and comprehensive protection against overload, short circuit, phase failure, and phase imbalance. The LUCA05FU features a plug-in, front side mount design for easy installation and maintenance. It is compatible with LUFC00 and LUFN communication modules and is suitable for use in a wide range of industrial environments. The unit operates with a coil voltage of 110-240V AC/DC and offers a full load current range of 1.25 to 5A.

• 3-phase operation
• 1.25 to 5A full load current
• 110-240V AC/DC coil voltage
• 690V AC maximum voltage
• Class 10 trip unit
• Front side, plug-in mount
• 3 poles
• UL 508, CSA C22.2, IEC/EN approved
• IP20 front panel, IP40 other faces
• Manual reset
• Earth fault protection
• Phase failure and phase imbalance protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LUCA05FU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 5
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Coil Voltage Maximum : 110-220 VDC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Protection : Solid State

Product Data

• UPC : 3389110364026
• GTIN : 03389110364026
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
• Weight : 0.254
• Certification : CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
