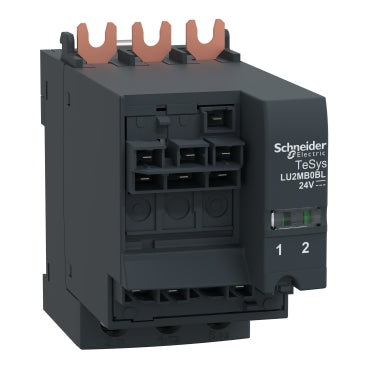

LU2MB0BL - Schneider Electric TeSys U Reverser Block 38A 690V 24VDC Vertical Mount

LU2MB0BL

LU2MB0BL is a reverser block designed for vertical mounting in TeSys U motor control applications, providing reliable switching for motor direction control. This plug-in module is engineered for use with TeSys U combination starters and offers robust performance in demanding industrial environments. The unit features a 24V DC coil and is rated for 38A operational current and 690V AC power circuit, making it suitable for a wide range of motor control needs.Engineered for direct mounting, the LU2MB0BL reverser block is part of the TeSys U series and delivers fast, precise operation with a modular, plug-and-play design for easy installation and maintenance. It meets international standards including EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, and CSA C22.2 No 60947-4-1, and is certified for CE, UL, CSA, CCC, EAC, ASEFA, ATEX, and Marine applications.

• Part Number: LU2MB0BL
• Manufacturer: Schneider Electric
• Series: TeSys U
• Rated Operational Current: 38 A
• Rated Operational Voltage: 690 V AC
• Control Circuit Voltage: 24 V DC
• Mounting Type: Vertical, Plug-in
• Device Application: Motor Control
• Standards: EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Certifications: CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
• Operating Frequency: 40...60 Hz
• Operating Time: 150 ms with change of direction, 75 ms without

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LU2MB0BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Automation
• Item Subcategory : PLC Module
• Coil Voltage Maximum : 24 VDC

Product Data

• UPC : 038911036377
• Country of Origin : France
• Dimensions : 3.1 in (80 mm) x 1.8 in (45 mm) x 4.1 in (105 mm) (Height x Width x Depth)
• Weight : 0.886
