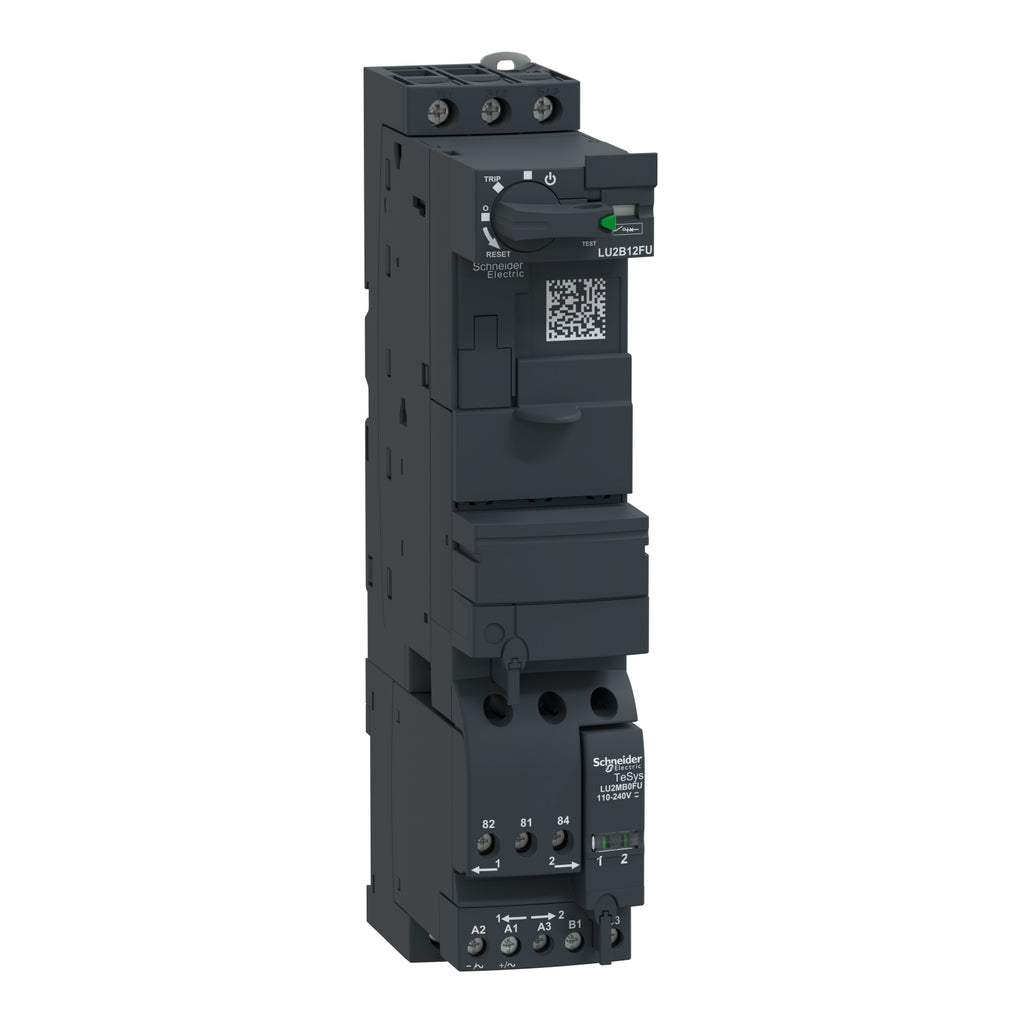

LU2B12FU - Square D 12A 690V 3-Pole Reversing Power Base TeSys Ultra Coil 110-240VAC/DC

LU2B12FU

LU2B12FU is a Square D TeSys Ultra reversing power base designed for motor control applications with 3 poles and a 12 amp rating at up to 690 volts.This reversing power base features a coil voltage range of 110 to 240 VAC or DC, suitable for 3-phase motors up to 5.5 kW at 400 V. It supports a high breaking capacity with rated service breaking capacities of 50 kA at 230 V and 440 V, 10 kA at 500 V, and 4 kA at 690 V. The device includes 1 NO and 1 NC auxiliary contacts and is designed for DIN rail mounting with screw fixing. It complies with IEC standards and offers suitability for isolation.

Key Specifications
• Amperage: 12 A
• Voltage: Rated operational voltage up to 690 V AC
• Poles: 3 Pole
• Coil Voltage: 110-240 V AC/DC
• Interrupt Rating: 50 kA at 230/440 V, 10 kA at 500 V, 4 kA at 690 V
• Mounting Type: DIN Rail with screw fixing
• Auxiliary Contacts: 1 NO + 1 NC linked contacts
• Series/Frame: TeSys Ultra (LU2B)
• Control Circuit Voltage Limits: 88-264 V AC, 88-242 V DC in operation
• Suitability for Isolation: Yes
• Standards: IEC 60947-4-1, IEC 60947-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LU2B12FU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : LU2B
• Amperage : 12
• Poles : 3
• Coil Voltage Maximum : 110-220 VDC



Product Data

• UPC : 785901202547
• GTIN : 00389110362964
• Country of Origin : France
• Dimensions : 8.8 in (224 mm) x 1.8 in (45 mm) x 5.0 in (126 mm) (Height x Width x Depth)
• Weight : 2.855
