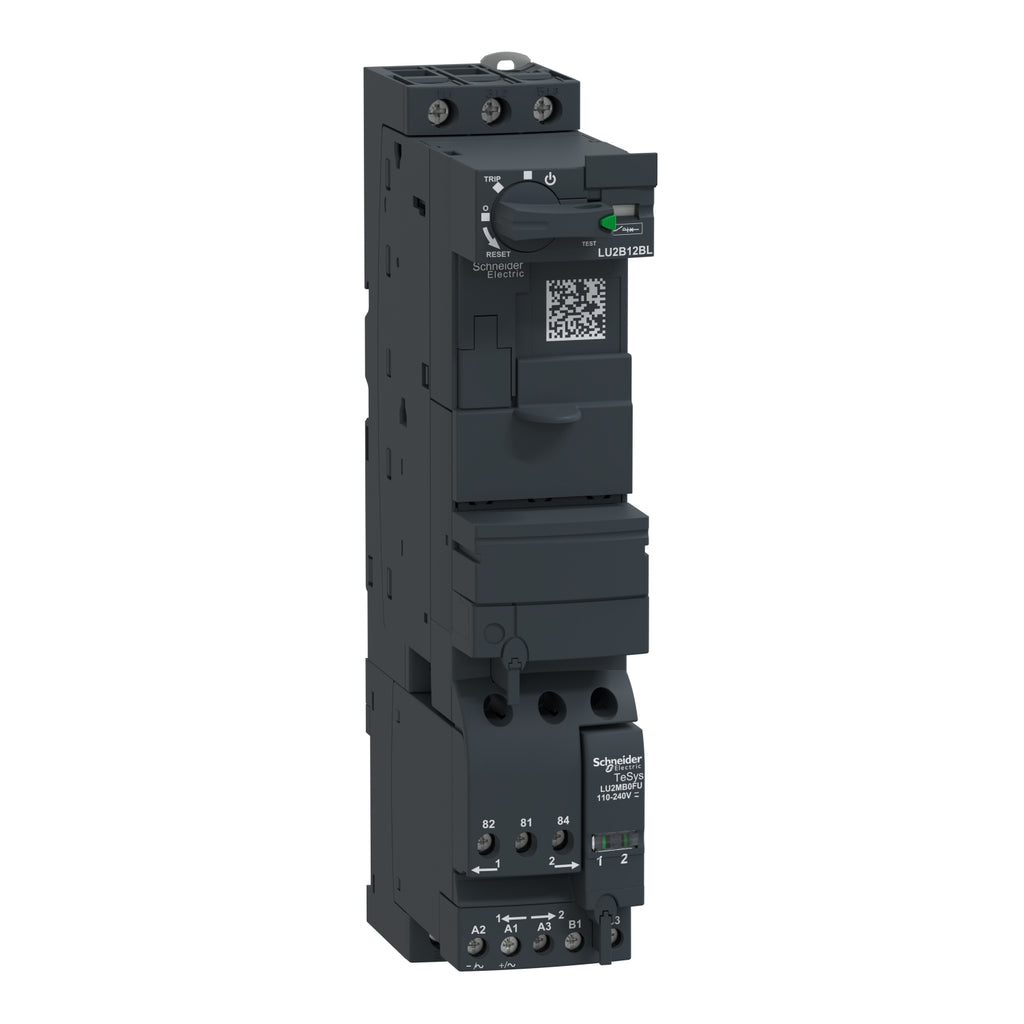

LU2B12BL - Square D TeSys Ultra 12A 690V 3-Pole Reversing Power Base with 24VDC Coil

LU2B12BL

LU2B12BL is a Square D TeSys Ultra reversing power base designed for motor control applications with a 12 ampere rating and 3 poles.

This power base operates at 690 VAC with a 24 VDC coil voltage and features screw clamp terminals. It is suitable for use with TeSys isolated motors and offers a high breaking capacity with a rated insulation voltage of 690 V. The compact design supports DIN-rail mounting and complies with IEC and UL standards, ensuring reliable motor protection and control.

• Manufacturer: Square D
• Series: TeSys Ultra (LU2B)
• Amperage: 12 A
• Voltage: 690 VAC
• Coil Voltage: 24 VDC
• Number of Poles: 3
• Mounting Type: DIN-rail
• Terminal Type: Screw Clamp
• Rated Insulation Voltage: 690 V
• High breaking capacity compliant with IEC 60947-6-2
• Mechanical durability: 15,000,000 cycles
• Certifications: UL 508, CSA C22.2 No 14

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LU2B12BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Amperage : 12
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 24 VDC

Product Data

• UPC : 785901519881
• GTIN : 03389110371277
• Country of Origin : France
• Dimensions : 8.8 in (224 mm) x 1.8 in (45 mm) x 5.0 in (126 mm) (Height x Width x Depth)
• Weight : 2.848
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
