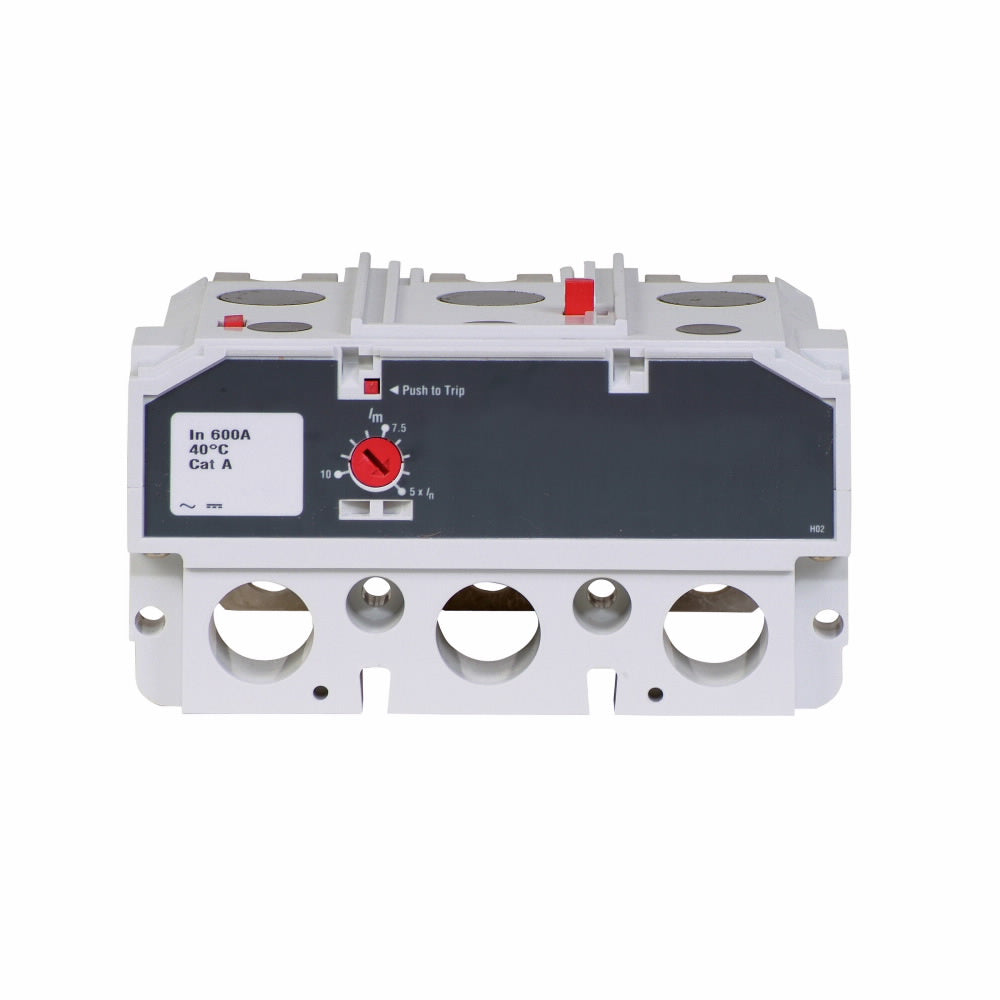

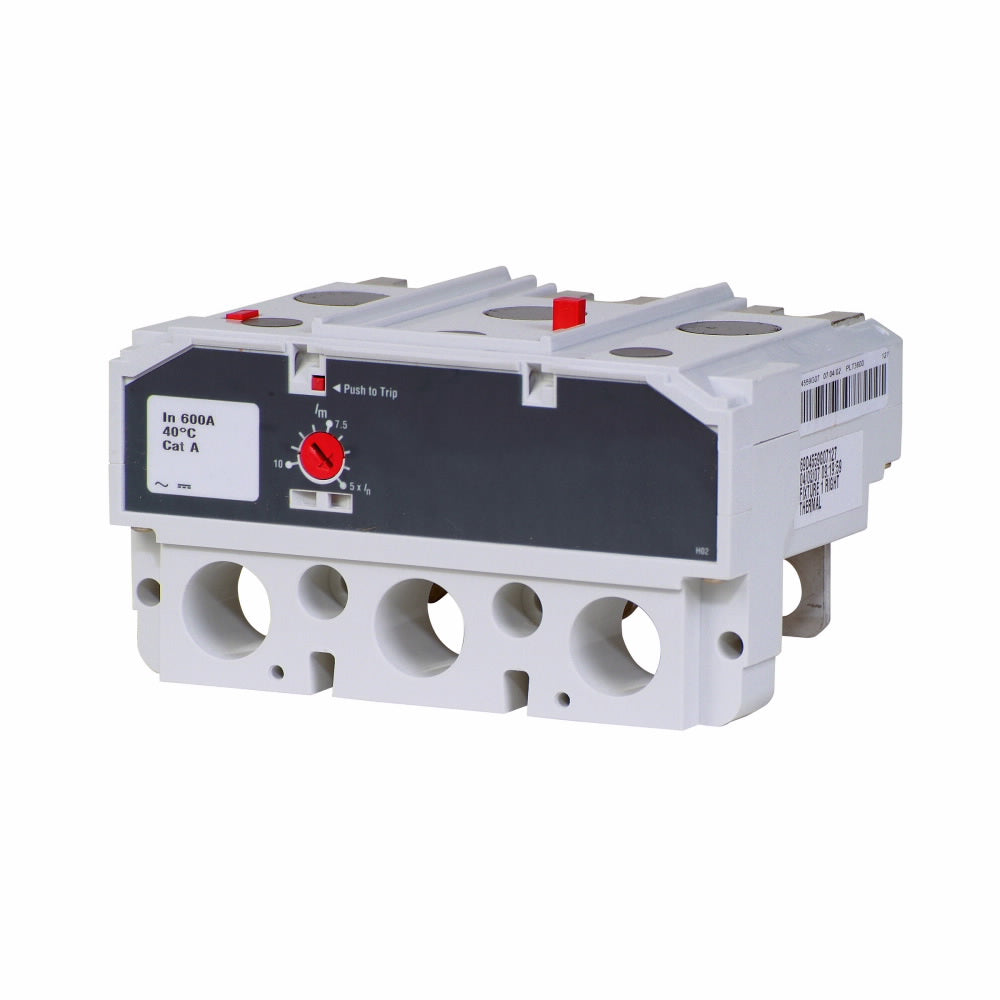

LT3600FA - Cutler Hammer 600A 600V 3-Pole Adjustable Thermal Magnetic Trip Unit Series G Frame J-K

LT3600FA

LT3600FA is a Cutler Hammer Series G trip unit designed for 600 amp, 600 volt, three-pole circuit breakers with adjustable thermal magnetic protection.LT3600FA trip unit fits LT molded case circuit breakers, Frame J-K, Series G, providing fixed thermal and adjustable magnetic trip settings for reliable circuit protection. It is suitable for IEC rated Series C-LW, HLW, and LWC frame types and offers bolt-on mounting. This trip unit is UL and IEC approved, ensuring compliance with industry standards.

Key Specifications
• Amperage Rating: 600 A
• Voltage Rating: 600 V
• Poles: 3
• Trip Type: Fixed Thermal, Adjustable Magnetic (T185)
• Frame Size: J-K
• Series: G
• Mounting Type: Bolt-on
• Approvals: UL, IEC
• Interrupt Rating: Contact Manufacturer
• Product Weight: 2.03 lb
• Dimensions: 8.5 in depth x 4.5 in width x 4 in height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LT3600FA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Series G
• Type : LT
• Voltage : 600
• Amperage : 600
• Poles : 3
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Amperage Maximum : 600
• Amperage Minimum : 600
• Protection : Thermal Magnetic
• Compatible Frames : LW,HLW,LWC

Product Data

• UPC : 782116336258
• GTIN : 00782116336258
• Country of Origin : United States
• Dimensions : 8.5 in x 4 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 2.03
