Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
LRD4369

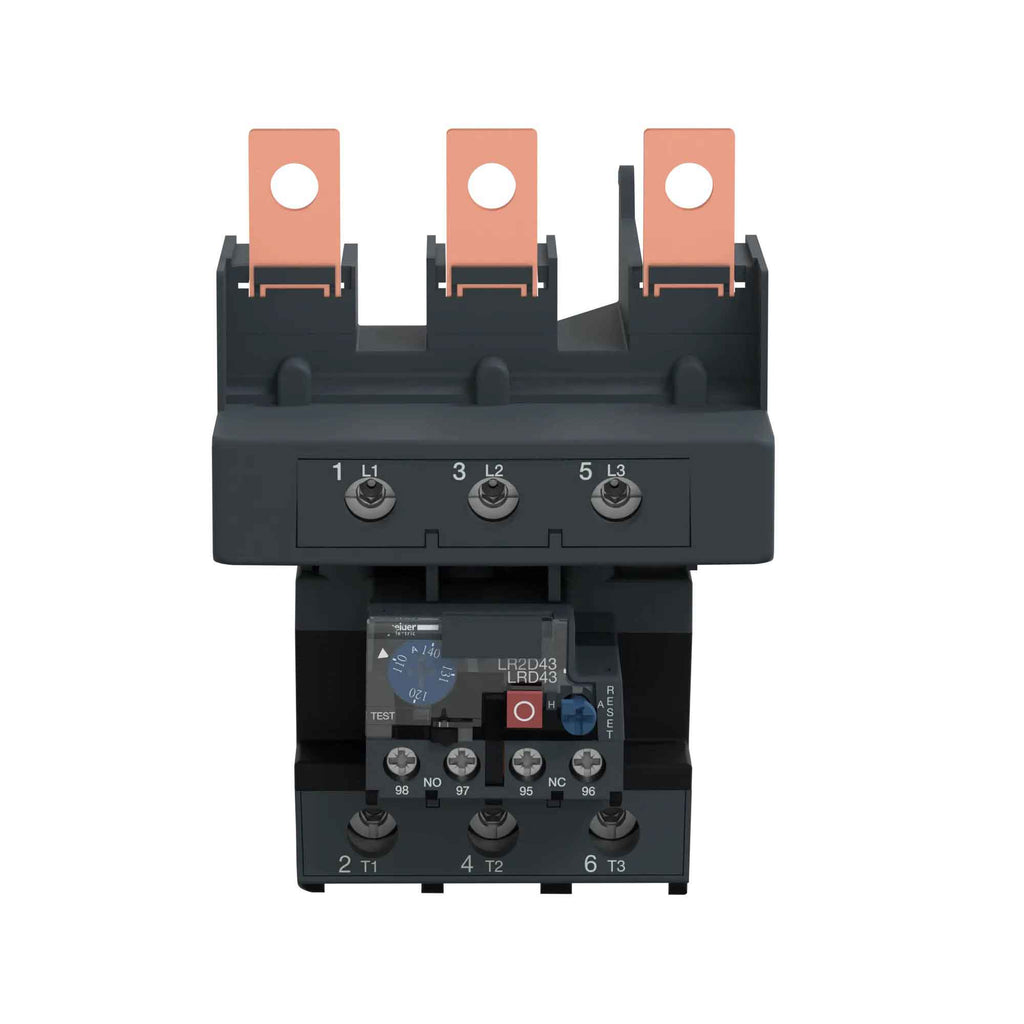

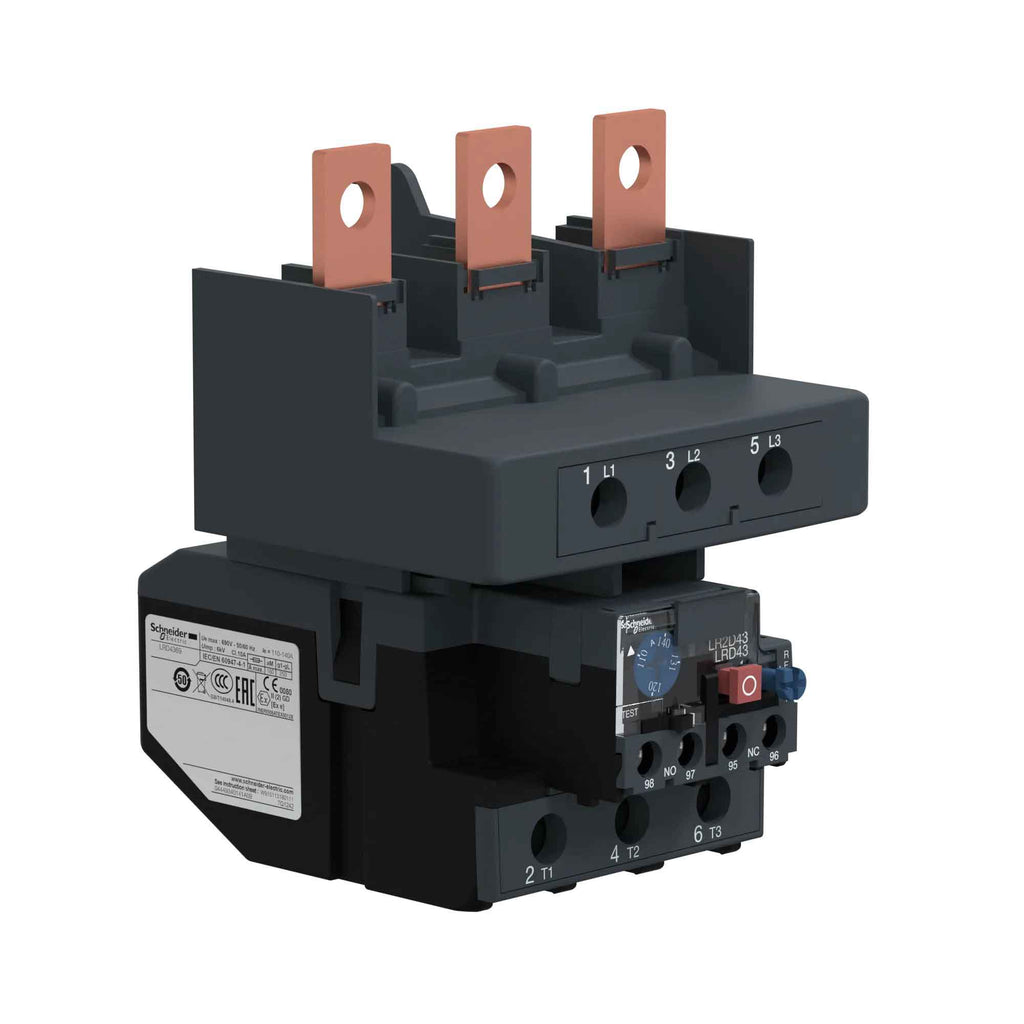

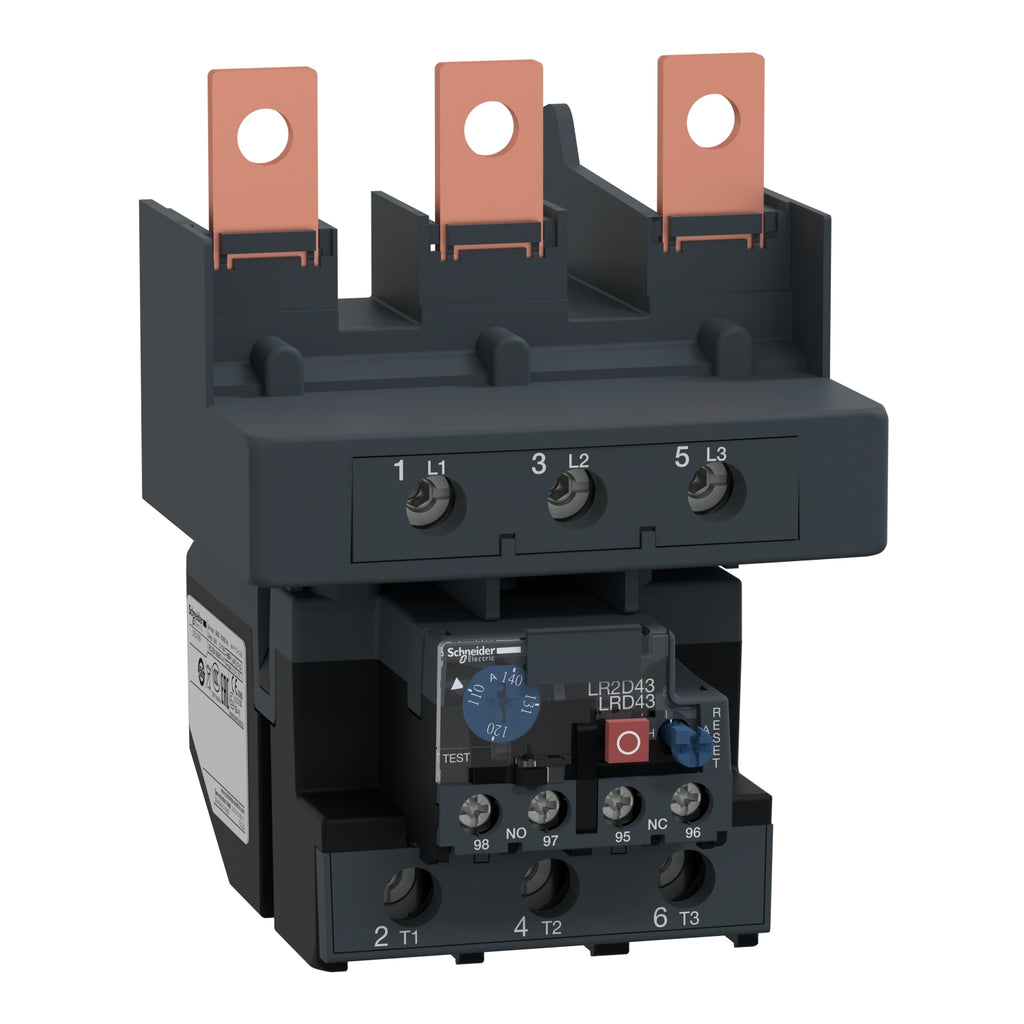

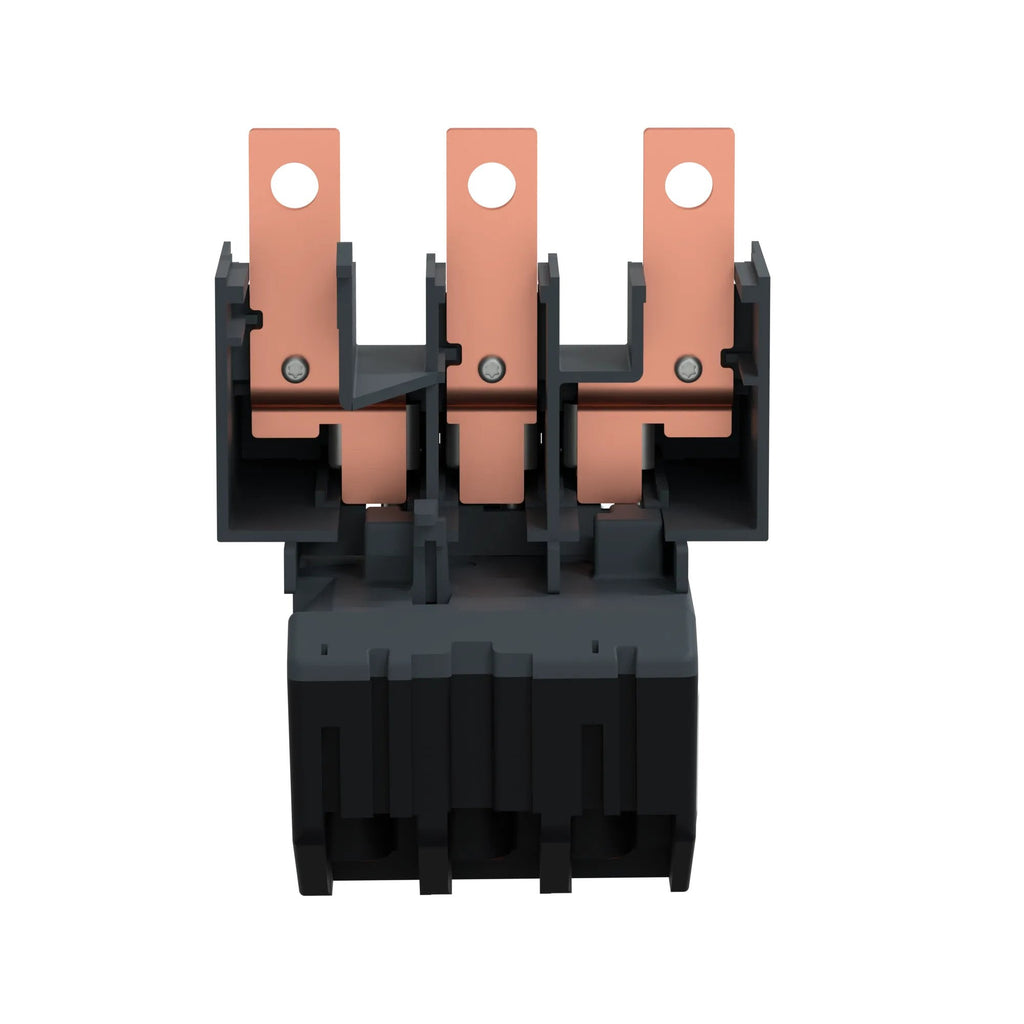

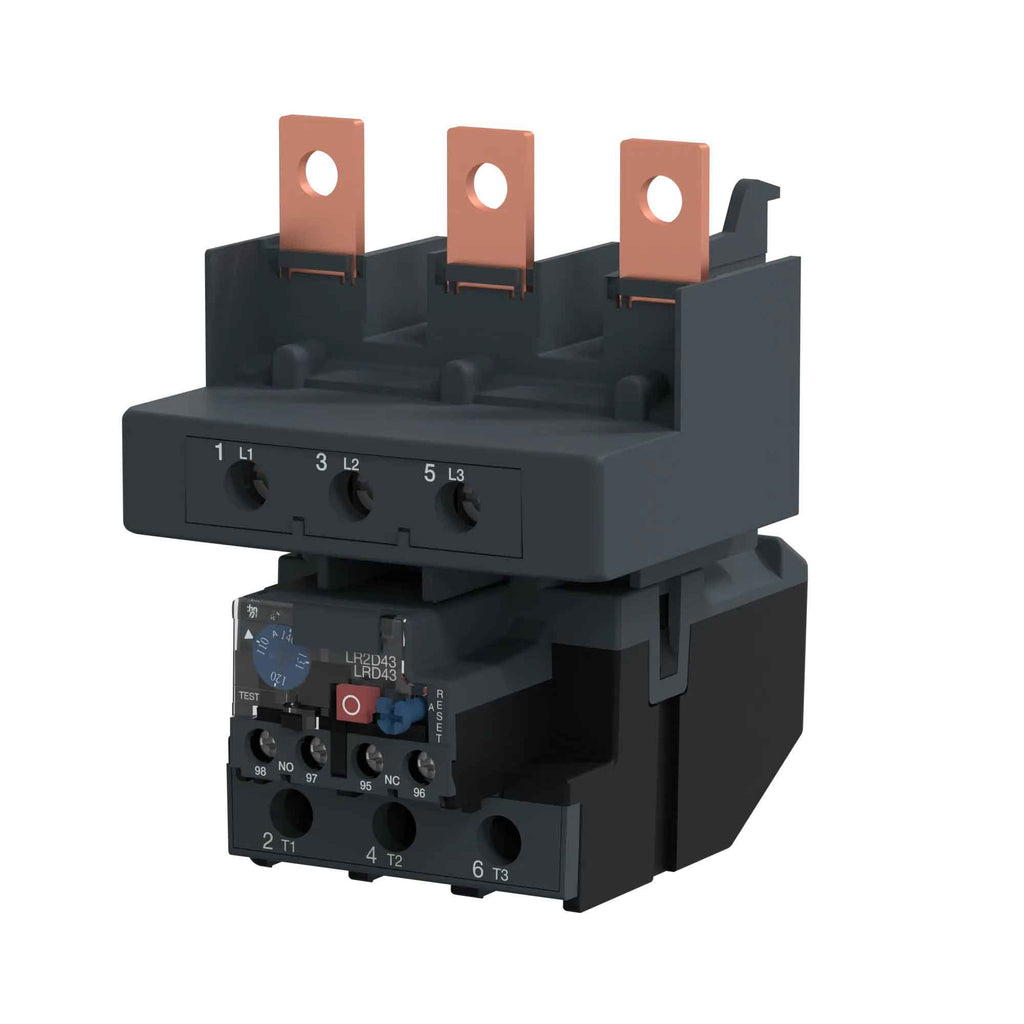

LRD4369 is a thermal overload relay from Telemecanique designed for motor control applications with an adjustable amperage range of 110 to 140 amps.This thermal overload relay features a 3-pole design, is part of the TeSys D series, and is suitable for use with LC1D150 contactors. It supports voltages up to 600V and complies with IEC 60947-4-1 standards. The relay offers Class 10 trip characteristics and is RoHS3 compliant.
- Key Specifications
- Amperage Range: 110-140 A adjustable
- Poles: 3
- Series: TeSys D
- Relay Style: Thermal overload
- Voltage Rating: Up to 600 V
- Trip Class: 10
- Mounting Type: Compatible with LC1D150 contactors
- Standards: IEC 60947-4-1 compliant
- RoHS Status: ROHS3 compliant
- Country of Origin: France
- Weight: Approximately 1.98 lb
Specifications
- Part Number: LRD4369
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LRD
- Voltage : 600/690VAC
- Phase : 3
- Poles : 3
- Temp Rating : 28-158 ¡F (-20-60 ¡C)
- Relay Style : Thermal
- Amperage Maximum : 140
- Amperage Minimum : 110
Product Data
- UPC : 785901234487
- GTIN : 03389110523355
- Country of Origin : France
- Dimensions : x 5.2 in (132 mm) (Height x Depth)
- Weight : 1.836
- Temp Rating : 28-158 ¡F (-20-60 ¡C)
- Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
