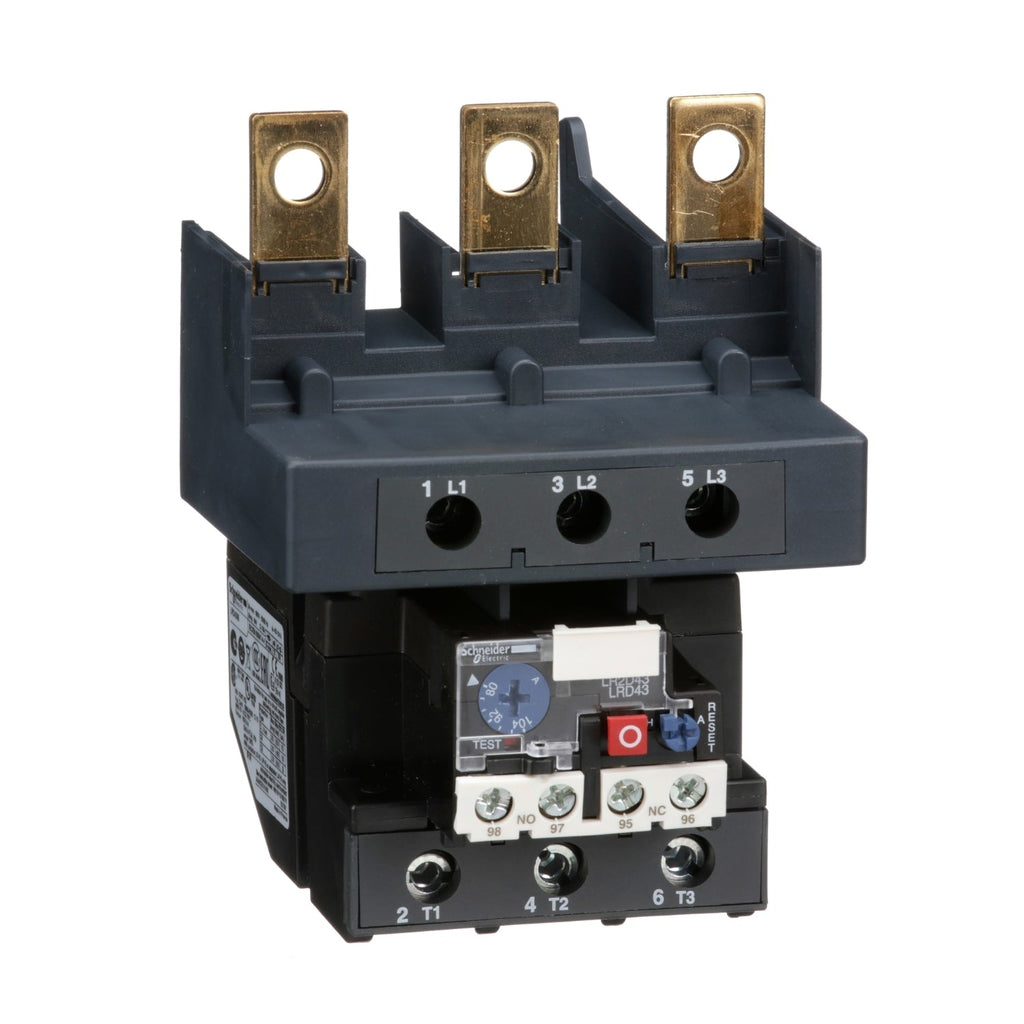

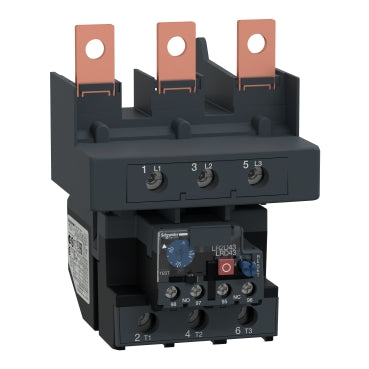

LRD4365 - Telemecanique Thermal Overload Relay 80-104A 3-Pole Class 10A 690V AC Motor Control

LRD4365

LRD4365 is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 80 to 104 amperes.This 3-pole relay features Class 10A tripping characteristics, suitable for use with TeSys D115-D150 contactors. It supports system voltages up to 690 V AC at frequencies from 0 to 400 Hz and includes 1 normally open and 1 normally closed auxiliary contact. The device provides phase failure sensitivity, thermal protection adjustment, and is certified to multiple standards including CE, UL 508, CSA, and ATEX.

Key Specifications
• Amperage Range: 80-104 A adjustable
• Voltage Rating: Up to 690 V AC
• Poles: 3-pole
• Trip Class: 10A
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: For TeSys D115-D150 contactors
• Interrupt Rating: Compliant with IEC 60947-4-1
• Operating Frequency: 0-400 Hz
• Certifications: CE, UL 508, CSA C22.2 No. 14, ATEX, LROS, DNV, CCC, BV
• Thermal Protection Adjustment Range: 80-104 A
• Phase Failure Sensitivity: Trips at 130% of Ir on two phases
• Ambient Operating Temperature: -20 to (more...)


  Specifications

  • Part Number: LRD4365
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 104
  • Amperage Minimum : 80



  Product Data

  • UPC : 038911052333
  • GTIN : 03389110523331
  • Country of Origin : France
  • Dimensions : x 5.2 in (132 mm) (Height x Depth)
  • Weight : 1.843
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
