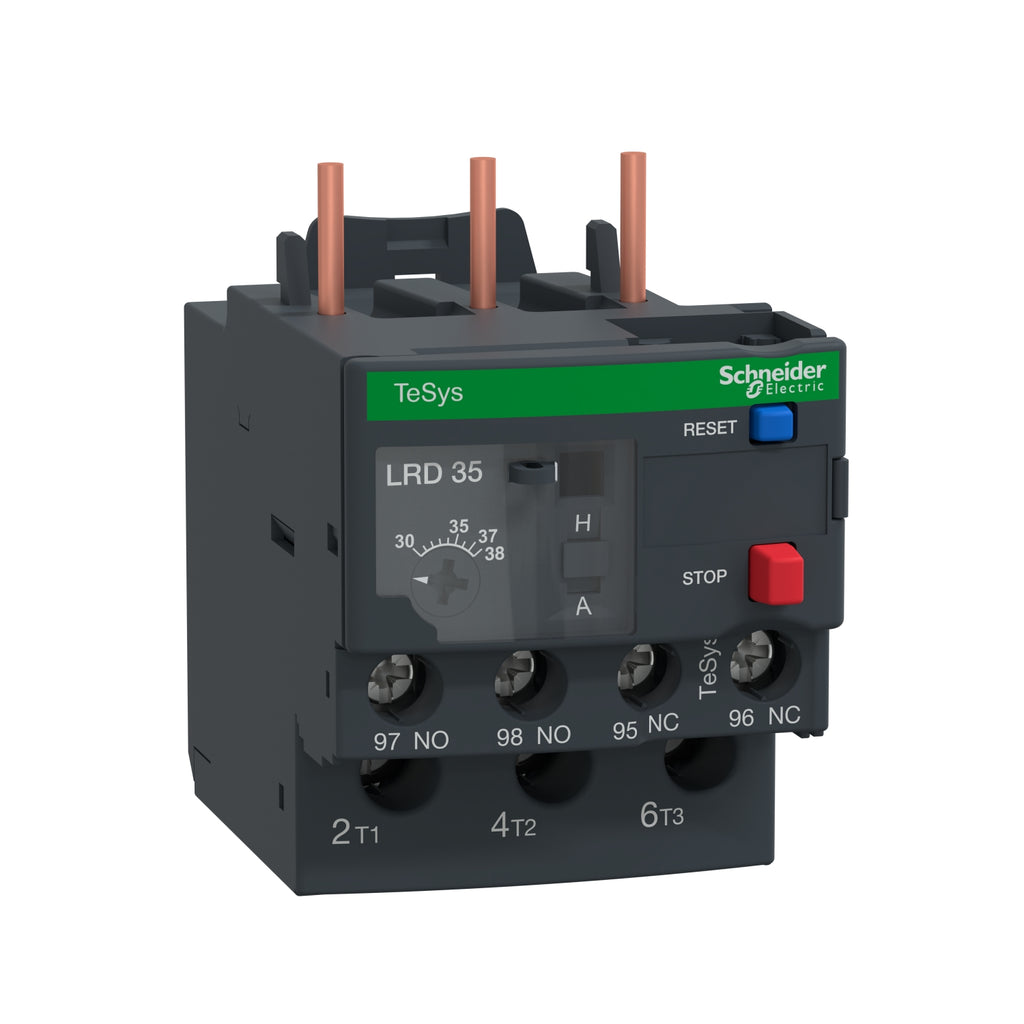

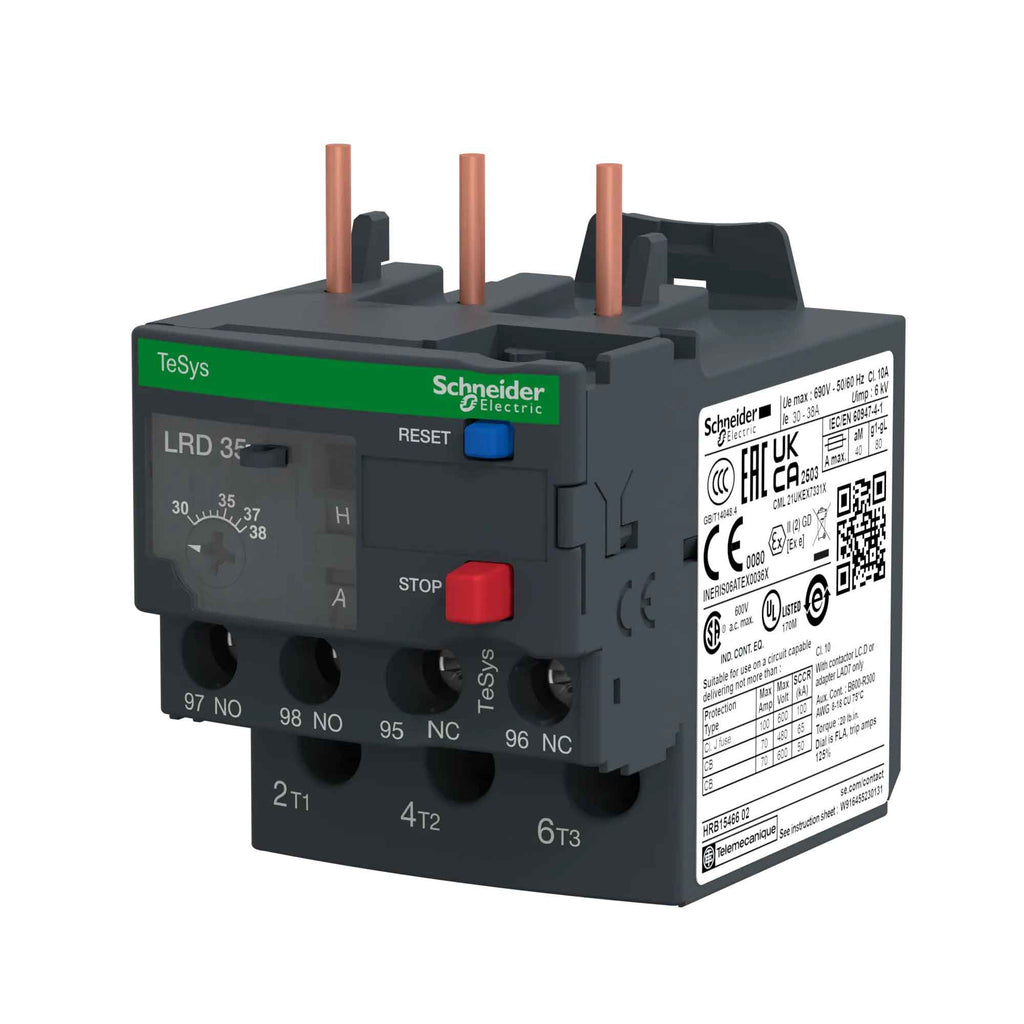

LRD35 - Schneider Electric / Telemecanique TeSys Deca Thermal Overload Relay, 30-38A, 690VAC, 3-Pole, Class 10, Direct Mount, Screw Terminals, Manual/Auto Reset, Phase Loss Sensitivity

LRD35

This 3-pole overload relay offers adjustable thermal protection from 30 to 38 amps, with a maximum voltage rating of 690VAC. It features Class 10 trip characteristics, ensuring fast response to overloads, and includes phase loss sensitivity for enhanced motor safety. The LRD35 is designed for direct mounting to LC1D32 TeSys contactors, with screw terminals for secure connections. It provides both manual and automatic reset options, a test trip button for verification, and a tamper-resistant setting window. The relay is suitable for protecting 3-phase motors up to 18.5kW at 400V.

Key Specifications
• Amperage: 30Ð38A adjustable
• Voltage: 690VAC
• Poles: 3
• Mounting Type: Direct mount (LC1D32 TeSys contactor)
• Interrupt Rating: 690VAC
• Series/Frame: TeSys Deca
• Trip Unit: Class 10 (trips in 10 seconds or less at 600% of setting)
• Certifications: IEC 60947-4-1, RoHS compliant
• Reset: Manual or automatic

Specifications

• Part Number: LRD35
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 38
• Amperage Minimum : 30



Product Data

• UPC : 785901206828
• GTIN : 03389110346862
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.309
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
