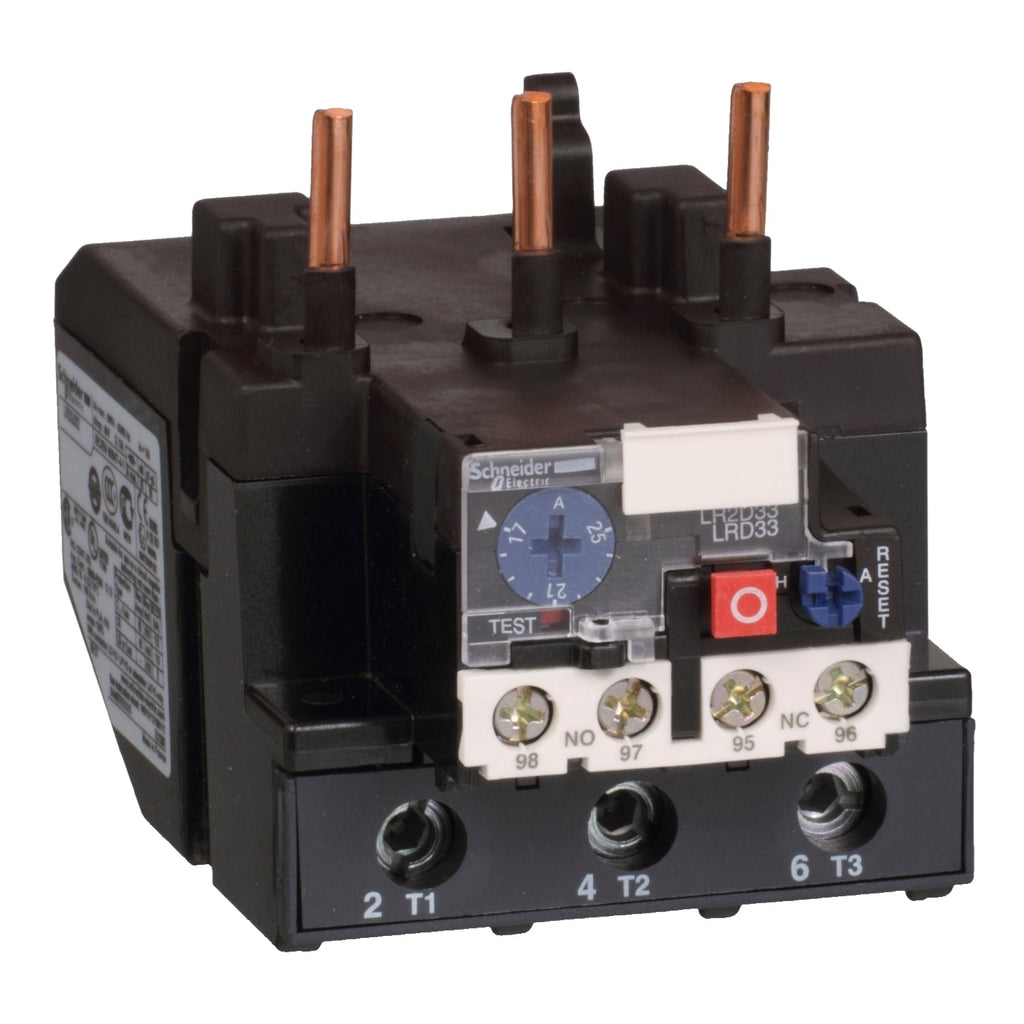

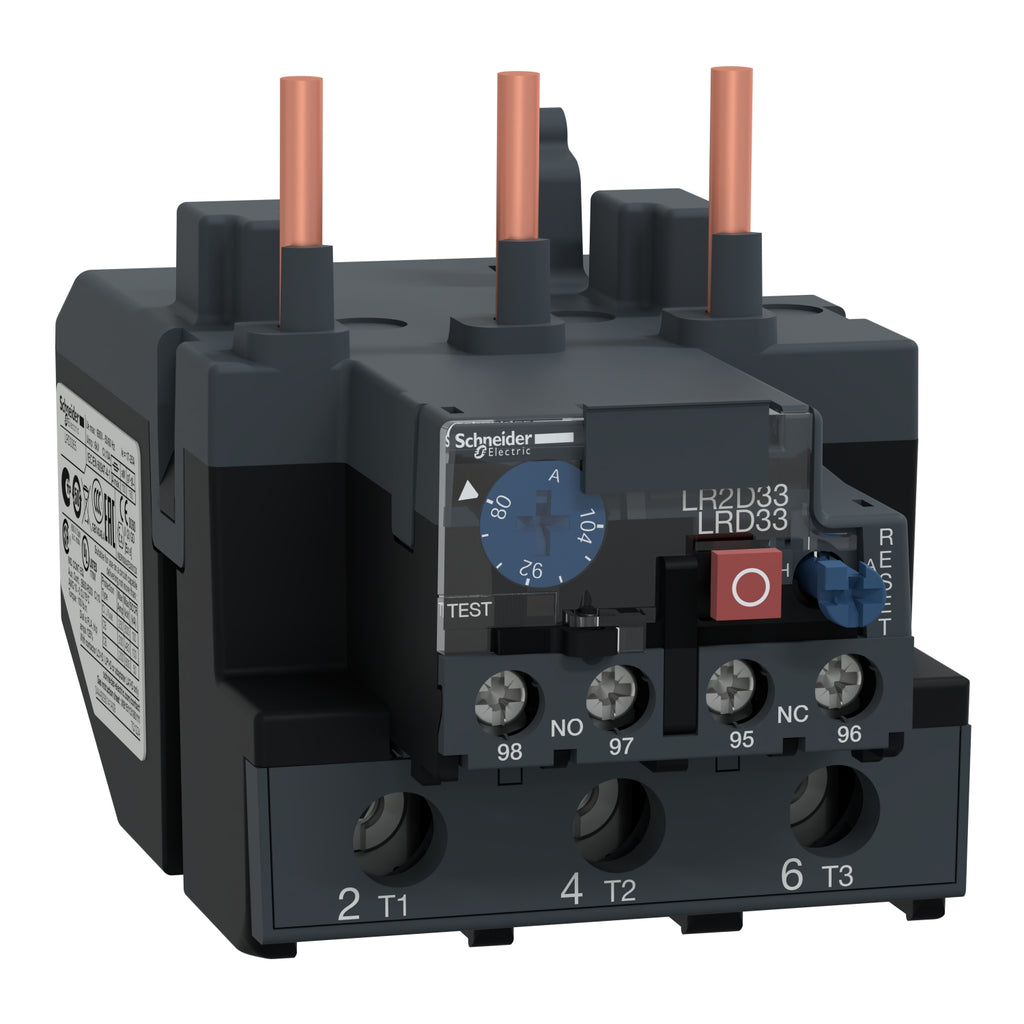

LRD3365 - Telemecanique TeSys LRD Thermal Overload Relay 80-104A, Class 10A, 3-Pole, 690V AC, Phase Loss Protection

LRD3365

LRD3365 is a Telemecanique TeSys LRD thermal overload relay designed for motor protection with an adjustable current range of 80 to 104 amps and Class 10A tripping.LRD3365 features phase loss sensitivity, manual or automatic reset options, and screw clamp terminals for easy installation. It is compatible with LC1D80 and LC1D95 contactors and supports mounting on DIN rail or plate with accessories. Rated insulation voltage is 1000 V IEC, with operational voltage up to 690 V AC and a tripping threshold of 1.14 ± 0.06 times the rated current. The relay meets multiple certifications including IEC 60947-4-1, UL, CSA, and CE.

Key Specifications
• Adjustable current range: 80-104 A
• Tripping class: 10A (trip within 10 seconds)
• Poles: 3-pole
• Rated operational voltage: 690 V AC, 0-400 Hz
• Rated insulation voltage: 1000 V IEC, 600 V UL/CSA
• Phase loss and phase unbalance protection
• Reset: Manual or automatic
• Mounting: DIN rail or plate with accessories
• Terminals: Screw clamp
• Compatible with TeSys LC1D80 and LC1D95 contactors
• Standard(more...)


  Specifications

  • Part Number: LRD3365
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 104
  • Amperage Minimum : 80



  Product Data

  • UPC : 785901234449
  • GTIN : 03389110520064
  • Country of Origin : France
  • Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
  • Weight : 1.197
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
