LRD3361 - Telemecanique Thermal Overload Relay 55-70A 3-Pole Class 10A for LC1D80 Contactor

LRD3361

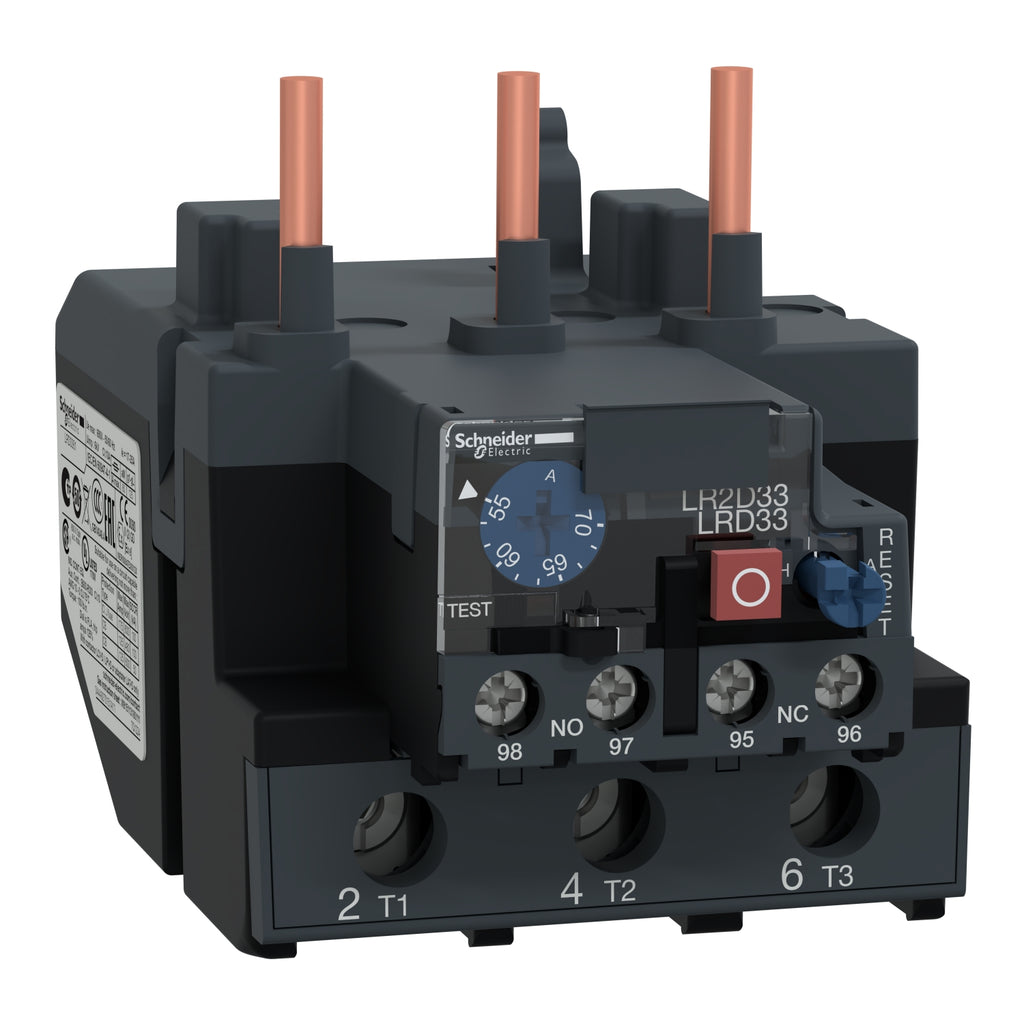

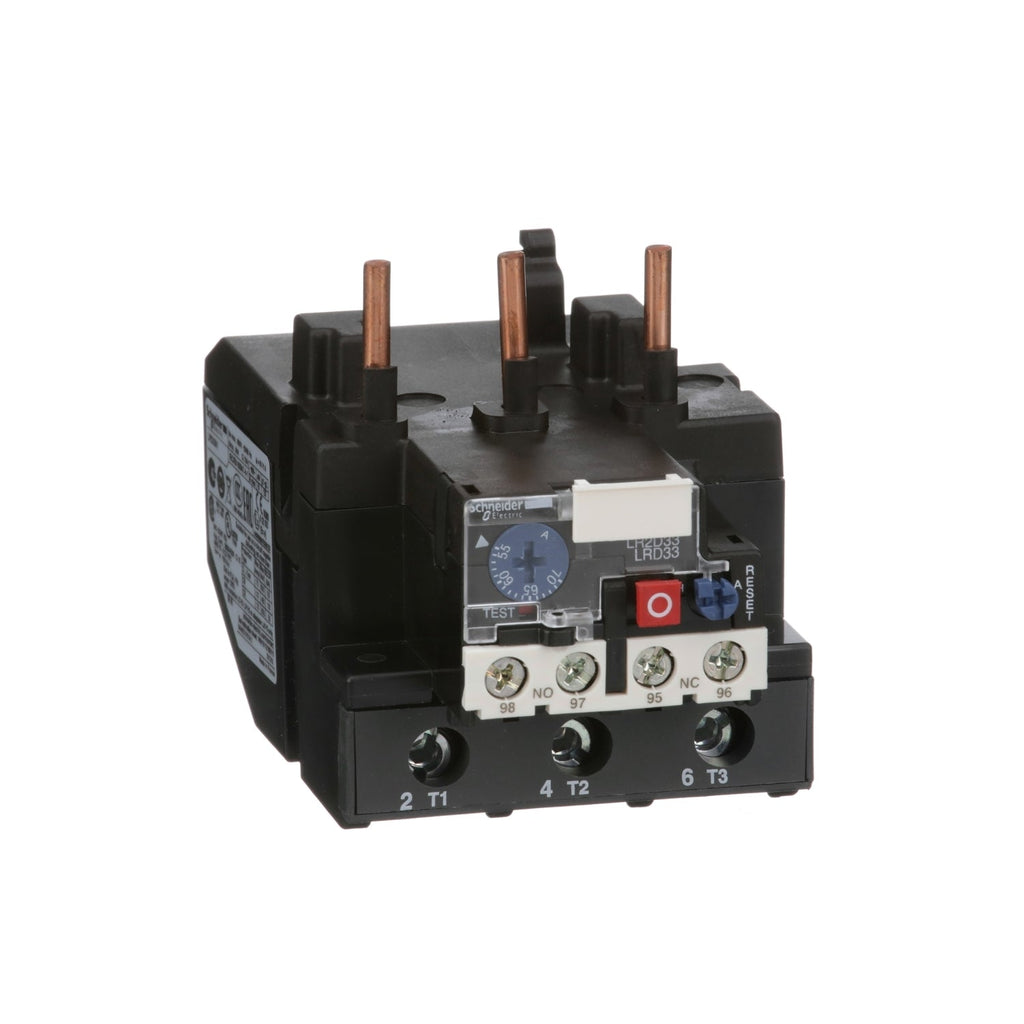

LRD3361 is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 55 to 70 amps.This 3-pole overload relay features Class 10 trip characteristics, phase loss sensitivity, and mounts directly to LC1D50 through LC1D80 TeSys contactors. It offers manual or automatic reset options and screw terminals for secure wiring.

Key Specifications
• Adjustable amperage range: 55 to 70 amps
• 3-pole thermal overload relay
• Class 10 trip unit for fast motor protection
• Phase loss sensitivity included
• Manual or automatic reset selectable
• Screw terminal connections
• Mounts to LC1D50, LC1D65, LC1D80 contactors
• Compatible with TeSys series contactors
• Trip class: 10 (trips within 10 seconds)
• Ambient compensated bimetallic design
• Isolated normally closed trip and normally open alarm contacts
• Test trip button for easy verification

At Essential Parts, we offer fast shipping, lowest price, and (more...)

Specifications

• Part Number: LRD3361
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 70
• Amperage Minimum : 55

Product Data

• UPC : 785901208327
• GTIN : 03389110519983
• Country of Origin : France
• Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
• Weight : 1.116
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
