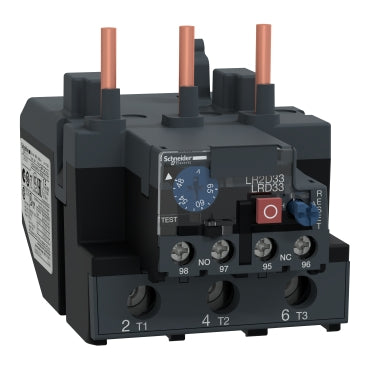

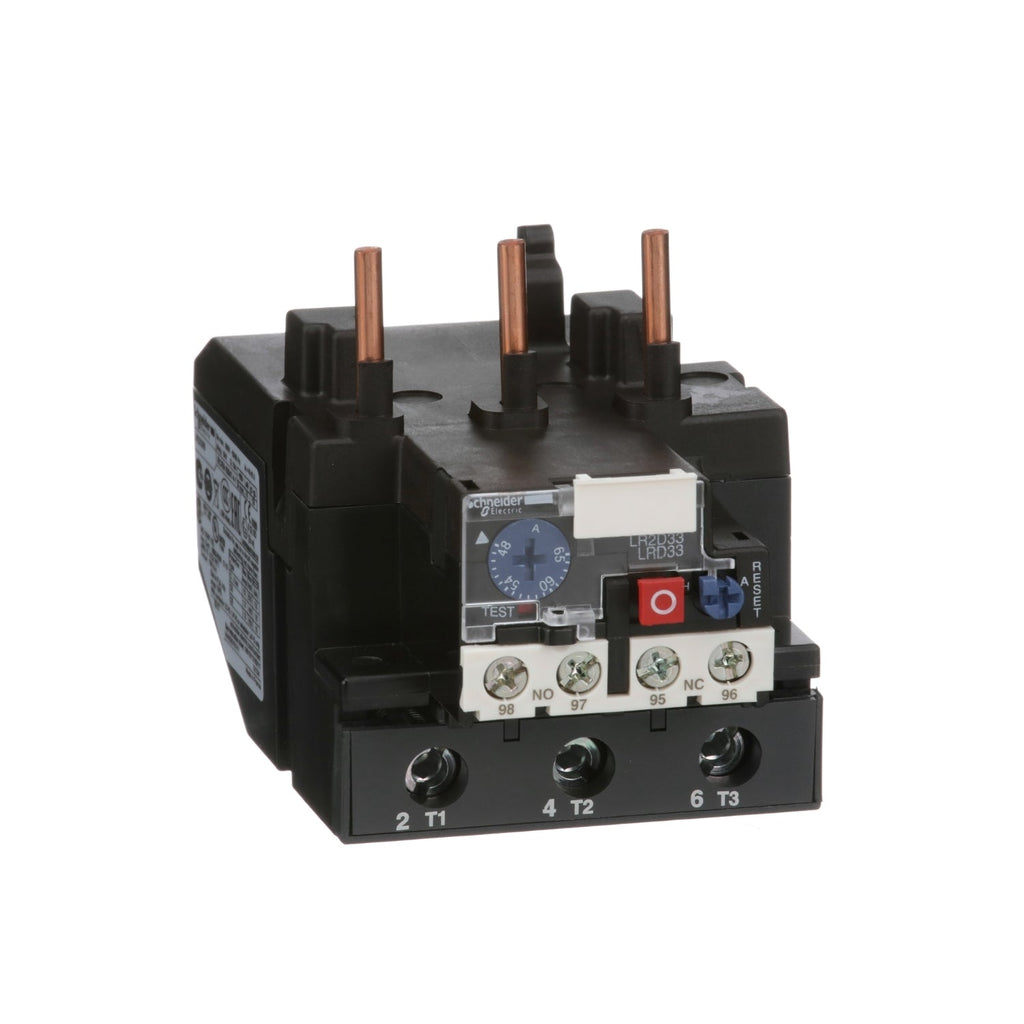

LRD3359 - Telemecanique 48-65A 3-Pole Thermal Overload Relay, Class 10A, Screw Terminal, Phase Loss Sensitivity, Manual/Auto Reset, TeSys D Series, DIN Rail or Plate Mount

LRD3359

This adjustable overload relay offers reliable protection against overloads, phase loss, and load unbalance, with a clear, lockable setting dial and both manual and automatic reset options. It is easy to install on DIN rail or by screw mounting and is compatible with TeSys D contactors LC1D40 through LC1D95. The transparent, tamper-resistant cover ensures settings remain secure, and the device is certified to international standards for wide application.

Key Specifications
• Amperage: Adjustable 48Ð65A
• Voltage: 690V AC, 1000V insulation (power circuit)
• Poles: 3
• Mounting Type: DIN rail or plate (with accessories)
• Interrupt Rating: Not specified in available data
• Series/Frame: TeSys D
• Trip Unit: Bimetallic, ambient compensated, Class 10A (trips in 10 seconds or less at 600% of setting)
• Certifications: IEC 60947-4-1, CSA, UL
• Phase Loss Sensitivity: Yes
• Reset: Manual or automatic

• Specifications

  • Part Number: LRD3359
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 65
  • Amperage Minimum : 48



  Product Data

  • UPC : 785901208310
  • GTIN : 03389110519976
  • Country of Origin : France
  • Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
  • Weight : 1.08
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
