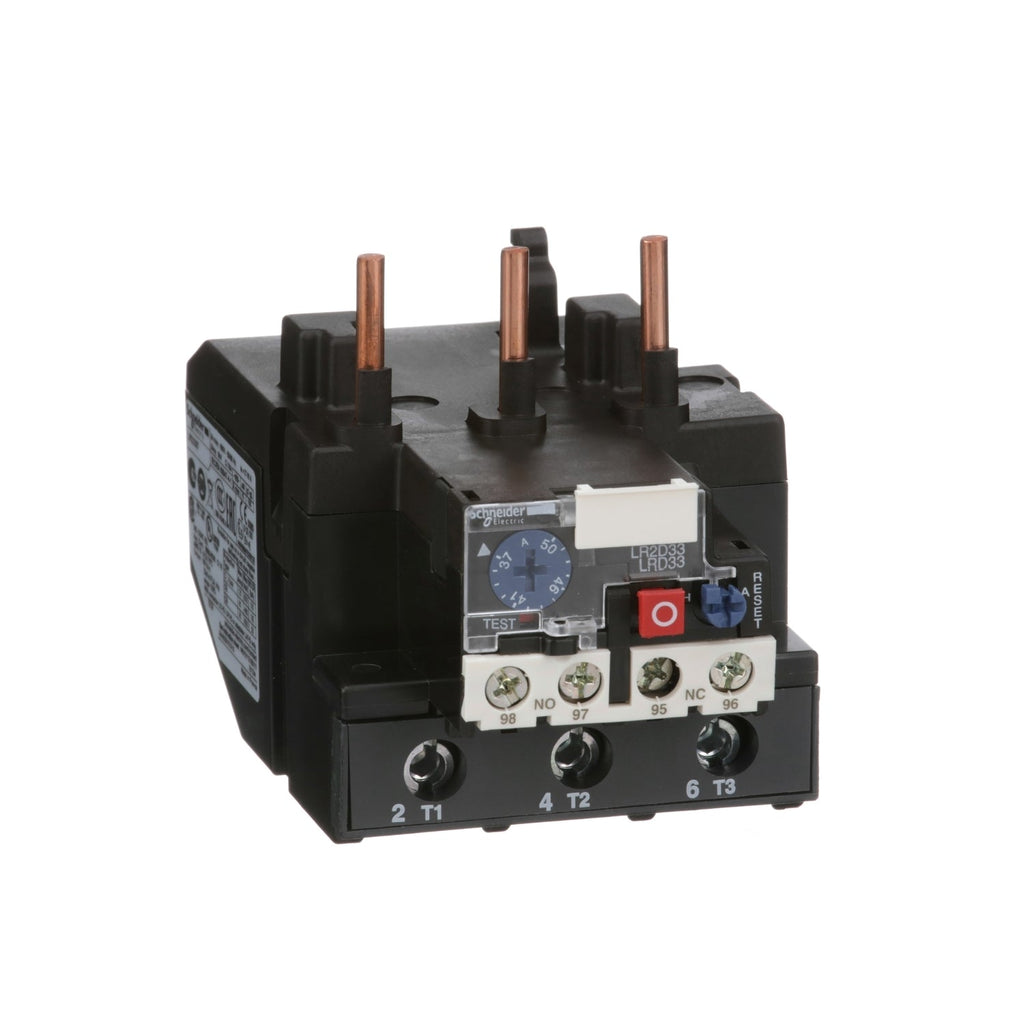

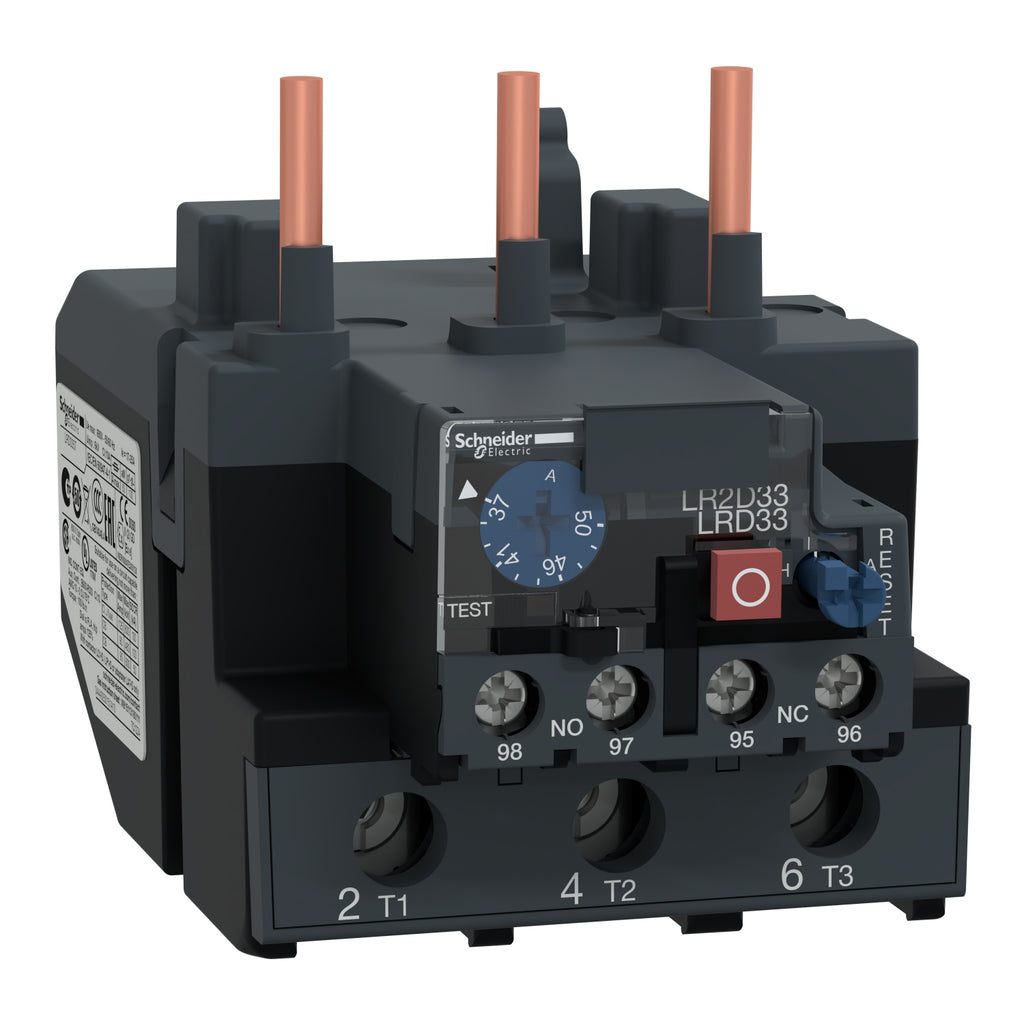

LRD3357 - Telemecanique 37-50A Thermal Overload Relay 3-Pole Class 10A for LC1D80/LC1D95

Save $15.74
SKU: LRD3357-New
Condition: New
Price:
$155.87 $171.61
Stock:
27 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LRD3357 - Telemecanique Overload Relay Amp Min 37A - Amp Max 50A - Essential Electric Supply
LRD3357 - Telemecanique 37-50A Thermal Overload Relay 3-Pole Class 10A for LC1D80/LC1D95 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LRD3357 - Telemecanique Overload Relay Amp Min 37A - Amp Max 50A - Essential Electric Supply
LRD3357 - Telemecanique 37-50A Thermal Overload Relay 3-Pole Class 10A for LC1D80/LC1D95 - Essential Electric Supply

Description

LRD3357


LRD3357 is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 37 to 50 amps.This 3-pole relay features class 10A thermal protection, suitable for use with LC1D80 and LC1D95 contactors. It supports AC and DC networks up to 1000 V insulation voltage and 600 V power circuit voltage, with a frequency range of 0 to 400 Hz. The relay mounts on plates or rails with specific accessories and includes phase failure and load unbalance detection. It has a transparent cover lockable by sealing to prevent misoperation and is certified to IEC, UL, and CSA standards.
  • Adjustable thermal protection range: 37-50 A
  • 3-pole design for motor protection
  • Class 10A thermal overload
  • Rated insulation voltage: 1000 V (IEC 60947-4-1)
  • Power circuit voltage: 600 V (UL, CSA)
  • Network frequency: 0-400 Hz
  • Mounting: plate or rail with accessories
  • Phase failure and load unbalance detection
  • Auxiliary contacts: 1 NO + 1 NC
  • Tripping threshold: 1.14 +/- 0.06 x Ir
  • Certifications: IEC, UL, CSA
At Essential (more...)

Specifications

  • Part Number: LRD3357
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 50
  • Amperage Minimum : 37

Product Data

  • UPC : 785901519959
  • GTIN : 03389110519952
  • Country of Origin : France
  • Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
  • Weight : 1.085
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
