LRD3355 - Telemecanique Thermal Overload Relay 30-40A 3-Pole Class 10A for Motor Control

LRD3355

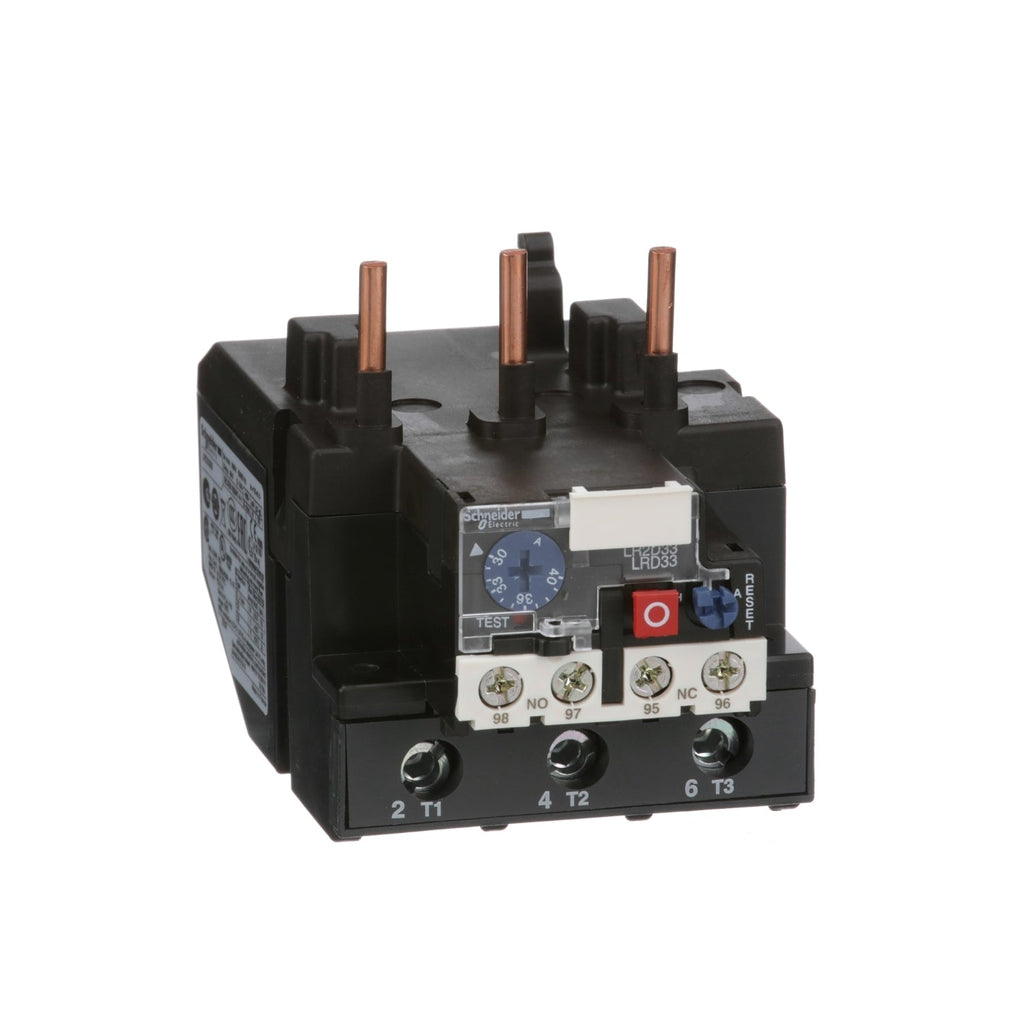

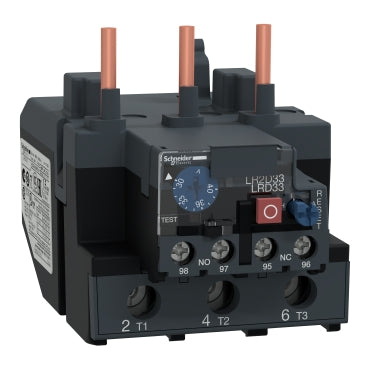

LRD3355 is a Telemecanique thermal overload relay designed for motor protection with an adjustable amperage range of 30 to 40 amps.This 3-pole overload relay features Class 10 trip protection, phase loss sensitivity, and can be reset manually or automatically. It mounts easily on DIN rail or screw fixing and includes screw clamp terminals for secure connections. The device is compatible with LC1D40 through LC1D95 contactors and is certified to multiple standards for broad application.

• Adjustable current range: 30-40 Amps
• 3-pole thermal overload relay
• Class 10 trip unit
• Phase loss sensitivity included
• Manual or automatic reset option
• Screw clamp terminals
• Mounting: DIN rail or screw fixing
• Compatible with TeSys Deca contactors LC1D40 to LC1D95
• Trip class 10A (trips within 10 seconds)
• Transparent lockable cover for tamper resistance
• Certifications: Multi-standard certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to h(more...)

Specifications

• Part Number: LRD3355
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 40
• Amperage Minimum : 30

Product Data

• UPC : 785901519935
• GTIN : 03389110519938
• Country of Origin : France
• Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
• Weight : 1.098
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
