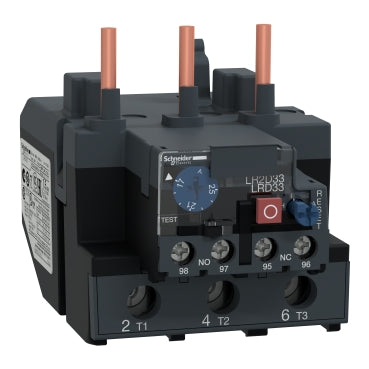

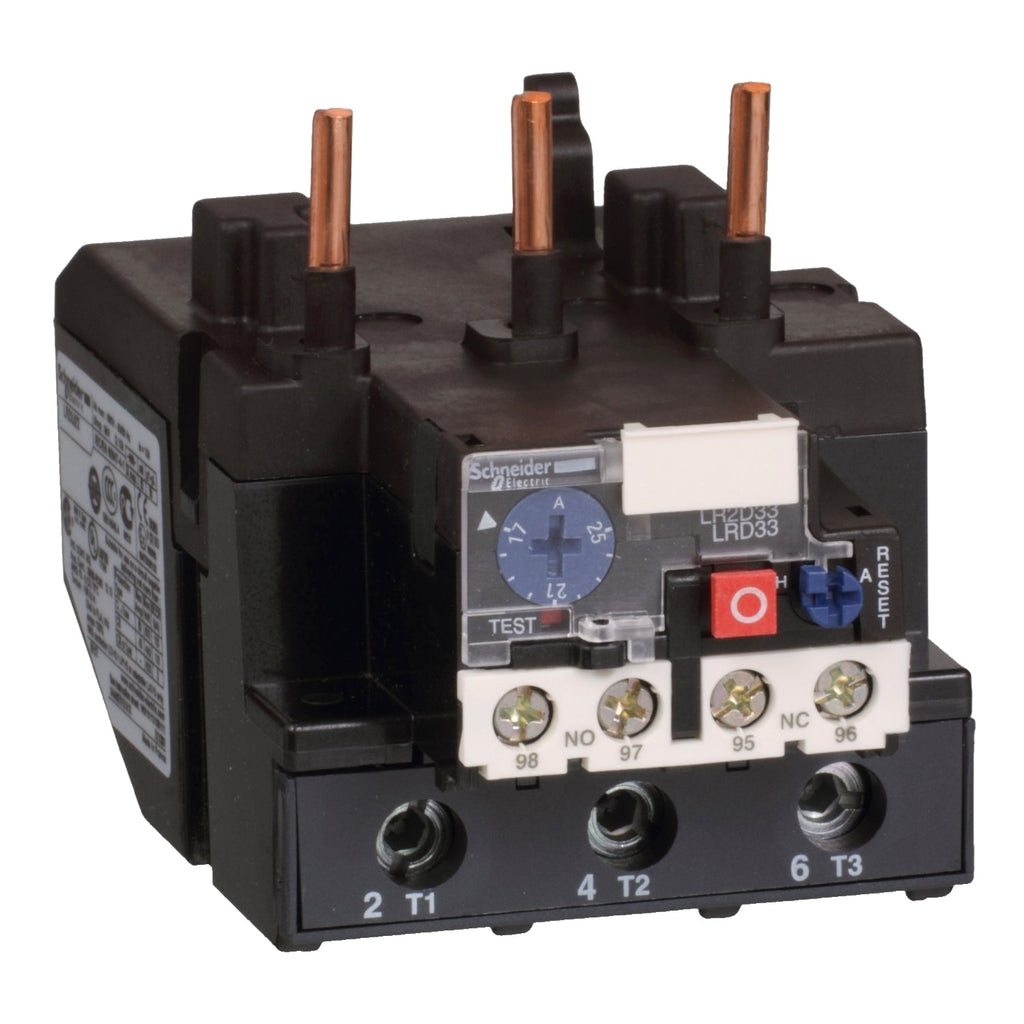

LRD3322 - Schneider Electric TeSys Deca Thermal Overload Relay 17-25A 3-Pole Class 10A

Save $50.46
SKU: LRD3322-New
Condition: New
Price:
$121.15 $171.61
Stock:
10 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LRD3322 - Essential Electric Supply
LRD3322 - Schneider Electric TeSys Deca Thermal Overload Relay 17-25A 3-Pole Class 10A - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LRD3322 - Essential Electric Supply
LRD3322 - Schneider Electric TeSys Deca Thermal Overload Relay 17-25A 3-Pole Class 10A - Essential Electric Supply

Description

LRD3322


LRD3322 is a Schneider Electric TeSys Deca thermal overload relay with adjustable current range from 17 to 25 amps and 3 poles for motor protection.This thermal overload relay provides Class 10A trip protection with phase loss sensitivity and ambient temperature compensation. It mounts directly to LC1D40 through LC1D65 TeSys contactors and features screw terminals for easy installation. The relay supports manual or automatic reset selectable by dial and includes isolated normally closed trip and normally open alarm contacts.
    Key Specifications
    • Amperage Range: 17 to 25 Amps adjustable
    • Poles: 3
    • Trip Class: 10A (trips within 10 seconds)
    • Mounting: Direct mount to LC1D40-LC1D65 contactors
    • Phase Loss Sensitivity: Yes
    • Reset Type: Manual or Automatic selectable
    • Terminals: Screw clamp
    • Voltage Rating: Up to 600V AC (per IEC 60947-4-1)
    • Series/Frame: TeSys Deca
    • Certifications: IEC 60947-4-1, CSA compliant
At Essential Parts, we offer fast shipping, lowest price, and expert(more...)

Specifications

  • Part Number: LRD3322
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 25
  • Amperage Minimum : 17

Product Data

  • UPC : 038911051982
  • GTIN : 03389110519822
  • Country of Origin : France
  • Dimensions : 3.2 in (81 mm) x 2.8 in (70 mm) x 4.5 in (115 mm) (Height x Width x Depth)
  • Weight : 1.098
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
