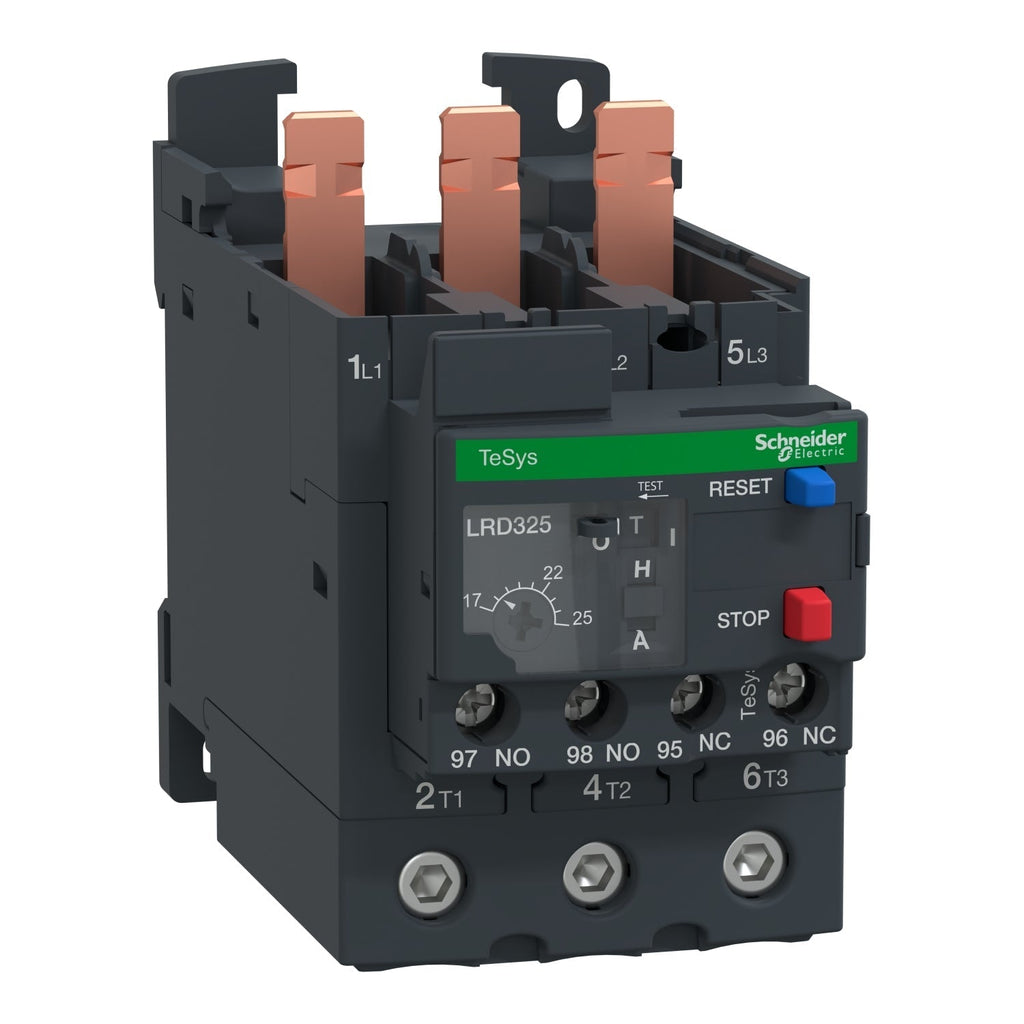

LRD325 - Schneider Electric Telemecanique TeSys LRD Thermal Overload Relay, 17-25A, 690VAC, 3 Pole, Class 10A, Direct Mount, Phase Unbalance Protection, IEC/UL/CSA/CCC/EAC/Marine Certified

LRD325

This bi-metallic thermal overload relay offers adjustable protection for 3-phase AC motors, featuring a thermal setting range of 17-25A, tripping class 10A, and phase unbalance detection. It is designed for direct mounting on TeSys D contactors (LC1D40A-D65A), providing a compact motor starter solution. The LRD325 includes manual test and reset buttons, automatic reset capability, a trip flag indicator, and 1NO+1NC auxiliary contacts for signaling. It is temperature compensated for accurate protection and supports remote control with optional accessories. Certified to international standards, it is suitable for global applications.

Key Specifications
• Amperage: 17-25A adjustable
• Voltage: 690VAC
• Poles: 3
• Mounting Type: Direct mount on TeSys D contactors
• Interrupt Rating: 10A (auxiliary contacts)
• Series/Frame: TeSys LRD (D-Line)
• Trip Unit: Bi-metallic, Class 10A
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
• Ph(more...)


  Specifications

  • Part Number: LRD325
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 25
  • Amperage Minimum : 16



  Product Data

  • UPC : 785901811602
  • GTIN : 03389119215473
  • Country of Origin : France
  • Dimensions : 2.8 in (70 mm) x 2.2 in (55 mm) x 4.8 in (123 mm) (Height x Width x Depth)
  • Weight : 0.86
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
