LRD313 - Telemecanique 9-13A Class 10A Thermal Overload Relay for 3-Phase Motor Protection

LRD313

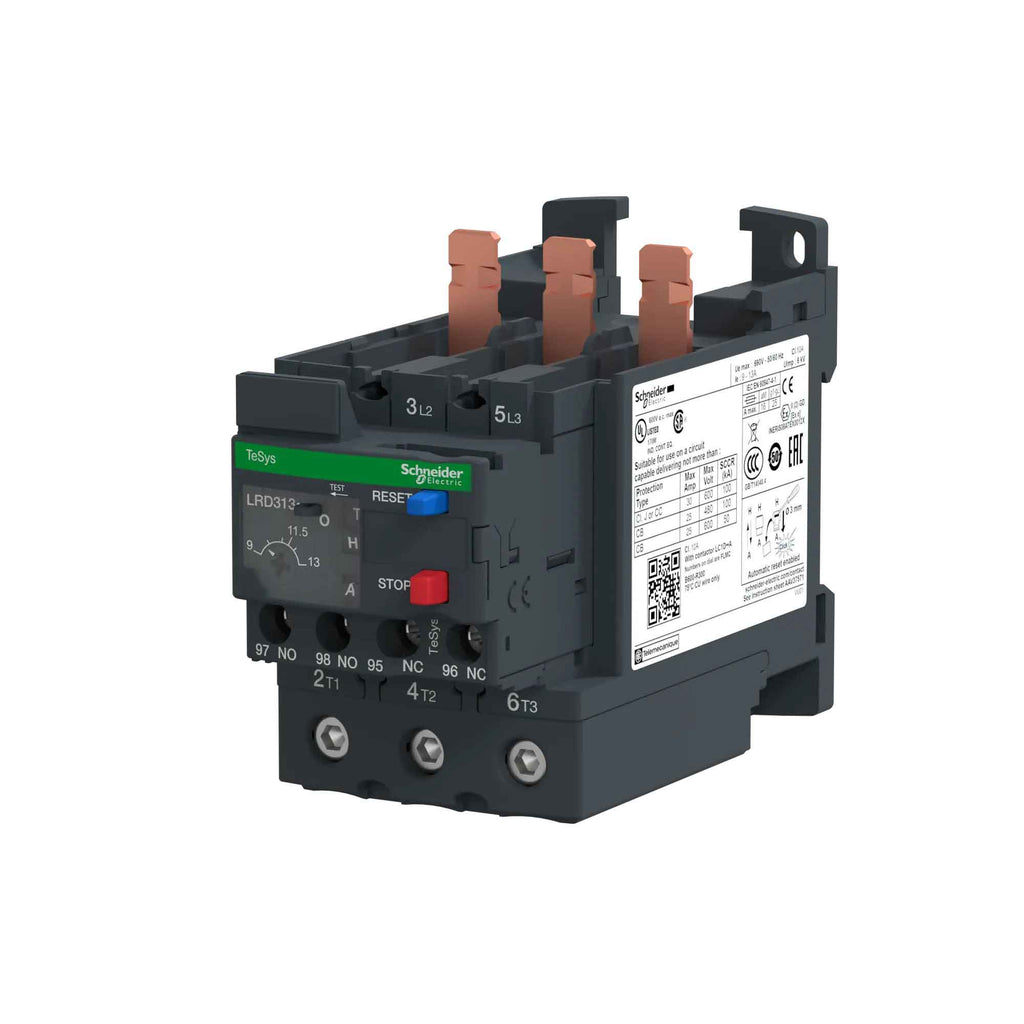

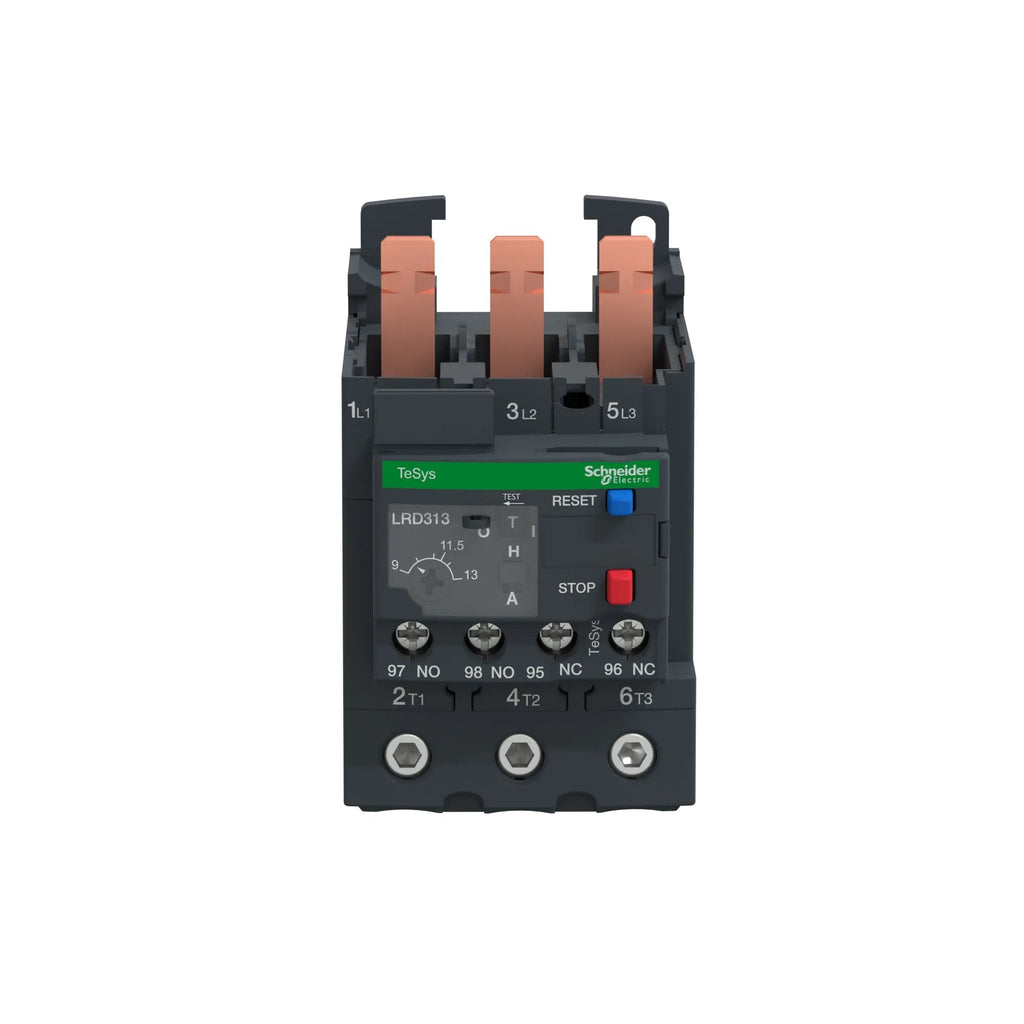

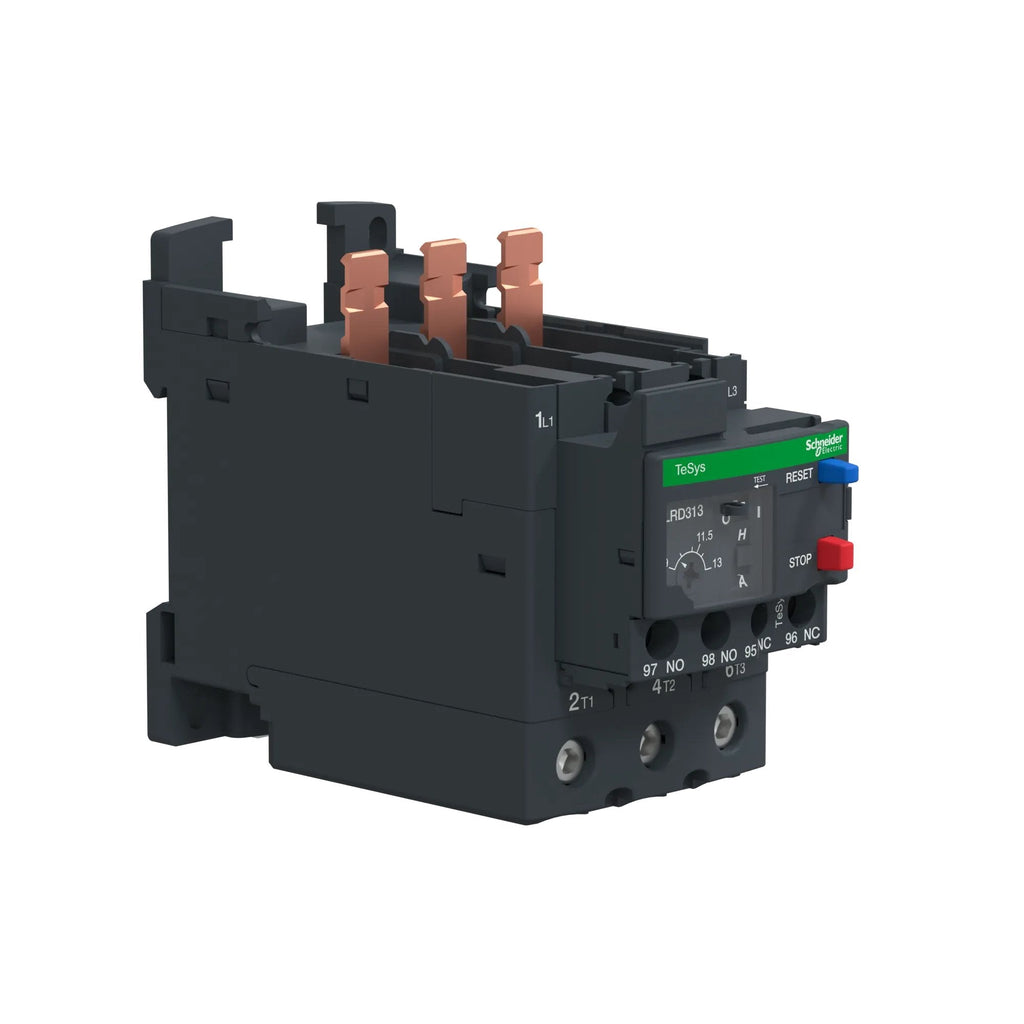

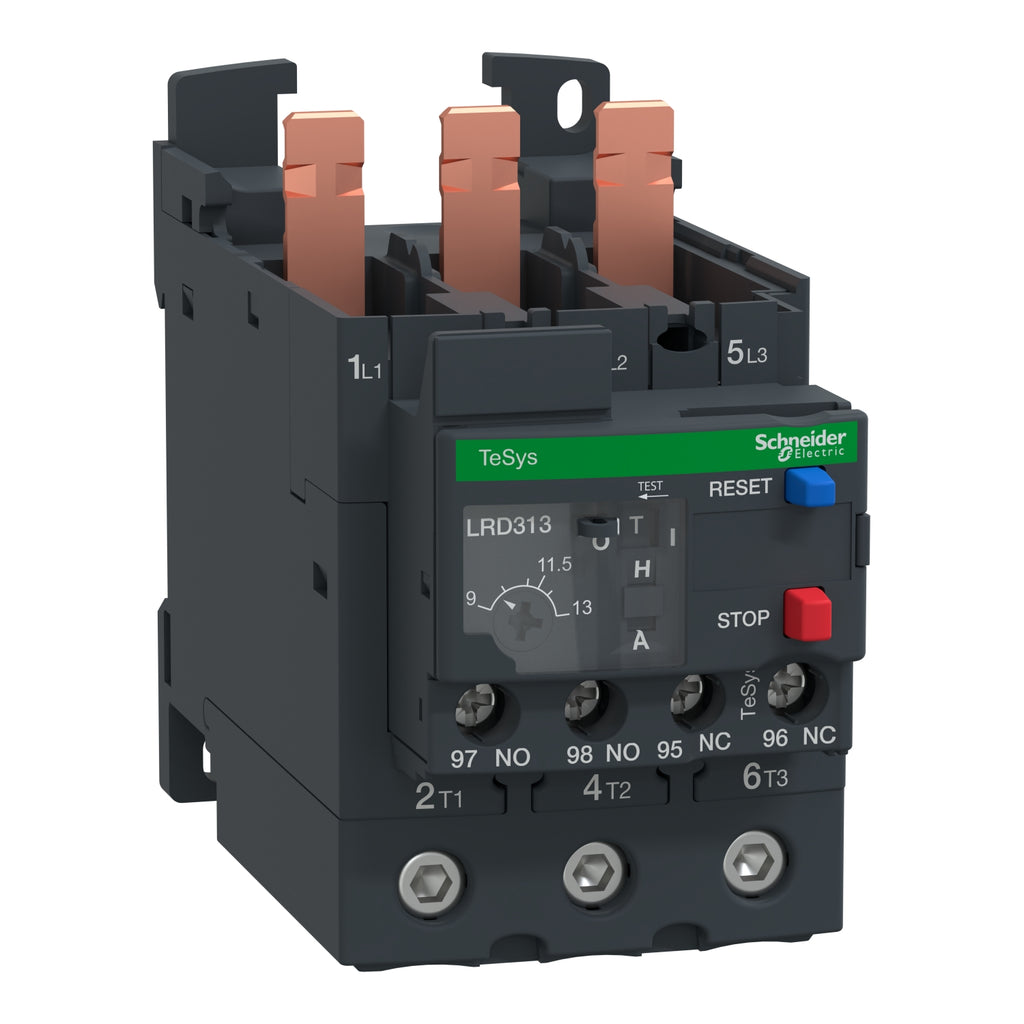

LRD313 is a Telemecanique thermal overload relay designed for reliable protection of 3-phase motors against overloads, phase failure, and prolonged starting times. This relay features an adjustable current range of 9-13A, Everlink power terminals for secure connections, and manual reset capability. The LRD313 is part of the TeSys LRD series, offering robust performance for industrial motor control applications. It includes 1NO and 1NC auxiliary contacts for control circuit signaling, a current adjustment dial for precise setting, and a manual reset button for quick recovery after an overload trip. The relay is designed for direct attachment mounting and features screw-type main circuit connections.

• Adjustable current range: 9A - 13A
• Rated voltage: 690V AC
• Number of poles: 3

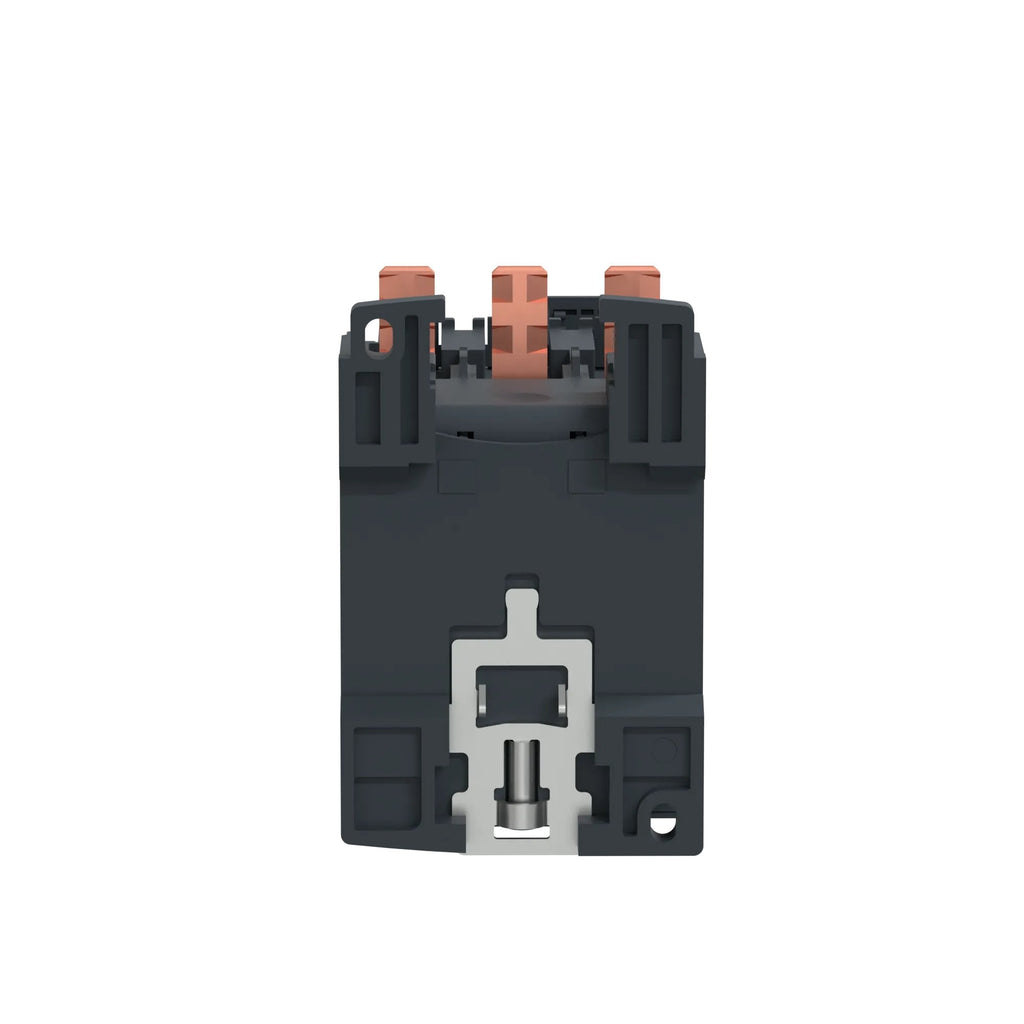

• Mounting type: Direct attachment/single positioning
• Interrupt rating: Class 10A
• Series/Frame: TeSys LRD
• Trip unit: Thermal, Class 10A
• Control contacts: 1NO, 1NC
• Reset function: Manual push-button
• Connection type: Screw terminals
• Protection type: Overload, phase f(more...)


  Specifications

  • Part Number: LRD313
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 13
  • Amperage Minimum : 9
  • Compatible Frames : WPS,WPH,WPF,WPX



  Product Data

  • UPC : 785901811527
  • GTIN : 03389119215459
  • Country of Origin : France
  • Dimensions : 2.8 in (70 mm) x 2.2 in (55 mm) x 4.8 in (123 mm) (Height x Width x Depth)
  • Weight : 0.877
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
