LRD14L - Schneider Electric 7-10A Thermal Overload Relay Class 20 Motor Control

LRD14L

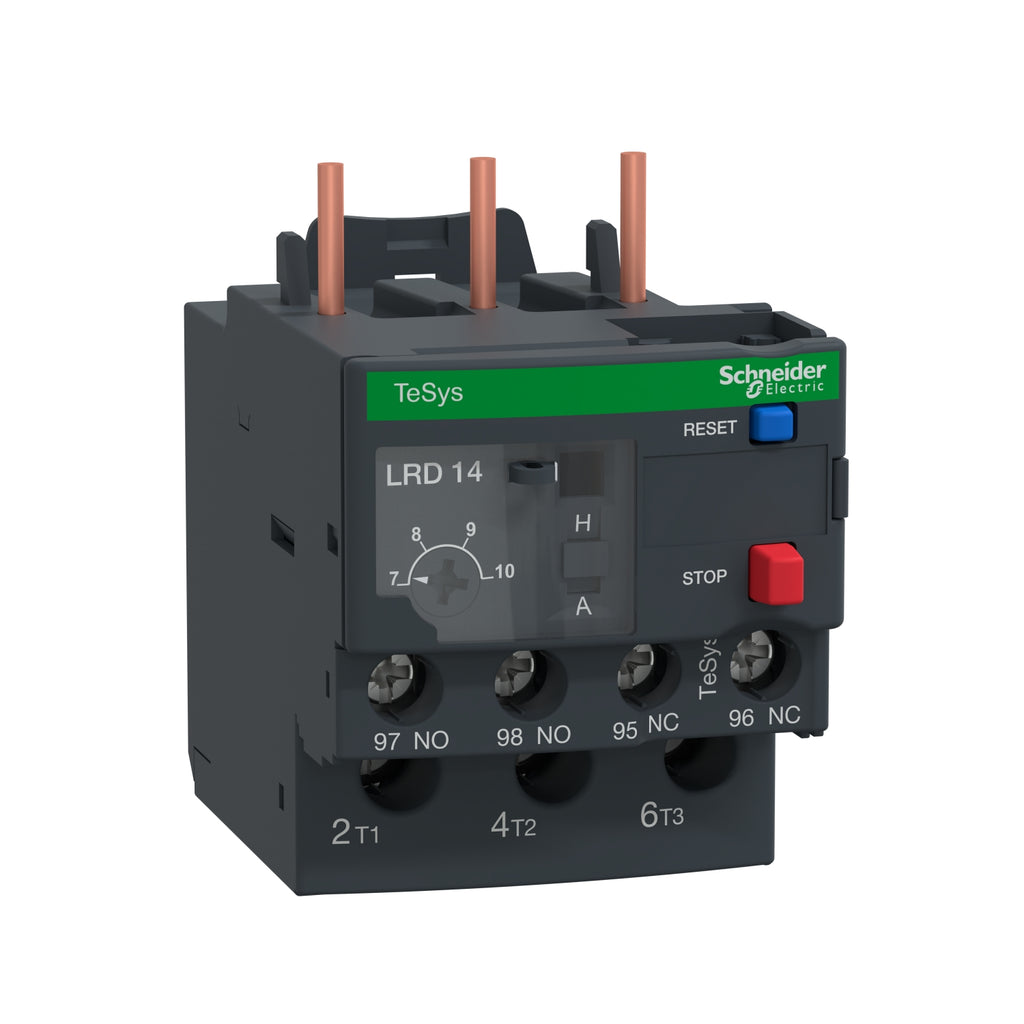

LRD14L is a Schneider Electric thermal overload relay designed for motor control applications with a 7-10 ampere range and Class 20 trip unit.This overload relay provides reliable motor protection with a tripping current set between 7 and 10 amps, suitable for industrial motor drives. It features a Class 20 trip characteristic, a control circuit rated for 600 V, and is compliant with IEC 60947-4-1 standards. The relay operates within a temperature range of -20 to 60 ¡C without derating and includes manual stop and reset push-buttons for easy operation.

Key Specifications
• Amperage Range: 7 to 10 A
• Trip Class: 20
• Voltage Rating: Power circuit 600 V
• Control Circuit Voltage: Up to 600 V
• Operating Temperature: -20 to 60 ¡C
• Mounting Type: Panel or contactor mounting
• Interrupt Rating: 6 kV
• Standards: IEC 60947-4-1, CSA certified
• Reset Type: Manual push-button reset
• Manufacturer: Schneider Electric
At Essential Parts, we offer fast shipping, lowest price, and expert support

Specifications

• Part Number: LRD14L
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)



Product Data

• UPC : 60648060959
• GTIN : 03606480609596
• Country of Origin : Thailand
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (Height x Width x Depth)
• Weight : 0.395
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
